RN75L-SDTEK3W (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988
Engine 22REC
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

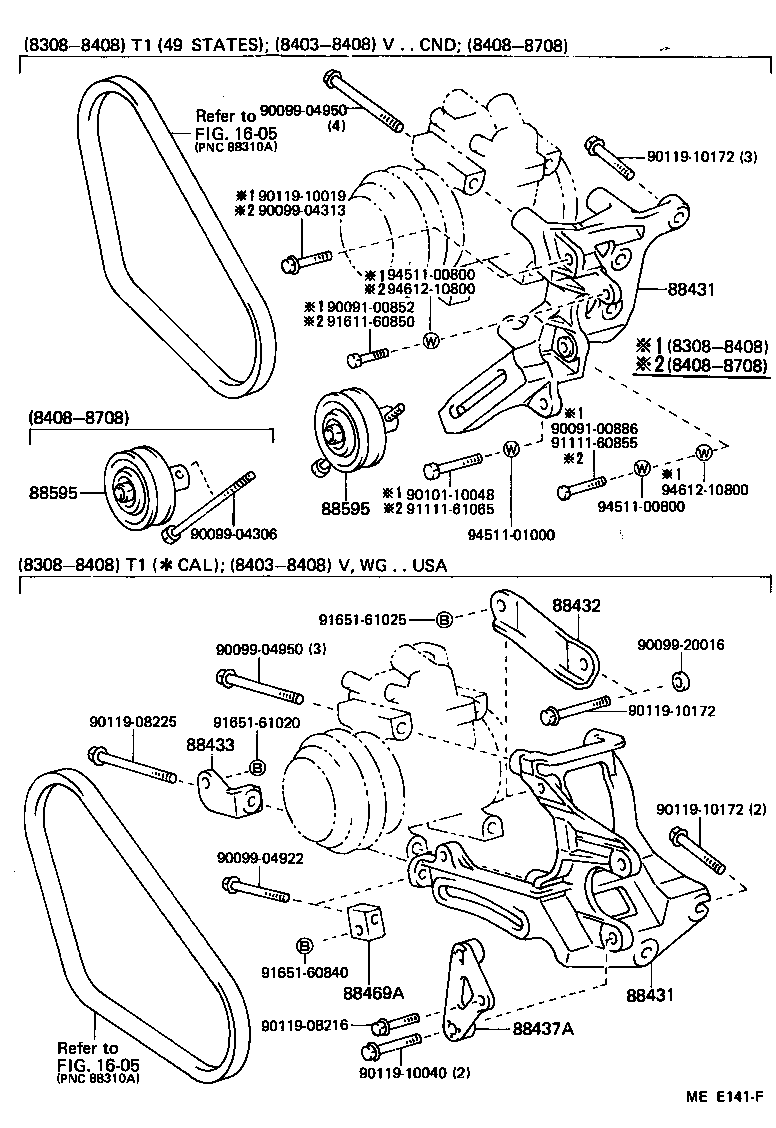

(8308-8708)LN5#,RN6#,7#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88432 88433 88437A 88469A 88595 88595 9009100852 9009100886 9009904306 9009904313 9009904922 9009904950 9009904950 9009920016 9010110048 9011908216 9011908225 9011910019 9011910040 9011910172 9011910172 9011910172 9111160855 9111161065 9161160850 9165160840 9165161020 9165161025 9451100800 9451100800 9451101000 9461210800 9461210800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35090

RN5#,6#,7#..T1..(EFI,TBO)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35090

RN5#,6#,7#..T1..(EFI,TBO)

 1
Common parts
90091-00852
90091-00886
90099-04306
90099-04313
90099-04922
90099-04950
90099-20016
90101-10048
90119-08216
90119-08225
90119-10019
90119-10040
90119-10172
91111-60855
91111-61065
91611-60850
91651-60840
91651-61020
91651-61025
94511-00800
94511-01000
94612-10800
Linked diagrams
1605

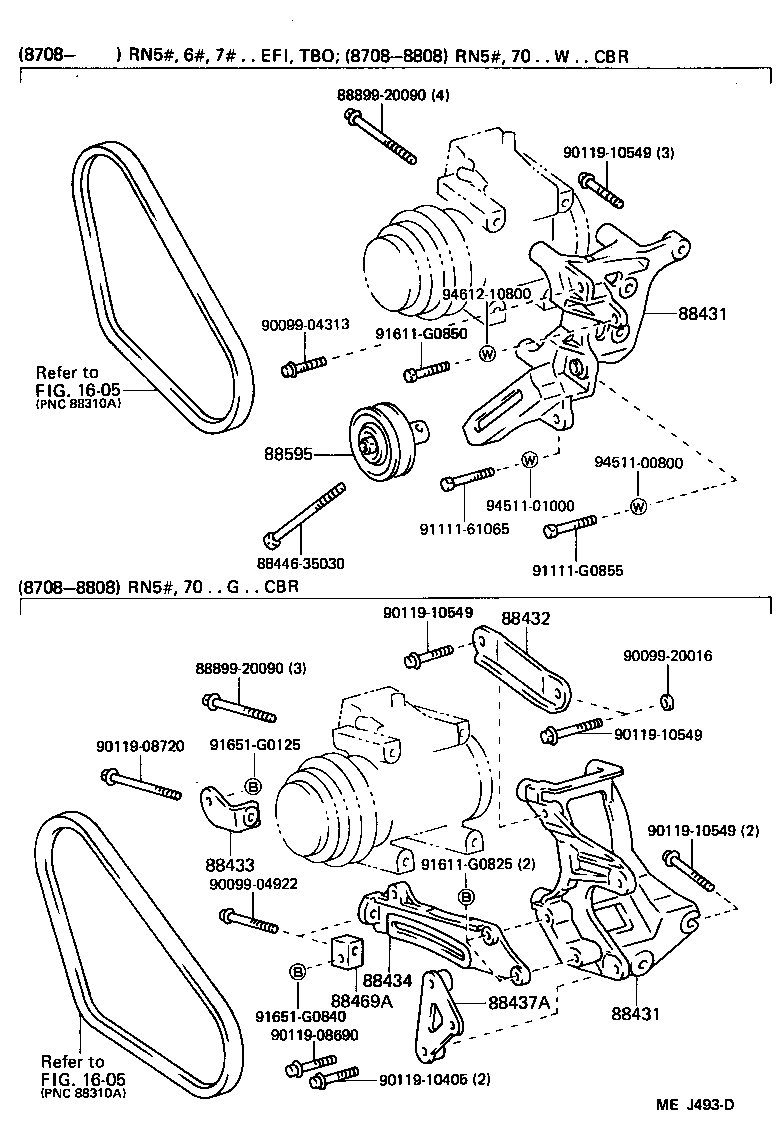

(8708- )RN6#,7#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88432 88433 88434 88437A 8844635030 88469A 88595 8889920090 8889920090 9009904313 9009904922 9009920016 9011908690 9011908720 9011910405 9011910549 9011910549 9011910549 9011910549 9111161065 91111G0855 91611G0825 91611G0850 91651G0125 91651G0840 9451100800 9451101000 9461210800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35090

RN5#,6#,7#..T1..(EFI,TBO)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35090

RN5#,6#,7#..T1..(EFI,TBO)

 1
Common parts
88446-35030
88899-20090
90099-04313
90099-04922
90099-20016
90119-08690
90119-08720
90119-10405
90119-10549
91111-61065
91111-G0855
91611-G0825
91611-G0850
91651-G0125
91651-G0840
94511-00800
94511-01000
94612-10800
Linked diagrams
1605
