RN75L-SDTEK3W (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988
Engine 22REC
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)RCB

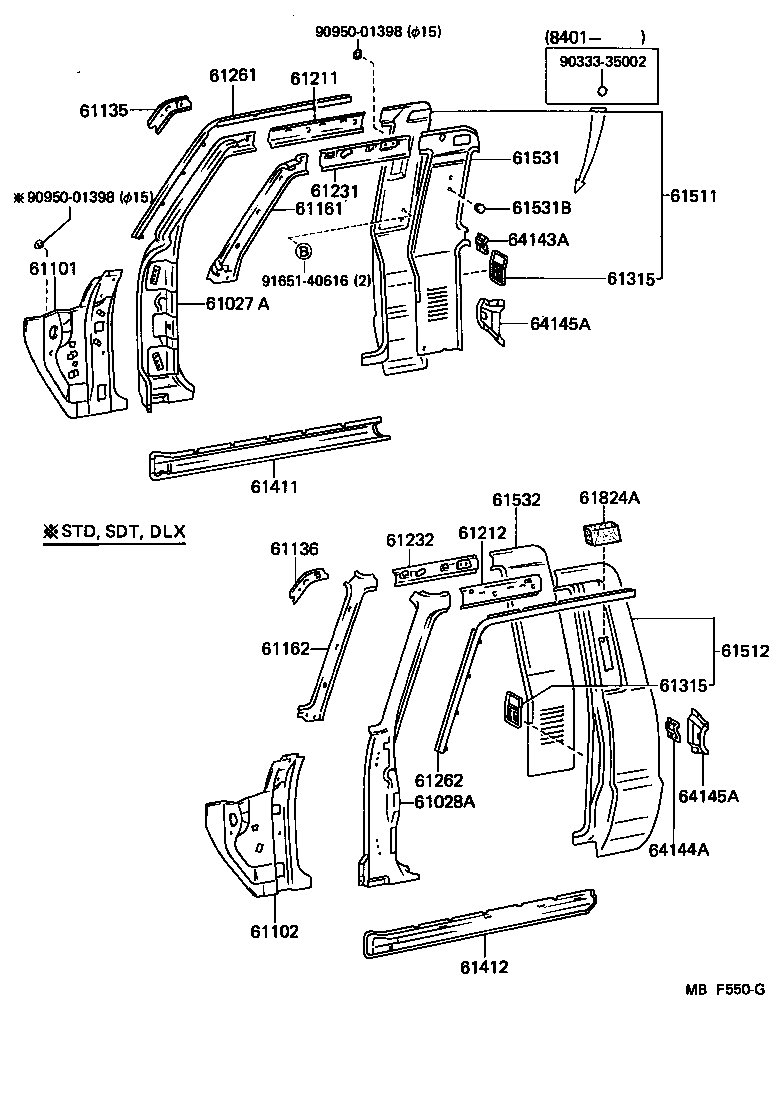

Click highlighted areas on diagram

diagram 61027A 61028A 61101 61102 61135 61136 61161 61162 61211 61212 61231 61232 61261 61262 61315 61315 61411 61412 61511 61512 61531 61531B 61532 61824A 64143A 64144A 64145A 64145A 9033335002 9095001398 9095001398 9165140616
Part # Description Qty Price
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-89108

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-89108

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 1
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-89131

RN55,6#,75..EFI,TBO

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-89125

LN5#,6#,RN5#,6#,7#

 1
61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61135-89106

LN5#,6#,RN5#,6#,7#,VZN6#

 1
61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61136-89106

LN5#,6#,RN5#,6#,7#,VZN6#

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-89107

LN5#,6#,RN5#,6#,7#,VZN6#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-89107

LN5#,6#,RN5#,6#,7#,VZN6#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-89105

LN5#,6#,RN5#,6#,7#,VZN6#

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-89105

LN5#,6#,RN5#,6#,7#,VZN6#

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-89109

LN5#,6#,RN5#,6#,7#,VZN6#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-89109

LN5#,6#,RN5#,6#,7#,VZN6#

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-89104

LN5#,6#,RN5#,6#,7#,VZN6#..T1

RH

 1
61309-89103

LN5#,6#,RN5#,6#,7#,VZN6#..T1

LH

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-89104

LN5#,6#,RN5#,6#,7#,VZN6#..T1

RH

 1
61309-89103

LN5#,6#,RN5#,6#,7#,VZN6#..T1

LH

 1
61411 - PANEL, ROCKER, OUTER RH
61411-89105

LN5#,6#,RN5#,6#,7#,VZN6#..DLX,STD

 1
61412 - PANEL, ROCKER, OUTER LH
61412-89105

LN5#,6#,RN5#,6#,7#,VZN6#..DLX,STD

 1
61511 - PILLAR, QUARTER LOCK, RH
61501-89106

LN56,RN5#,6#,75,VZN6#..RCB

 1
61512 - PILLAR, QUARTER LOCK, LH
61502-89107

LN56,RN5#,6#,75,VZN6#..RCB

 1
61531 - PANEL, BACK CORNER, INNER RH
61531-89113

LN5#,65,RN5#,6#,75,VZN6#..RCB

 1
61532 - PANEL, BACK CORNER, INNER LH
61532-89113

LN5#,65,RN5#,6#,75,VZN6#..RCB

 1
64145A - GUSSET, UPPER BACK PANEL REINFORCEMENT
64145-89101

LN5#,65,RN5#,6#,75,VZN6#..RCB

 2
64145A - GUSSET, UPPER BACK PANEL REINFORCEMENT
64145-89101

LN5#,65,RN5#,6#,75,VZN6#..RCB

 2
Common parts
90333-35002
90950-01398
91651-40616
