RN66L-PGCZA3 (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1986
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8608)

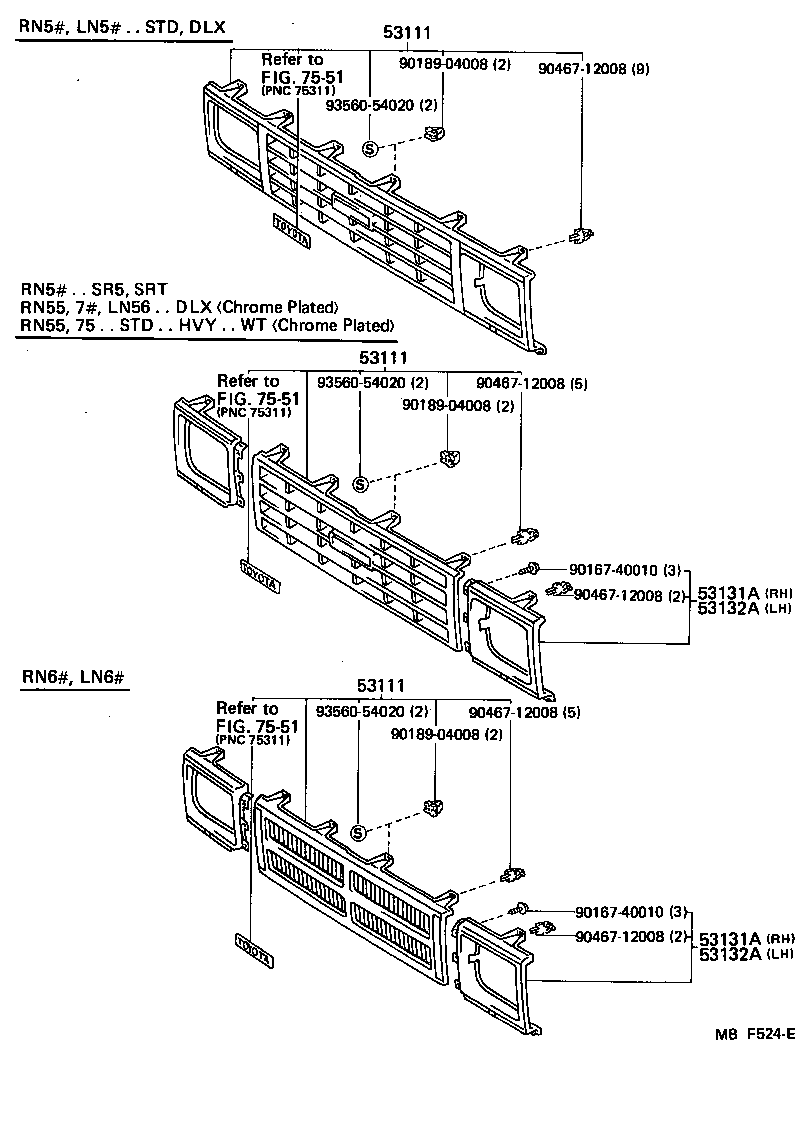

Click highlighted areas on diagram

diagram 53111 53111 53111 53131A 53131A 53132A 53132A 7551 7551 7551 9016740010 9016740010 9018904008 9018904008 9018904008 9046712008 9046712008 9046712008 9046712008 9046712008 9356054020 9356054020 9356054020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-39095

LN6#,RN6#..DLX,SR5,SRT

CHROME PLATED

 1
53111-39085

RN6#..SR5,SRT

 1
53111 - GRILLE, RADIATOR
53111-39095

LN6#,RN6#..DLX,SR5,SRT

CHROME PLATED

 1
53111-39085

RN6#..SR5,SRT

 1
53111 - GRILLE, RADIATOR
53111-39095

LN6#,RN6#..DLX,SR5,SRT

CHROME PLATED

 1
53111-39085

RN6#..SR5,SRT

 1
53131A - DOOR, HEADLAMP, RH
53131-39165

LN56,6#,RN5#,6#,7#..DLX,SR5,SRT

CHROME PLATED

 1
53131-39195

RN5#,6#..SR5,SRT

 1
53131A - DOOR, HEADLAMP, RH
53131-39165

LN56,6#,RN5#,6#,7#..DLX,SR5,SRT

CHROME PLATED

 1
53131-39195

RN5#,6#..SR5,SRT

 1
53132A - DOOR, HEADLAMP, LH
53132-39165

LN56,6#,RN5#,6#,7#..DLX,SR5,SRT

CHROME PLATED

 1
53132-39195

RN5#,6#..SR5,SRT

 1
53132A - DOOR, HEADLAMP, LH
53132-39165

LN56,6#,RN5#,6#,7#..DLX,SR5,SRT

CHROME PLATED

 1
53132-39195

RN5#,6#..SR5,SRT

 1
Common parts
90167-40010
90189-04008
90467-12008
93560-54020
Linked diagrams
7551
