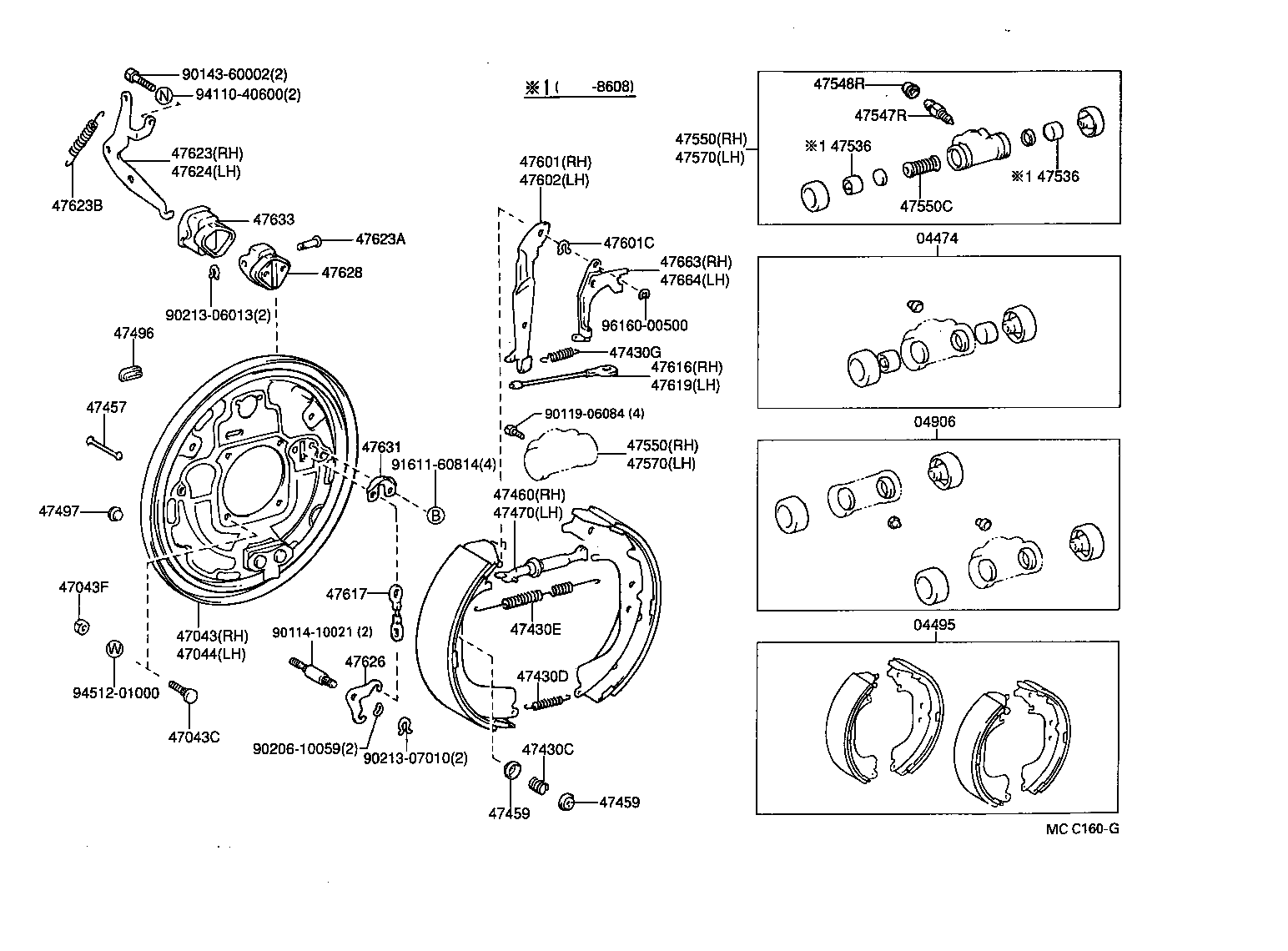

RN66L-PGCZA3 (1985)
Toyota 4-Runner Truck
(8508- )LN66,RN6#,VZN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-35090 |
LN65,RN6# |
1 | ||
| 04495-35110 |
LN66,RN6# |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-30040 |
LN65,RN6# |
1 | ||
| 04906-35090 |
LN66,RN6# |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-35090 |
LN65,RN6# |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10016 |
LN65,RN6# *10-1.25PX41-18,*10-1.25PX41 |
4 | ||
| 90114-10002 |
LN5#,6#,RN5#,6#,70,VZN6#..ST *10-1.25PX37-18.5,*10-1.25PX35.5 |
2 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10191 |
LN65,RN6# |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-35080 |
LN65,RN6# |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20604 |
LN65,RN6# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12412 |
LN65,RN6# |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-16343 |
LN65,RN6# |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90508-20261 |
LN65,RN6# RH |
1 | ||
| 90508-20262 |
LN65,RN6# LH |
1 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LN65,RN6# |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LN5#,6#,RN5#,6#,7#,VZN6# |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LN5#,6#,RN5#,6#,7#,VZN6# |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47405-30020 |
LN65,RN6# |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47406-30020 |
LN65,RN6# |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-35040 |
LN65,RN6# |
2 | ||
| 47497 - PLUG, HOLE NO.2(FOR REAR BRAKE) | ||||
| 47492-28010 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-30110 |
LN65,RN6# |
4 | ||
| 47051-35010 |
LN66,RN6# |
4 | ||
| 47051-35011 |
LN66,RN6# |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-30110 |
LN65,RN6# |
4 | ||
| 47051-35010 |
LN66,RN6# |
4 | ||
| 47051-35011 |
LN66,RN6# |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-26010 |
LN65,RN6# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-29305 |
LN65,RN6# |
1 | ||
| 47550-35151 |
LN66,RN6# |
1 | ||
| 47550-35150 |
LN66,RN6# |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-29305 |
LN65,RN6# |
1 | ||
| 47550-35151 |
LN66,RN6# |
1 | ||
| 47550-35150 |
LN66,RN6# |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-12010 |
LN65,RN6# |
2 | ||
| 47509-20010 |
LN56,66,RN5#,6#,75 |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-35151 |
LN66,RN6# |
2 | ||
| 47550-29305 |
LN65,RN6# |
1 | ||
| 47550-35150 |
LN66,RN6# |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-35151 |
LN66,RN6# |
2 | ||
| 47550-29305 |
LN65,RN6# |
1 | ||
| 47550-35150 |
LN66,RN6# |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-35020 |
LN65,RN6# |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LN5#,6#,RN5#,6#,7#,VZN6# T=1.6 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-35020 |
LN65,RN6# |
1 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-35010 |
LN65,RN6# |
1 | ||
| 47617 - WIRE, PARKING BRAKE, NO.2 | ||||
| 47617-35010 |
LN6#,RN6#,VZN6# |
2 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-35010 |
LN65,RN6# |
1 | ||
| 47623 - CRANK, PARKING BRAKE BELL, NO.1 | ||||
| 47624-35011 |
LN65,RN6# |
1 | ||
| 47623A - PIN(FOR PARKING BRAKE BELL CRANK) | ||||
| 90249-08068 |
LN6#,RN6#,VZN6# |
2 | ||
| 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) | ||||
| 90506-20019 |
LN6#,RN6#,VZN6# |
2 | ||
| 47624 - CRANK, PARKING BRAKE BELL, NO.2 | ||||
| 47625-35011 |
LN65,RN6# |
1 | ||
| 47626 - CRANK, PARKING BRAKE BELL, NO.3 | ||||
| 47626-35010 |
LN6#,RN6#,VZN6# |
2 | ||
| 47628 - BRACKET, REAR BRAKE BELLCRANK | ||||
| 47628-35020 |
LN6#,RN6#,VZN6# |
2 | ||
| 47633 - BOOT, PARKING BRAKE BELLCRANK | ||||
| 47633-35020 |
LN6#,RN6#,VZN6# |
2 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47643-20011 |
LN65,RN6# |
2 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47643-20011 |
LN65,RN6# |
2 | ||
| Common parts | ||||
| 90114-10021 | ||||
| 90119-06084 | ||||
| 90143-60002 | ||||
| 90206-10059 | ||||
| 90213-06013 | ||||
| 90213-07010 | ||||
| 91611-60814 | ||||
| 94110-40600 | ||||
| 94512-01000 | ||||
| 96160-00500 | ||||
