RN66L-PDEA (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

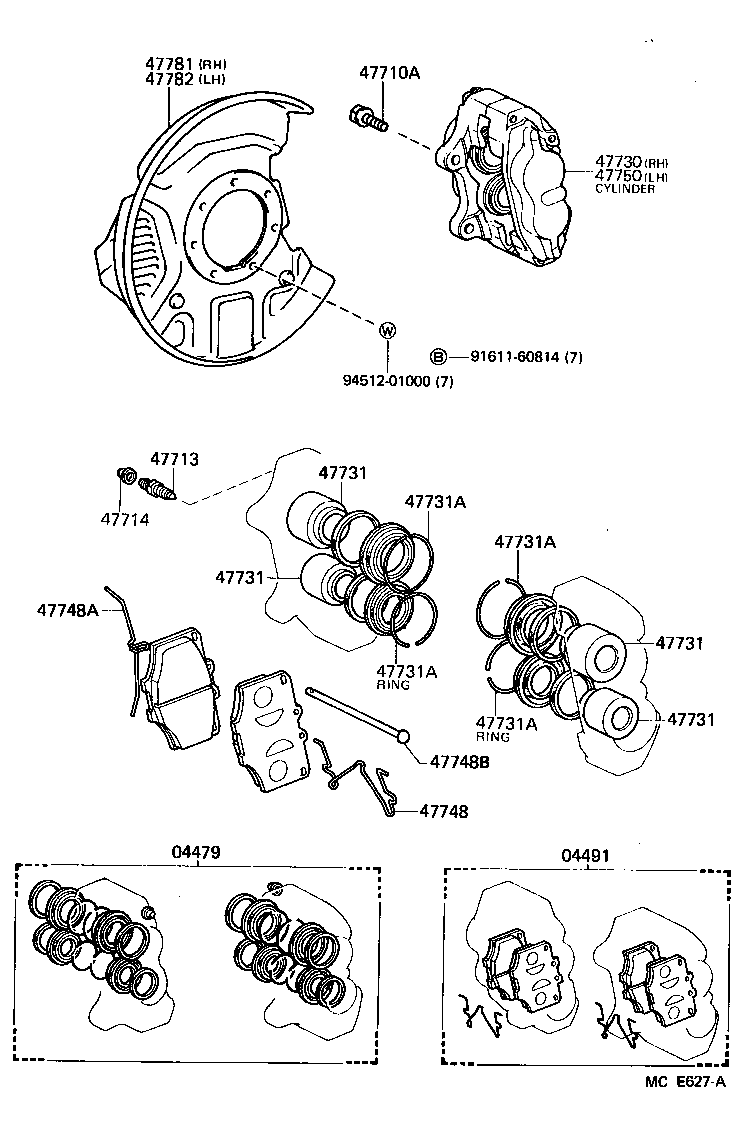

ILLUST NO. 1 OF 2(8508- )LN66,RN6#

Click highlighted areas on diagram

diagram 04479 04491 47710A 47713 47714 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47748 47748A 47748B 47750 47781 47782 9161160814 9451201000
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30030

LN6#,RN6#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-35080

LN65,RN6#

 1
04491-60010

LN66,RN6#

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12491

LN65,RN6#

*12-1.25PX42-24

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

LN6#,RN6#,VZN6#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LN5#,6#,RN5#,6#,7#,VZN6#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35010

LN65,RN6#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN6#,RN6#

OD=42.82

 4
47732-30010

LN65,RN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN6#,RN6#

OD=42.82

 4
47732-30010

LN65,RN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN6#,RN6#

OD=42.82

 4
47732-30010

LN65,RN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN6#,RN6#

OD=42.82

 4
47732-30010

LN65,RN6#

OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN6#,RN6#,VZN6#

PISTON OD=42.82

 4
90522-40043

LN65,RN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN6#,RN6#,VZN6#

PISTON OD=42.82

 4
90522-40043

LN65,RN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN6#,RN6#,VZN6#

PISTON OD=42.82

 4
90522-40043

LN65,RN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN6#,RN6#,VZN6#

PISTON OD=42.82

 4
90522-40043

LN65,RN6#

PISTON OD=33.93

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-30013

LN65,RN6#

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12003

LN6#,RN6#

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06006

LN65,RN6#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-35010

LN65,RN6#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-35020

LN65,RN6#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-35020

LN65,RN6#

 1
Common parts
91611-60814
94512-01000
