RN66L-PDEA (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LN66,RN6#,VZN6#

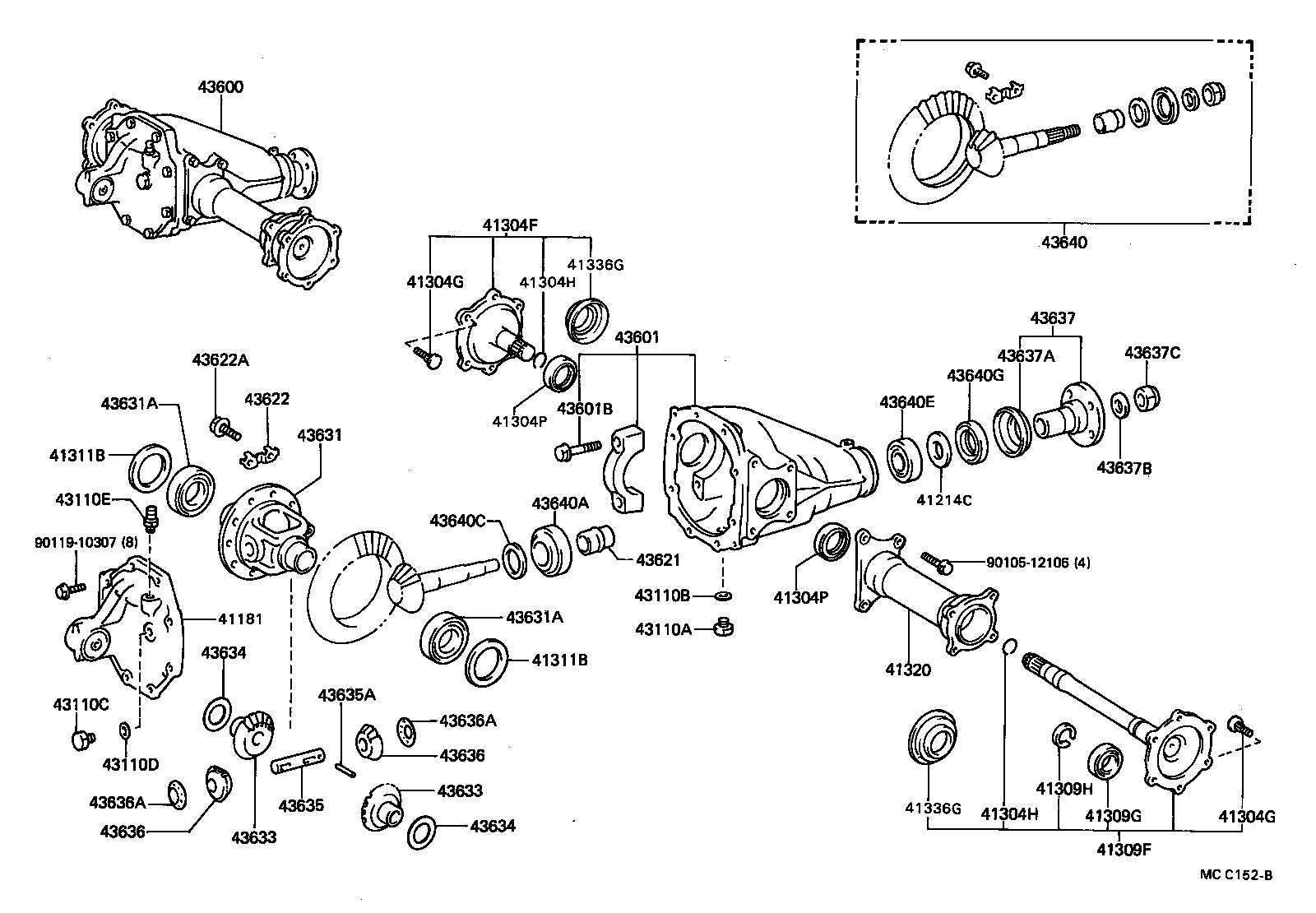

Click highlighted areas on diagram

diagram 41181 41214C 41304F 41304G 41304G 41304H 41304H 41304P 41304P 41309F 41309G 41309H 41311B 41311B 41320 41336G 41336G 43110A 43110B 43110C 43110D 43110E 43600 43601 43601B 43621 43622 43622A 43631 43631A 43631A 43633 43633 43634 43634 43635 43635A 43636 43636 43636A 43636A 43637 43637A 43637B 43637C 43640 43640A 43640C 43640E 43640G 9010512106 9011910307
Part # Description Qty Price
41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41214-26010

LN65,RN6#

 1
43110A - PLUG SUB-ASSY, DRAIN
90341-18057

LN6#,RN6#,VZN6#

 1
43110B - GASKET, DRAIN
12157-10010

LN6#,RN6#,VZN6#

 1
43110C - PLUG (FOR FRONT AXLE HOUSING)
90341-18049

LN65,RN6#

 1
43110D - GASKET (FOR FRONT AXLE HOUSING PLUG)
12157-10010

LN6#,RN6#,VZN6#

 1
43110E - PLUG, BREATHER (FOR FRONT AXLE HOUSING)
90930-03031

LN6#,RN6#,VZN6#

 1
43600 - CARRIER ASSY, FRONT AXLE
41110-35200

RN6#

R=41:10=4.100

 1
43601 - CARRIER SUB-ASSY, FRONT AXLE
41101-35030

LN65,RN6#

 1
43601B - BOLT, FRONT AXLE DIFFERENTIAL BEARING CAP
90105-12053

LN6#,RN6#,VZN6#

 4
43621 - SPACER, FRONT AXLE DIFFERENTIAL DRIVE PINION BEARING
41231-40010

LN65,RN6#

 1
43622 - PLATE, FRONT AXLE DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-35020

LN65,RN6#

 5
43622A - BOLT (FOR FRONT AXLE DIFFERENTIAL RING GEAR SET PLATE)
90101-11353

LN6#,RN6#,VZN6#

 10
43631 - CASE, FRONT AXLE DIFFERENTIAL
41311-22050

LN66,RN6#,VZN6#

 1
41311-40020

LN65,RN6#

 1
43631A - BEARING, FRONT AXLE DIFFERENTIAL
90368-45002

LN66,RN6#,VZN6#

ID=45

 2
90368-45066

LN65,RN6#

 2
43631A - BEARING, FRONT AXLE DIFFERENTIAL
90368-45002

LN66,RN6#,VZN6#

ID=45

 2
90368-45066

LN65,RN6#

 2
43633 - GEAR, FRONT AXLE DIFFERENTIAL SIDE
41331-35010

LN65,RN6#

 2
43633 - GEAR, FRONT AXLE DIFFERENTIAL SIDE
41331-35010

LN65,RN6#

 2
43634 - WASHER, FRONT AXLE DIFFERENTIAL SIDE GEAR THRUST
41363-40021

LN65,RN6#

T=1.8

 2
41361-40021

LN65,RN6#

T=1.6

 2
41362-40021

LN65,RN6#

T=1.7

 2
43634 - WASHER, FRONT AXLE DIFFERENTIAL SIDE GEAR THRUST
41363-40021

LN65,RN6#

T=1.8

 2
41361-40021

LN65,RN6#

T=1.6

 2
41362-40021

LN65,RN6#

T=1.7

 2
43635 - SHAFT, FRONT AXLE DIFFERENTIAL PINION
41342-39610

LN65,RN6#

 1
43635A - PIN, FRONT AXLE DIFFERENTIAL PINION SHAFT
90250-06085

LN65,RN6#

 1
43636 - PINION, FRONT AXLE DIFFERENTIAL
41341-39020

LN65,RN6#

 2
43636 - PINION, FRONT AXLE DIFFERENTIAL
41341-39020

LN65,RN6#

 2
43636A - WASHER, FRONT AXLE DIFFERENTIAL PINION THRUST
41351-30051

LN65,RN6#

 2
43636A - WASHER, FRONT AXLE DIFFERENTIAL PINION THRUST
41351-30051

LN65,RN6#

 2
43637 - FLANGE, FRONT AXLE DRIVE PINION, W/DEFLECTOR
41204-35040

LN65,RN6#

 1
43637A - DEFLECTOR, DUST (FOR FRONT AXLE)
37341-30010

LN65,RN6#

 1
43637B - WASHER, PLATE (FOR FRONT AXLE DRIVE PINION)
90201-20005

LN65,RN6#

 1
43637C - NUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
90179-20001

LN65,RN6#

 1
43640 - FINAL GEAR SET, FRONT AXLE DIFFERENTIAL
41201-39535

RN6#

N=41:10

 1
43640A - BEARING, FRONT AXLE DRIVE PINION, FRONT
97609-32307

LN65,RN6#

 1
43640C - SPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST
90201-35498

LN65,RN6#

OD=47,T=1.73,T=1.73

 1
90201-35501

LN65,RN6#

OD=47,T=1.82,T=1.82

 1
90201-35500

LN65,RN6#

OD=47,T=1.79,T=1.79

 1
90201-35497

LN65,RN6#

OD=47,T=1.70,T=1.70

 1
90201-35504

LN65,RN6#

OD=47,T=1.91,T=1.91

 1
90201-35499

LN65,RN6#

OD=47,T=1.76,T=1.76

 1
90201-35506

LN65,RN6#

OD=47,T=1.97,T=1.97

 1
90201-35502

LN65,RN6#

OD=47,T=1.85,T=1.85

 1
90201-35508

LN65,RN6#

OD=47,T=2.03,T=2.03

 1
90201-35513

LN65,RN6#

OD=47,T=2.18,T=2.18

 1
90201-35503

LN65,RN6#

OD=47,T=1.88,T=1.88

 1
90201-35510

LN65,RN6#

OD=47,T=2.09,T=2.09

 1
90201-35512

LN65,RN6#

OD=47,T=2.15,T=2.15

 1
90201-35518

LN65,RN6#

OD=47,T=2.33,MARK 04,T=2.33

 1
90201-35509

LN65,RN6#

OD=47,T=2.06,T=2.06

 1
90201-35511

LN65,RN6#

OD=47,T=2.12,T=2.12

 1
90201-35507

LN65,RN6#

OD=47,T=2.00,T=2.00

 1
90201-35517

LN65,RN6#

OD=47,T=2.30,MARK 03,T=2.30

 1
90201-35514

LN65,RN6#

OD=47,T=2.21,T=2.21

 1
90201-35515

LN65,RN6#

OD=47,T=2.24,MARK 01,T=2.24

 1
90201-35516

LN65,RN6#

OD=47,T=2.27,MARK 02,T=2.27

 1
90201-35505

LN65,RN6#

OD=47,T=1.94,T=1.94

 1
43640E - BEARING, FRONT AXLE DRIVE PINION, REAR
90366-30008

LN65,RN6#

 1
43640G - SEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
90311-38134

LN6#,RN6#,VZN6#

 1
Common parts
90105-12106
90119-10307
