RN66L-PDCEA3 (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8708)LN5#,6#,RN6#

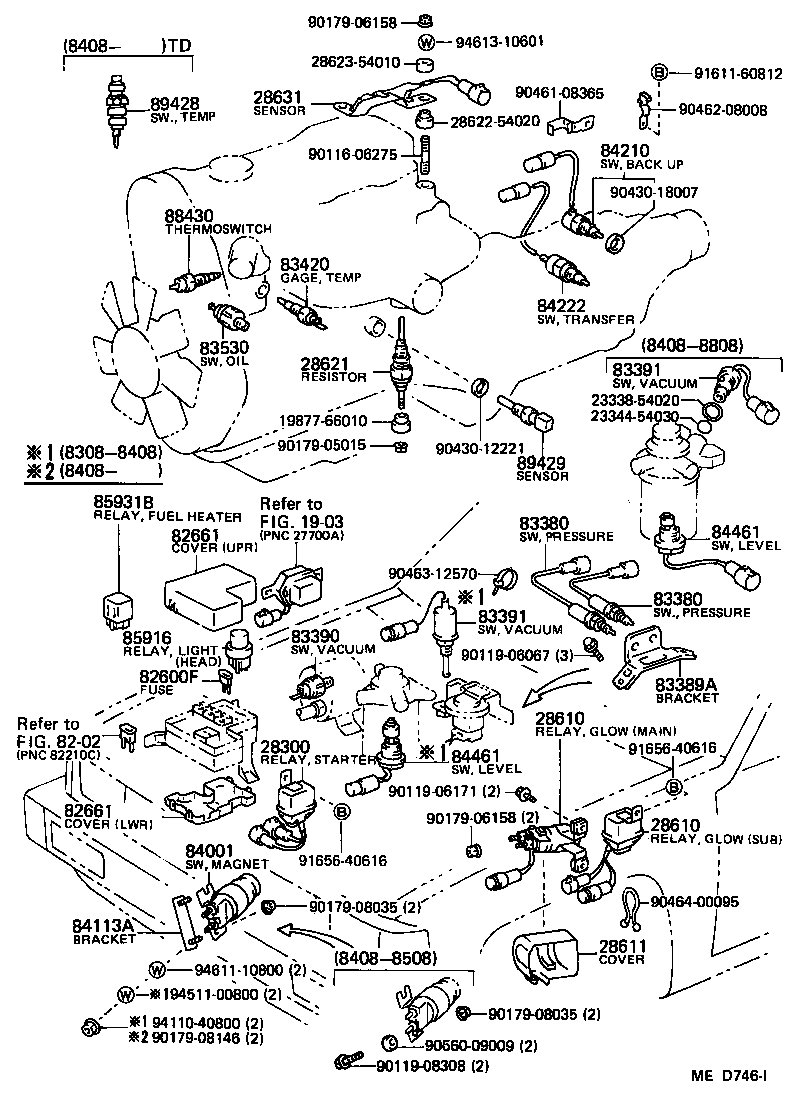

Click highlighted areas on diagram

diagram 1903 1987766010 2333854020 2334454030 28300 28610 28610 28611 28621 2862254020 2862354010 28631 8202 82600F 82661 82661 83380 83380 83389A 83390 83391 83391 83420 83530 84001 84113A 84210 84222 84461 84461 85916 85931B 88430 89428 89429 9011606275 9011906067 9011906171 9011908308 9017905015 9017906158 9017906158 9017908035 9017908035 9017908146 9043012221 9043018007 9046108365 9046208008 9046312570 9046400095 9056009009 9161160812 9165640616 9165640616 9411040800 9451100800 9461110800 9461310601
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09003

LN5#,6#,RN5#,6#,7#,VZN6#

15A,15A

 13
90982-09004

LN5#,6#,RN5#,6#,7#,VZN6#

20A,YELLOW,20A

 1
90982-09002

LN5#,6#,RN5#,6#,7#,VZN6#

10A,10A

 6
90982-09005

LN5#,6#,RN5#,6#,7#,VZN6#

7.5A,7.5A

 7
82661 - COVER, RELAY BLOCK, NO.1
82661-89101

LN5#,65,RN5#,6#

COWL SIDE

 1
82661-89105

RN5#,6#,7#..T1

COWL SIDE

 1
82661-89103

LN5#,6#,RN5#,6#,7#

ENGINE ROOM LWR

 1
82661-89101

LN56,66

COWL SIDE

 1
82661-89110

LN56,66

ENGINE ROOM UPR

 1
82661-89102

LN5#,65,RN5#,6#

ENGINE ROOM UPR

 1
82661-89115

LN56,66,RN5#,6#,7#,VZN6#..T1

COWL SIDE

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-89101

LN5#,65,RN5#,6#

COWL SIDE

 1
82661-89105

RN5#,6#,7#..T1

COWL SIDE

 1
82661-89103

LN5#,6#,RN5#,6#,7#

ENGINE ROOM LWR

 1
82661-89101

LN56,66

COWL SIDE

 1
82661-89110

LN56,66

ENGINE ROOM UPR

 1
82661-89102

LN5#,65,RN5#,6#

ENGINE ROOM UPR

 1
82661-89115

LN56,66,RN5#,6#,7#,VZN6#..T1

COWL SIDE

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30020

LN5#,6#

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LN5#,6#,RN5#,6#,7#,VZN6#

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14010

RN5#,6#..DLX,STD

 1
84001 - SWITCH ASSY, MAGNET
38630-35010

LN65,RN6#..DLX,SR5

 1
84113A - BRACKET, SWITCH, NO.1
38631-35010

LN65,RN6#..DLX,SR5

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-35030

RN55,6#..R

 1
84461 - SWITCH, LEVEL WARNING
84461-35030

LN5#,6#

 1
84461 - SWITCH, LEVEL WARNING
84461-35030

LN5#,6#

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

LN5#,6#,RN5#,6#,7#,VZN6#

TAIL LAMP RELAY

 1
90987-04002

LN5#,6#,RN5#,6#,7#

HEADLAMP RELAY

 1
88430 - THERMOSWITCH ASSY, AIR CONDITIONER
83430-10010

RN6#

 1
89429 - SENSOR, OIL TEMPERATURE
89422-30020

LN5#,6#

 1
Common parts
19877-66010
23338-54020
23344-54030
28622-54020
28623-54010
90116-06275
90119-06067
90119-06171
90119-08308
90179-05015
90179-06158
90179-08035
90179-08146
90430-12221
90430-18007
90461-08365
90462-08008
90463-12570
90464-00095
90560-09009
91611-60812
91656-40616
94110-40800
94511-00800
94611-10800
94613-10601
Linked diagrams
1903
8202
