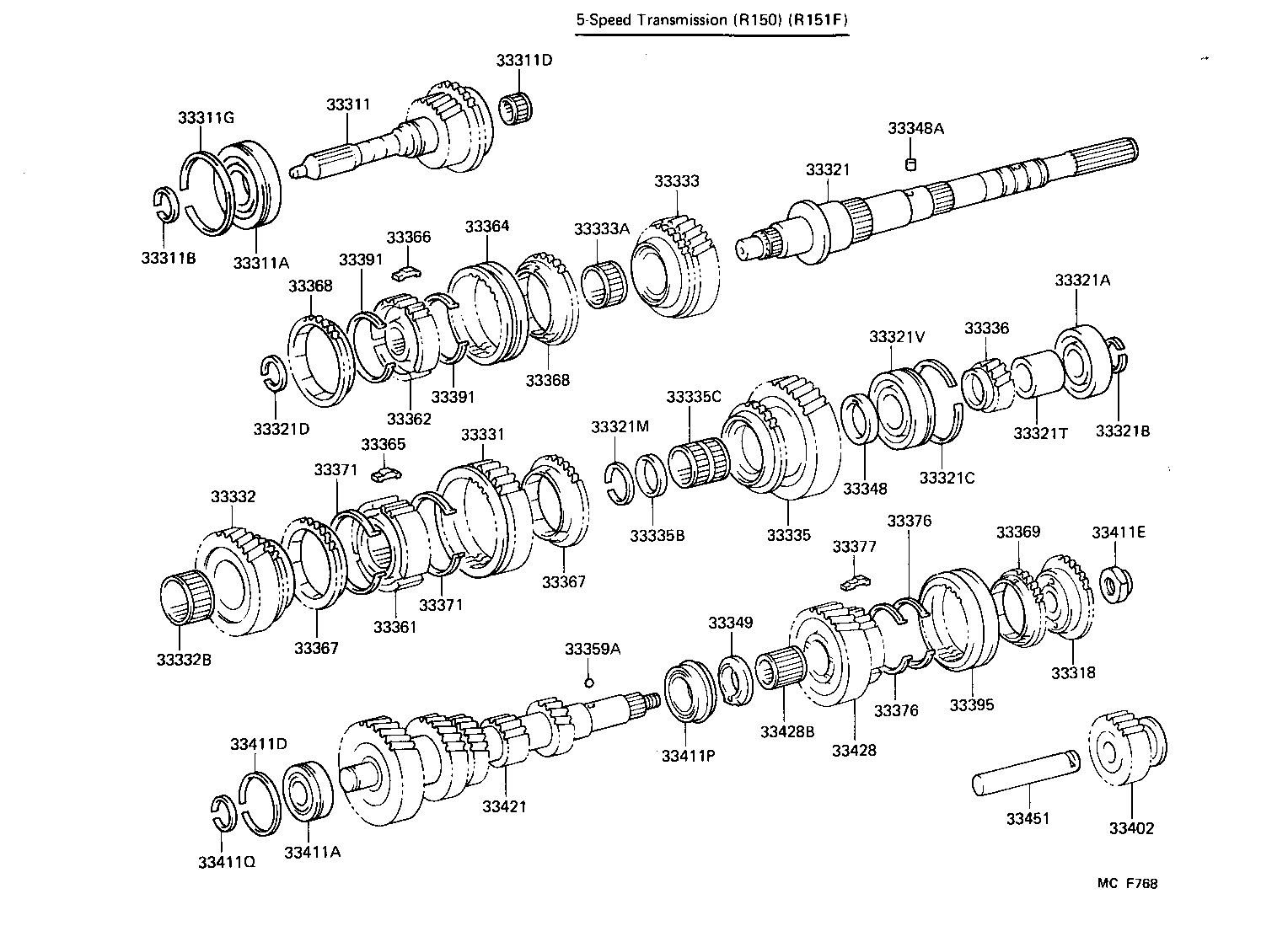

RN66L-MSCEA (1985)
Toyota 4-Runner Truck
(8508- )RN6#..R ; (8711- )VZN6#..R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-35050 |
RN55,6#..R |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-40034 |
RN55,6#..R |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30216 |
LN5#,65,RN5#,6# T=2.15,MARK 2,T=2.15 |
1 | ||
| 90520-30214 |
LN5#,65,RN5#,6# T=2.05,MARK 0,T=2.05 |
1 | ||
| 90520-30218 |
LN5#,65,RN5#,6# T=2.25,MARK 4,T=2.25 |
1 | ||
| 90520-30217 |
LN5#,65,RN5#,6# T=2.20,MARK 3,T=2.20 |
1 | ||
| 90520-30219 |
LN5#,65,RN5#,6# T=2.30,MARK 5,T=2.30 |
1 | ||
| 90520-30215 |
LN5#,65,RN5#,6# T=2.10,MARK 1,T=2.10 |
1 | ||
| 90520-38009 |
RN55,6#..R T=2.15,MARK B,T=2.15 |
1 | ||
| 90520-38011 |
RN55,6#..R T=2.25,MARK D,T=2.25 |
1 | ||
| 90520-38013 |
RN55,6#..R T=2.35,MARK F,T=2.35 |
1 | ||
| 90520-38014 |
RN55,6#..R T=2.40,MARK G,T=2.40 |
1 | ||
| 90520-38012 |
RN55,6#..R T=2.30,MARK E,T=2.30 |
1 | ||
| 90520-38008 |
RN55,6#..R T=2.10,MARK A,T=2.10 |
1 | ||
| 90520-38010 |
RN55,6#..R T=2.20,MARK C,T=2.20 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-25013 |
RN55,6#..R |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-88001 |
RN55,6#..R |
1 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-35020 |
RN55,6#..R |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35140 |
RN6#..R |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-30047 |
RN55,6#..R |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-28037 |
RN55,6#..R T=2.90,MARK F,T=2.90 |
1 | ||
| 90520-28031 |
RN55,6#..R T=2.65,MARK A,T=2.65 |
1 | ||
| 90520-28033 |
RN55,6#..R T=2.75,MARK C,T=2.75 |
1 | ||
| 90520-28032 |
RN55,6#..R T=2.70,MARK B,T=2.70 |
1 | ||
| 90520-28035 |
RN55,6#..R T=2.85,MARK E,T=2.85 |
1 | ||
| 90520-28039 |
RN55,6#..R T=2.95,MARK G,T=2.95 |
1 | ||
| 90520-28034 |
RN55,6#..R T=2.80,MARK D,T=2.80 |
1 | ||
| 90520-28043 |
RN55,6#..R T=3.05,MARK J,T=3.05 |
1 | ||
| 90520-28049 |
RN55,6#..R T=3.30,MARK P,T=3.30 |
1 | ||
| 90520-28045 |
RN55,6#..R T=3.10,MARK K,T=3.10 |
1 | ||
| 90520-28048 |
RN55,6#..R T=3.25,MARK N,T=3.25 |
1 | ||
| 90520-28046 |
RN55,6#..R T=3.15,MARK L,T=3.15 |
1 | ||
| 90520-28052 |
RN55,6#..R T=3.45,MARK S,T=3.45 |
1 | ||
| 90520-28042 |
RN55,6#..R T=3.00,MARK H,T=3.00 |
1 | ||
| 90520-28050 |
RN55,6#..R T=3.35,MARK Q,T=3.35 |
1 | ||
| 90520-28051 |
RN55,6#..R T=3.40,MARK R,T=3.40 |
1 | ||
| 90520-28047 |
RN55,6#..R T=3.20,MARK M,T=3.20 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-81001 |
RN55,6#..R T=1.65,ID=81.4 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30016 |
RN55,6#..R T=1.90,MARK C,T=1.90 |
1 | ||
| 90520-30014 |
RN55,6#..R T=1.80,MARK A,T=1.80 |
1 | ||
| 90520-30019 |
RN55,6#..R T=2.05,MARK F,T=2.05 |
1 | ||
| 90520-30017 |
RN55,6#..R T=1.95,MARK D,T=1.95 |
1 | ||
| 90520-30020 |
RN55,6#..R T=2.10,MARK G,T=2.10 |
1 | ||
| 90520-30018 |
RN55,6#..R T=2.00,MARK E,T=2.00 |
1 | ||
| 90520-30015 |
RN55,6#..R T=1.85,MARK B,T=1.85 |
1 | ||
| 33321M - RING, SHAFT SNAP (FOR BEARING) | ||||
| 90520-36007 |
RN55,6#..R T=2.30,MARK A,T=2.30 |
1 | ||
| 90520-36010 |
RN55,6#..R T=2.45,MARK D,T=2.45 |
1 | ||
| 90520-36009 |
RN55,6#..R T=2.40,MARK C,T=2.40 |
1 | ||
| 90520-36008 |
RN55,6#..R T=2.35,MARK B,T=2.35 |
1 | ||
| 90520-36013 |
RN55,6#..R T=2.60,MARK G,T=2.60 |
1 | ||
| 90520-36012 |
RN55,6#..R T=2.55,MARK F,T=2.55 |
1 | ||
| 90520-36011 |
RN55,6#..R T=2.50,MARK E,T=2.50 |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-30005 |
RN55,6#..R |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35023 |
RN55,6#..R |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-35050 |
RN55,6#..R |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35050 |
RN6#..R |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-47003 |
RN55,6#..R |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-35040 |
RN55,6#..R |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-38011 |
RN55,6#..R |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-35040 |
RN6#..R |
1 | ||
| 33335B - SPACER(FOR 1ST GEAR BEARING) | ||||
| 90560-39002 |
RN55,6#..R |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-39005 |
RN55,6#..R |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-35070 |
RN55,6#..R |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-35010 |
RN55,6#..R |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-05026 |
RN55,6#..R |
1 | ||
| 33349 - WASHER, 5TH GEAR THRUST | ||||
| 33346-35010 |
RN55,6#..R |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
LN56,65,RN5#,6#..MTM |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-35030 |
RN55,6#..R |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35030 |
RN55,6#..R |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35020 |
RN55,6#..R |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35030 |
RN55,6#..R |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35030 |
RN55,6#..R |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-35010 |
RN55,6#..R |
2 | ||
| 33368-20012 |
LN5#,65,RN5#,6#..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-35010 |
RN55,6#..R |
2 | ||
| 33368-20012 |
LN5#,65,RN5#,6#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-35020 |
RN55,6#..R |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-35020 |
RN55,6#..R |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-35020 |
RN55,6#..R |
1 | ||
| 33367-14010 |
LN56,6#,RN5#,6#,70..5F..(DLX,SR5,STD) |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
LN5#,65,RN5#,6#..MTM |
2 | ||
| 33371-35020 |
RN55,6#..R |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
LN5#,65,RN5#,6#..MTM |
2 | ||
| 33371-35020 |
RN55,6#..R |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-25030 |
RN55,6#..R |
2 | ||
| 33371-14010 |
LN56,6#,RN5#,6#,70..5F..(DLX,SR5,STD) |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-25030 |
RN55,6#..R |
2 | ||
| 33371-14010 |
LN56,6#,RN5#,6#,70..5F..(DLX,SR5,STD) |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-35020 |
RN55,6#..R |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25030 |
RN55,6#..R |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25030 |
RN55,6#..R |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-35010 |
RN55,6#..R |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-28010 |
LN5#,65,RN6# |
1 | ||
| 33402-22022 |
LN66,RN55,6#,75..MTM..(EFI,TD) |
1 | ||
| 33402-35040 |
RN55,6#..R |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25019 |
RN55,6#..R |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
LN5#,65,RN5#,6#..MTM T=1.07,OD=55.6 |
1 | ||
| 90520-56002 |
RN55,6#..R T=1.07,OD=62 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-22005 |
RN55,6#..R |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-34005 |
RN55,6#..R |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23037 |
RN55,6#..R T=2.00,MARK A,T=2.00 |
1 | ||
| 90520-23039 |
RN55,6#..R T=2.10,MARK C,T=2.10 |
1 | ||
| 90520-23038 |
RN55,6#..R T=2.05,MARK B,T=2.05 |
1 | ||
| 90520-23041 |
RN55,6#..R T=2.20,MARK E,T=2.20 |
1 | ||
| 90520-23040 |
RN55,6#..R T=2.15,MARK D,T=2.15 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-35130 |
RN6#..R |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-35050 |
RN55,6#..R |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-28009 |
RN55,6#..R |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-35030 |
RN55,6#..R |
1 | ||
