RN66L-MDK (1985)
Toyota 4-Runner Truck
Production
Aug 1985
-
Aug 1987
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8903)LN6#,RN6#,VZN6#

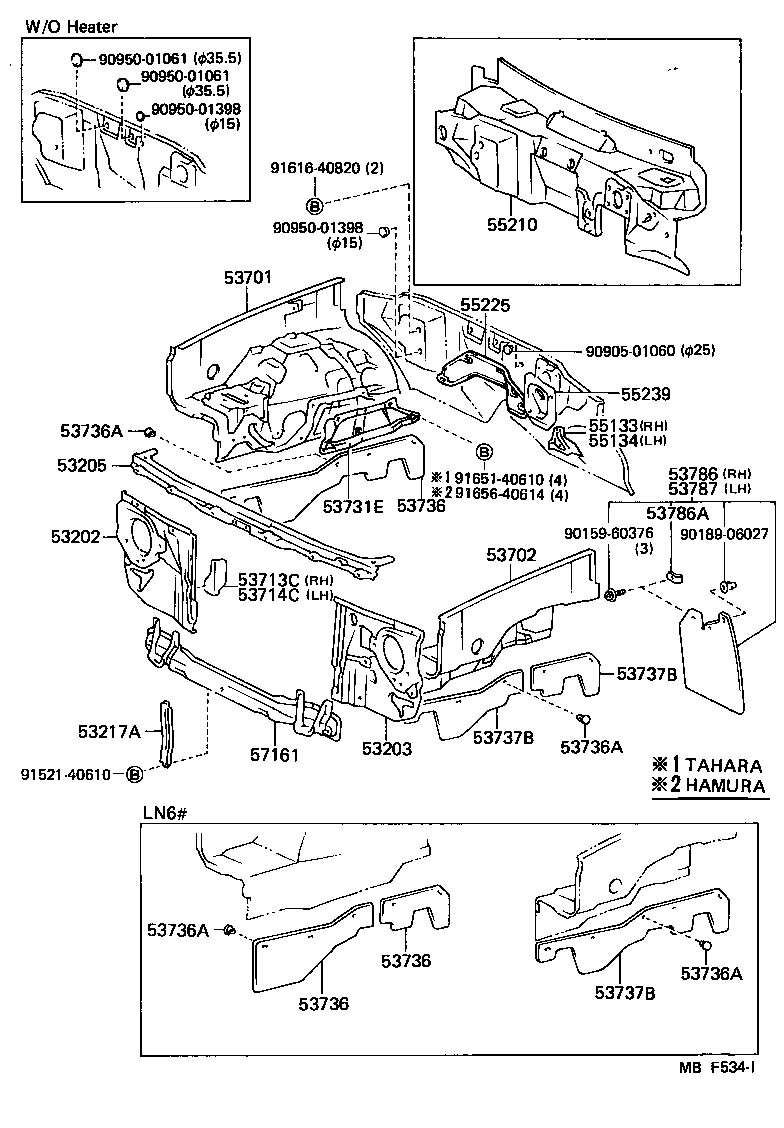

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53211-89112 |
LN5#,65,RN5#,6# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53212-89111 |
LN5#,65,RN5#,6# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-89105 |
LN5#,6#,RN5#,6#,7# |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-89107 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-89140 |
RN6# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-89172 |
RN6# |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-89101 |
LN5#,6#,RN5#,6#,7# |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-89101 |
LN5#,6#,RN5#,6#,7# |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-89109 |
RN6# |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-89109 |
RN6# |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-89109 |
RN6# |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-1000501 |
LN6#,RN6#,VZN6# BLACK,BLACK |
10 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-1000501 |
LN6#,RN6#,VZN6# BLACK,BLACK |
10 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-1000501 |
LN6#,RN6#,VZN6# BLACK,BLACK |
10 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-1000501 |
LN6#,RN6#,VZN6# BLACK,BLACK |
10 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-89107 |
RN6# FR |
1 | ||
| 53736-89111 |
RN6# RR |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-89107 |
RN6# FR |
1 | ||
| 53736-89111 |
RN6# RR |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-89107 |
RN6# FR |
1 | ||
| 53736-89111 |
RN6# RR |
1 | ||
| 53786 - MUDGUARD, FRONT, RH | ||||
| 76621-39045 |
LN65,RN6# |
1 | ||
| 53786A - RETAINER(FOR FRONT MUDGUARD) | ||||
| 53879-22010 |
LN6#,RN6#,VZN6# |
4 | ||
| 53787 - MUDGUARD, FRONT, LH | ||||
| 76622-39045 |
LN65,RN6# |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-89103 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-89103 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-89138 |
LN5#,65,RN5#,6# |
1 | ||
| 55239 - SILENCER, STEERING COLUMN HOLE COVER | ||||
| 55210-89135 |
LN5#,6#,RN5#,6#,7#,VZN6#..4F,4FC,5F |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-89108 |
LN6#,RN6#,VZN6# |
1 | ||
| Common parts | ||||
| 90159-60376 | ||||
| 90189-06027 | ||||
| 90905-01060 | ||||
| 90950-01061 | ||||
| 90950-01398 | ||||
| 91521-40610 | ||||
| 91616-40820 | ||||
| 91651-40610 | ||||
| 91656-40614 | ||||
