RN66L-MDCEA (1987)

Toyota 4-Runner Truck

Production Aug 1987 - Aug 1988
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8903)

Click highlighted areas on diagram

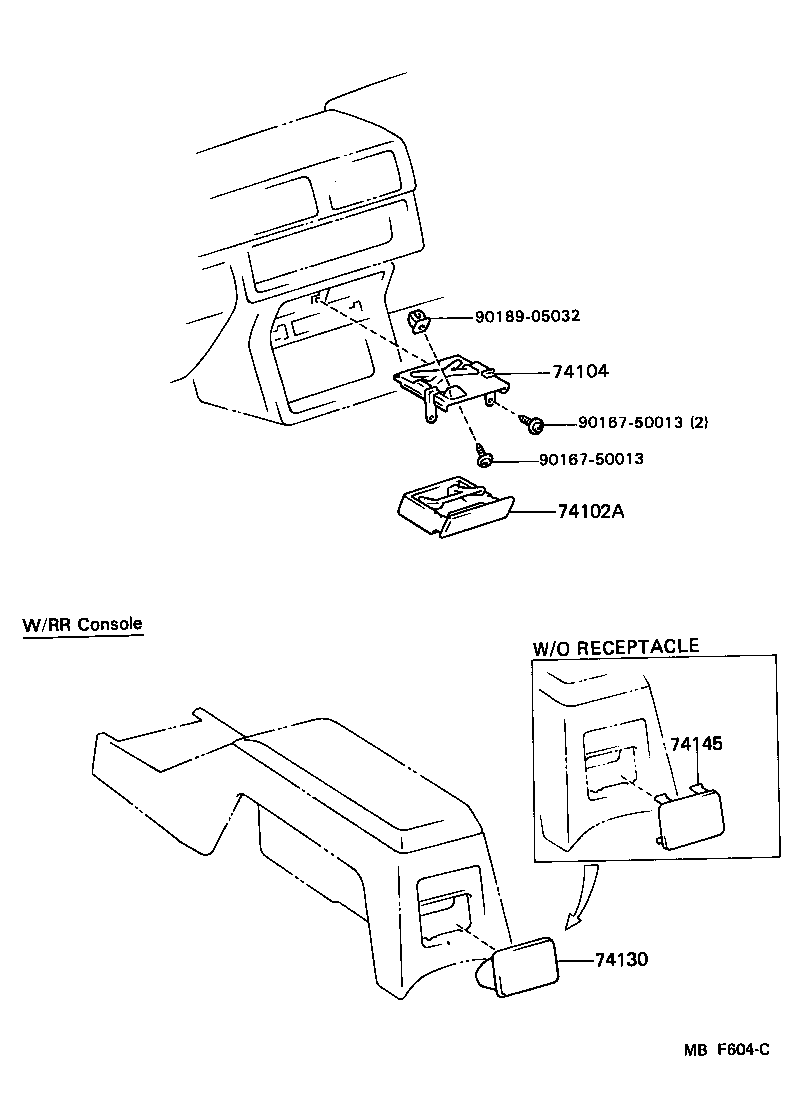

diagram 74102A 74104 74130 74145 9016750013 9016750013 9018905032
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-89103

LN5#,6#,RN5#,6#,7#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-89105

LN5#,6#,RN5#,6#,7#,VZN6#

 1
Common parts
90167-50013
90189-05032
