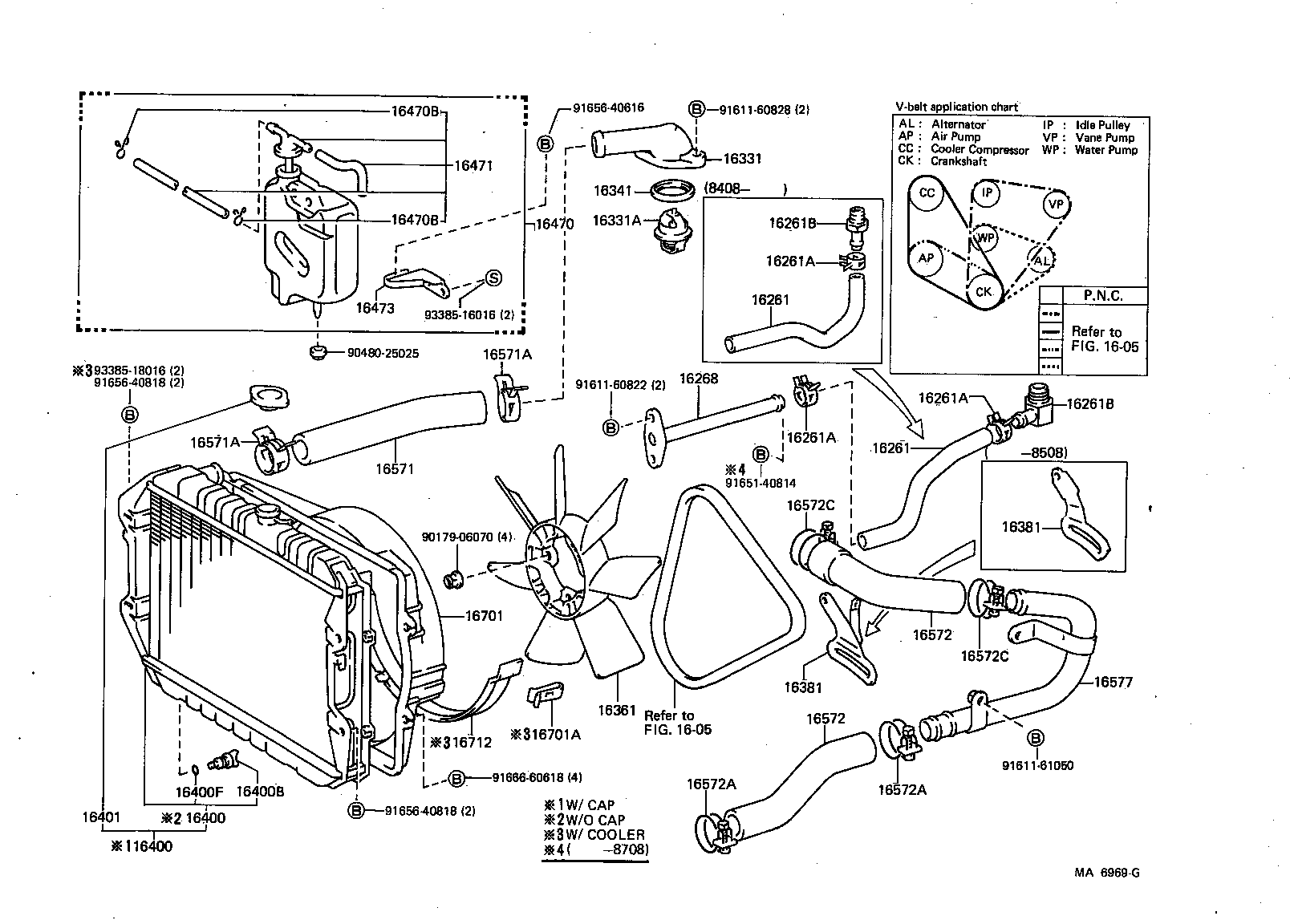

RN66L-MDCA (1985)
Toyota 4-Runner Truck
(8308-8808)22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-35040 |
22R..RN5#,6# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-35040 |
22R..RN5#,6# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R,22REC..RN5#,6#,7# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R,22REC..RN5#,6#,7# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R,22REC..RN5#,6#,7# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90407-53004 |
22R..RN5#,6# |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90407-53004 |
22R..RN5#,6# |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-35010 |
22R..RN5#,6#,70 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-35050 |
22R..RN5#,6#,70 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03055 |
22R#..RN5#,6#,7# *WAX 88-100 |
1 | ||
| 90916-03055 |
22R,22REC..RN5#,6# *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
22R#..RN5#,6#,7# |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
22R#..RN5#,6#,7# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38020 |
22R#..RN5#,6# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38020 |
22R#..RN5#,6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-35350 |
22R..RN6# W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-35350 |
22R..RN6# W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
22R#..RN5#,6#,7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
22R#..RN5#,6#,7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
22R#..RN5#,6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-71030 |
22R#..RN5#,6# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
22R#..RN5#,6#,7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
22R#..RN5#,6#,7# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-71010 |
22R#..RN5#,6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-35070 |
22R..RN5#,6#,70 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
22R#..RN5#,6#,7# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
22R#..RN5#,6#,7# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-35030 |
22R#..RN5#,6# RADIATOR SIDE |
1 | ||
| 16573-38020 |
22R,22REC..RN5#,6#,7# CHAIN COVER SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-35030 |
22R#..RN5#,6# RADIATOR SIDE |
1 | ||
| 16573-38020 |
22R,22REC..RN5#,6#,7# CHAIN COVER SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
22R#..RN5#,6#,7# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
22R#..RN5#,6#,7# |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10460 |
22R,22REC..RN5#,6#,7# PIPE SIDE |
1 | ||
| 96111-10490 |
22R#..RN5#,6#,7# CHAIN COVER SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10460 |
22R,22REC..RN5#,6#,7# PIPE SIDE |
1 | ||
| 96111-10490 |
22R#..RN5#,6#,7# CHAIN COVER SIDE |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-35030 |
22R,22REC..RN5#,6#,7# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-35020 |
22R..RN5#,6#,70..T1 |
1 | ||
| 16711-35020 |
22R..RN6# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
22R#..RN5#,6# W/COOLER |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
22R#..RN5#,6# W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90480-25025 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91611-61050 | ||||
| 91651-40814 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 91666-60618 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| Linked diagrams | ||||
| 1605 | ||||
