RN66L-MDA3 (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1987
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

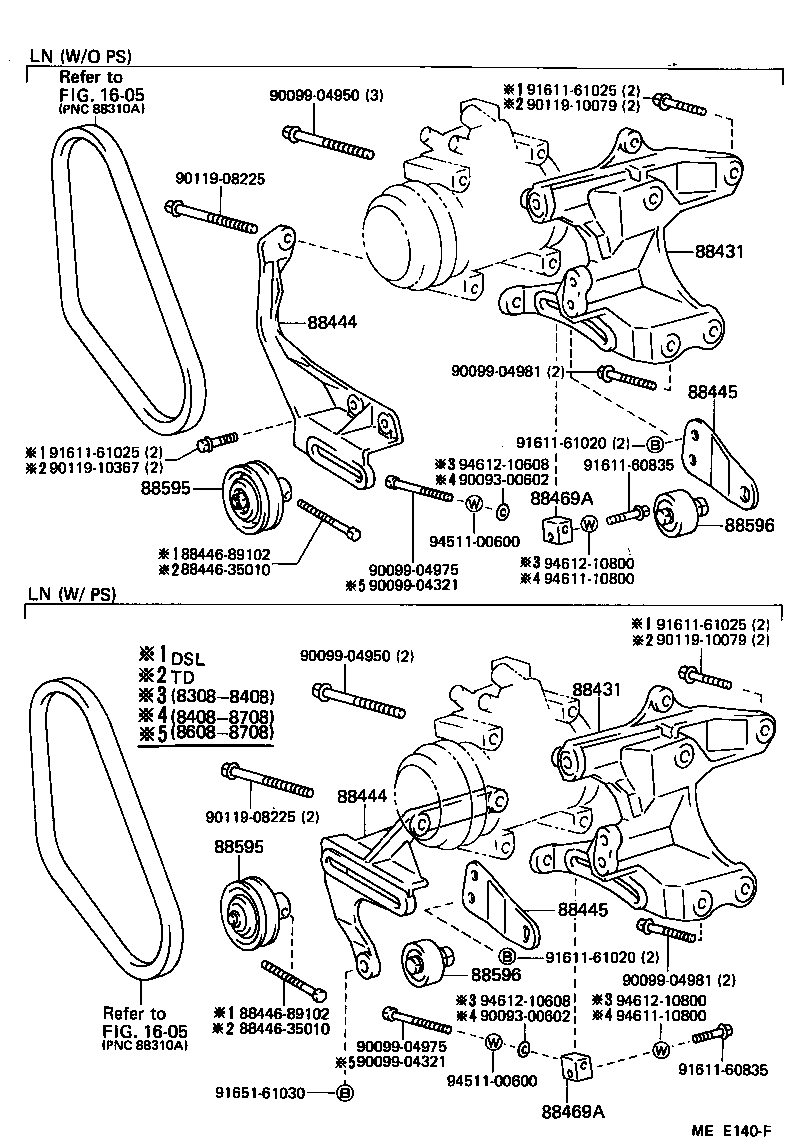

(8308-8708)LN56,6#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88444 88444 88445 88445 8844635010 8844635010 8844689102 8844689102 88469A 88469A 88595 88595 88596 88596 9009300602 9009300602 9009904321 9009904321 9009904950 9009904950 9009904975 9009904975 9009904981 9009904981 9011908225 9011908225 9011910079 9011910079 9011910367 9161160835 9161160835 9161161020 9161161020 9161161025 9161161025 9161161025 9165161030 9451100600 9451100600 9461110800 9461110800 9461210608 9461210608 9461210800 9461210800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100

LN56,66

 1
88431-35080

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88431-35090

RN5#,6#..T1

49 STATES

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100

LN56,66

 1
88431-35080

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88431-35090

RN5#,6#..T1

49 STATES

 1
88444 - BRACKET, IDLE PULLEY
88444-26060

LN56,6#

W/O POWER STEERING

 1
88444-35040

LN56,6#

W/POWER STEERING

 1
88444 - BRACKET, IDLE PULLEY
88444-26060

LN56,6#

W/O POWER STEERING

 1
88444-35040

LN56,6#

W/POWER STEERING

 1
88445 - BRACKET, IDLE PULLEY
88444-26070

LN56,6#

 1
88445 - BRACKET, IDLE PULLEY
88444-26070

LN56,6#

 1
88469A - COLLAR, ADJUSTING
88469-30280

LN56,6#

 1
88469-20030

RN55,6#..IV

 1
88469A - COLLAR, ADJUSTING
88469-30280

LN56,6#

 1
88469-20030

RN55,6#..IV

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

LN56,6#

 1
88440-16010

RN5#,6#..T1

49 STATES

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

LN56,6#

 1
88440-16010

RN5#,6#..T1

49 STATES

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-26070

LN56,6#

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-26070

LN56,6#

 1
Common parts
88446-35010
88446-89102
90093-00602
90099-04321
90099-04950
90099-04975
90099-04981
90119-08225
90119-10079
90119-10367
91611-60835
91611-61020
91611-61025
91651-61030
94511-00600
94611-10800
94612-10608
94612-10800
Linked diagrams
1605

(8308-8708)LN5#,RN6#,7#

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88432 88433 88437A 88469A 88595 88595 9009100852 9009100886 9009904306 9009904313 9009904922 9009904950 9009904950 9009920016 9010110048 9011908216 9011908225 9011910019 9011910040 9011910172 9011910172 9011910172 9111160855 9111161065 9161160850 9165160840 9165161020 9165161025 9451100800 9451100800 9451101000 9461210800 9461210800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100

LN56,66

 1
88431-35080

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88431-35090

RN5#,6#..T1

49 STATES

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35100

LN56,66

 1
88431-35080

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88431-35090

RN5#,6#..T1

49 STATES

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88434-20150

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88433 - BRACKET, COMPRESSOR MOUNTING, NO.3
88434-14030

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88437A - ATTACHMENT, COMPRESSOR
11324-38011

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88469A - COLLAR, ADJUSTING
88469-30280

LN56,6#

 1
88469-20030

RN55,6#..IV

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

LN56,6#

 1
88440-16010

RN5#,6#..T1

49 STATES

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35010

LN56,6#

 1
88440-16010

RN5#,6#..T1

49 STATES

 1
Common parts
90091-00852
90091-00886
90099-04306
90099-04313
90099-04922
90099-04950
90099-20016
90101-10048
90119-08216
90119-08225
90119-10019
90119-10040
90119-10172
91111-60855
91111-61065
91611-60850
91651-60840
91651-61020
91651-61025
94511-00800
94511-01000
94612-10800
Linked diagrams
1605
