RN66L-MDA (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1986
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LN66,RN6#,VZN6#

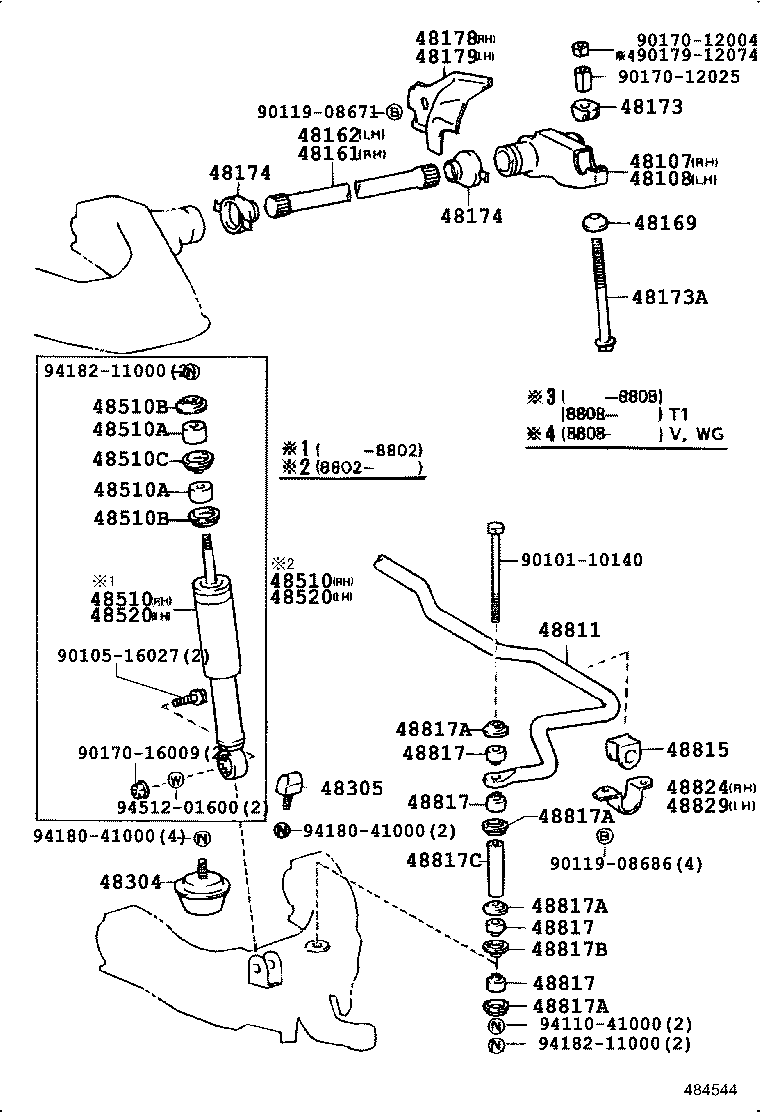

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48174 48174 48178 48179 48304 48305 48510 48510 48510A 48510A 48510B 48510B 48510C 48520 48520 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817C 48824 48829 9010110140 9010516027 9011908671 9011908686 9017012004 9017012025 9017016009 9017912074 9411041000 9418041000 9418041000 9418211000 9418211000
Part # Description Qty Price
48161 - SPRING, TORSION BAR, RH
48161-35130

RN6#..USA..CBU

W/WINCH

 1
48162 - SPRING, TORSION BAR, LH
48162-35130

RN6#..USA..CBU

W/WINCH

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-39445

RN6#

MARK 48511-35160

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-39445

RN6#

MARK 48511-35160

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LN6#,RN6#,VZN6#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LN6#,RN6#,VZN6#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

LN6#,RN6#,VZN6#

ID=10.5

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

LN6#,RN6#,VZN6#

ID=10.5

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02007

LN65,RN6#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-39445

RN6#

MARK 48511-35160

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-39445

RN6#

MARK 48511-35160

 1
48811 - BAR, STABILIZER, FRONT
48811-35091

LN65,RN6#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-20030

LN65,RN6#

 2
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN6#,RN6#,VZN6#

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN6#,RN6#,VZN6#

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN6#,RN6#,VZN6#

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN6#,RN6#,VZN6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN6#,RN6#,VZN6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN6#,RN6#,VZN6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN6#,RN6#,VZN6#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN6#,RN6#,VZN6#

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02034

LN6#,RN6#,VZN6#

 2
48817C - COLLAR(FOR STABILIZER BAR)
90440-14003

LN6#,RN6#,VZN6#

 2
Common parts
90101-10140
90105-16027
90119-08671
90119-08686
90170-12004
90170-12025
90170-16009
90179-12074
94110-41000
94180-41000
94182-11000
