RN65L-MSEK (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

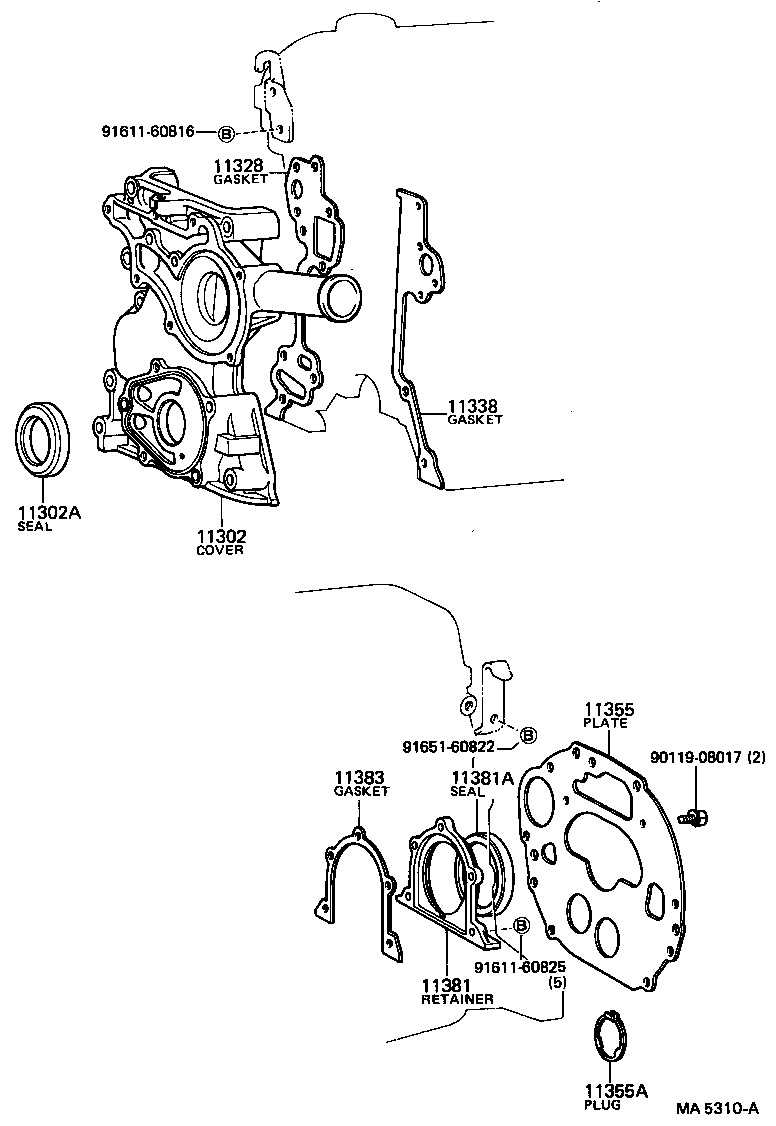

(8308-8412)22R#

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11355A 11381 11381A 11383 9011908017 9161160816 9161160825 9165160822
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-38010

22R#..RN5#,6#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45002

22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-35010

22R#..RN5#,6#

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11329-35010

22R#..RN5#,6#

 1
11355 - PLATE, REAR END
11355-35010

22R#..RN5#,6#,7#..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38010

22R#..RN5#,6#,7#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80004

22R#..RN5#,6#,7#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-35010

22R#..RN5#,6#,7#

 1
Common parts
90119-08017
91611-60816
91611-60825
91651-60822

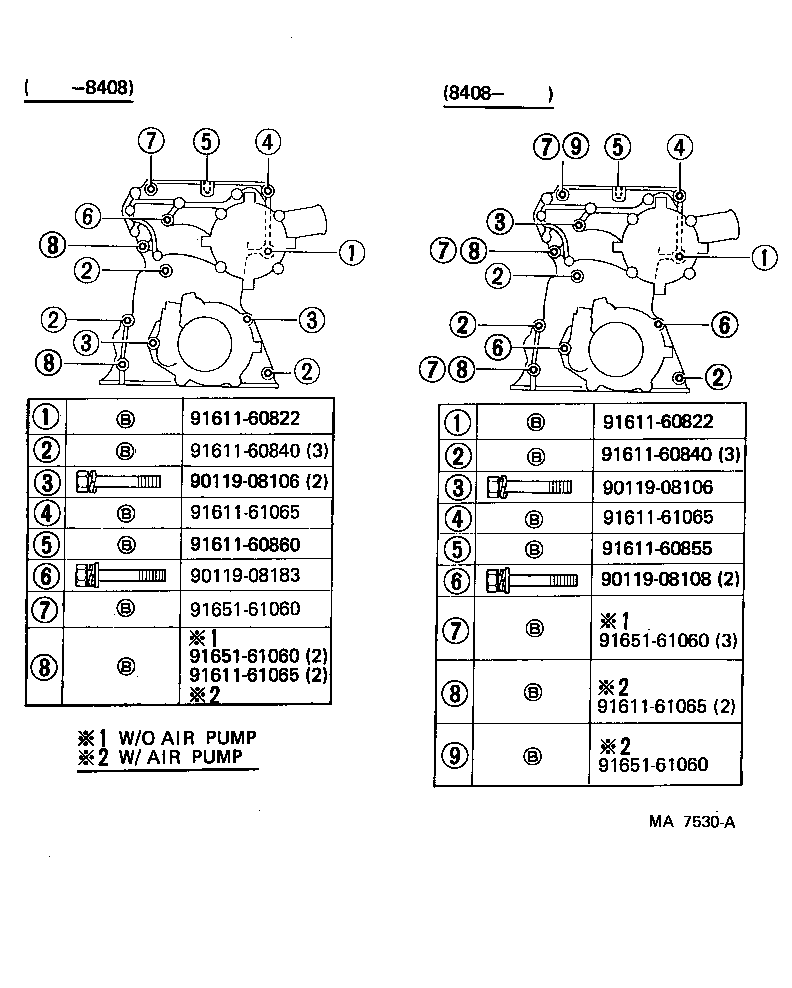

(8308-8808)22R#

Click highlighted areas on diagram

diagram 9011908106 9011908106 9011908108 9011908183 9161160822 9161160822 9161160840 9161160840 9161160855 9161160860 9161161065 9161161065 9161161065 9161161065 9165161060 9165161060 9165161060 9165161060
Part # Description Qty Price
Common parts
90119-08106
90119-08108
90119-08183
91611-60822
91611-60840
91611-60855
91611-60860
91611-61065
91651-61060

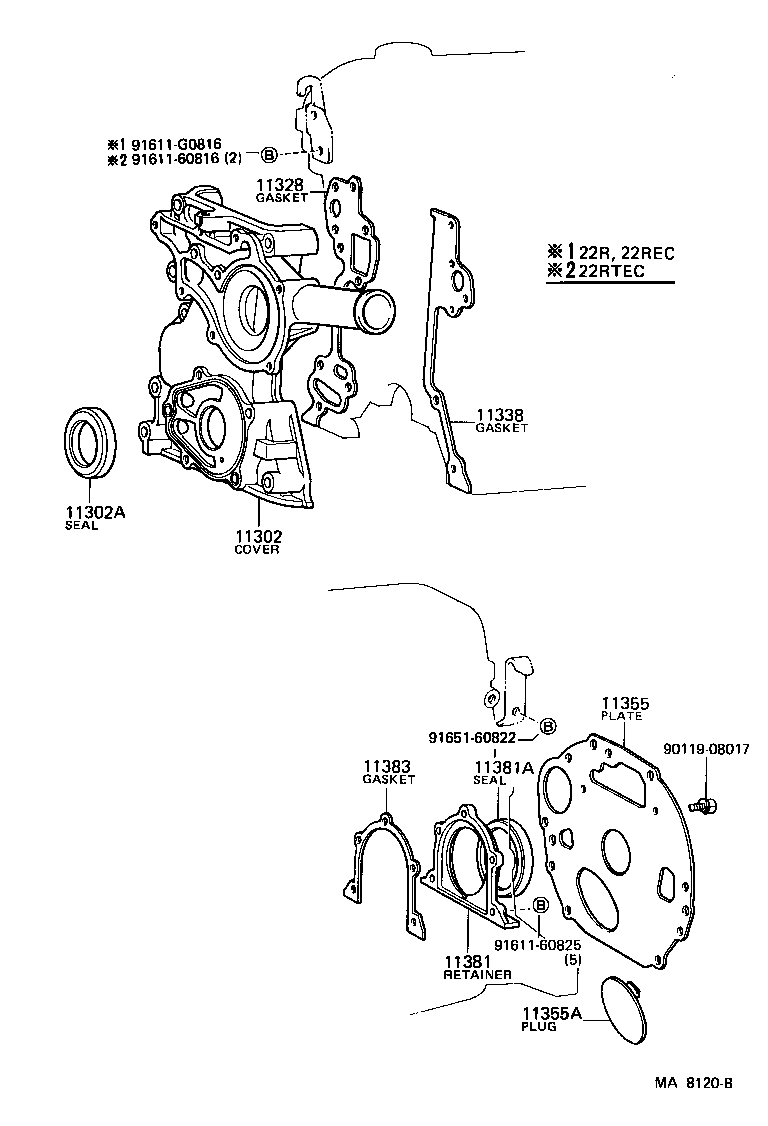

(8412- )22R#

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11355A 11381 11381A 11383 9011908017 9161160816 9161160825 91611G0816 9165160822
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-38010

22R#..RN5#,6#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45002

22R#..RN5#,65;22R..RN60..IV;22R..RN60..(DLX,STD)..CBU

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-35010

22R#..RN5#,6#

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11329-35010

22R#..RN5#,6#

 1
11355 - PLATE, REAR END
11355-35010

22R#..RN5#,6#,7#..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38010

22R#..RN5#,6#,7#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80004

22R#..RN5#,6#,7#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-35010

22R#..RN5#,6#,7#

 1
Common parts
90119-08017
91611-60816
91611-60825
91611-G0816
91651-60822
