RN65L-MSCK (1983)

Toyota 4-Runner Truck

Production Sep 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)22R..3QT,HLF ; (8403-8408)22R..RN60..SR5..CND ; (8408-8808)22R

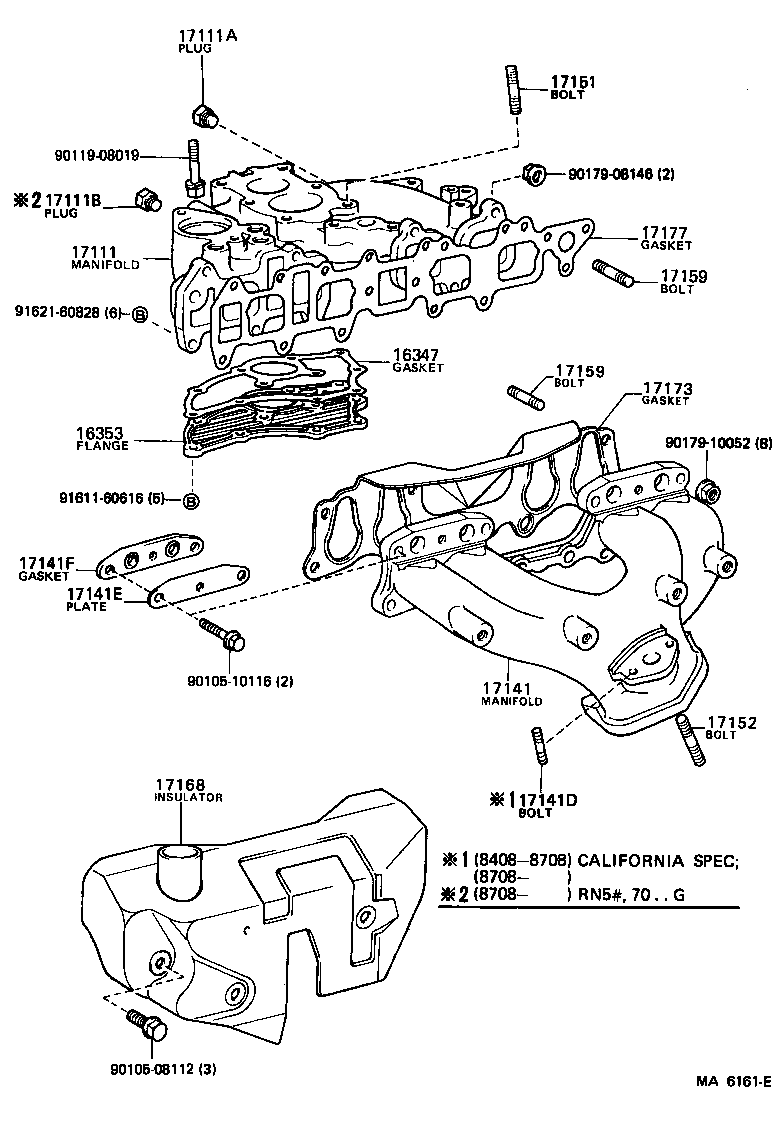

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111B 17141 17141D 17141E 17141F 17151 17152 17159 17159 17168 17173 17177 9010508112 9010510116 9011908019 9017908146 9017910052 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35020

22R..RN5#,6#,70

 1
16353 - FLANGE, WATER BY-PASS
16353-35020

22R..RN5#,6#,70

 1
17111 - MANIFOLD, INTAKE
17111-35030

22R..RN5#,6#,70

 1
17111A - PLUG, NO.1
90345-51025

22R..RN5#,6#,70

 1
17111B - PLUG, NO.2
90345-53007

22R..RN5#,6#..3QT,HLF

 2
17141 - MANIFOLD, EXHAUST
17141-35050

22R..RN5#,6#..3QT,HLF

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

22R..RN5#,6#,70

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

22R#..RN5#,6#,7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE UPR

 4
90116-10064

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE LWR

 4
90116-08172

22R#..RN5#,6#,7#

INTAKE MANIFOLD SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE UPR

 4
90116-10064

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE LWR

 4
90116-08172

22R#..RN5#,6#,7#

INTAKE MANIFOLD SIDE

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35050

22R..RN5#,6#..3QT,HLF

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020

22R#..RN5#,6#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35021

22R#..RN5#,6#

 1
Common parts
90105-08112
90105-10116
90119-08019
90179-08146
90179-10052
91611-60616
91621-60828

(8308-8408)22R..RN55..DLX..HVY ; (8308-8408)22R..RN60..STD..CBU ; (8308-8408)22R..R

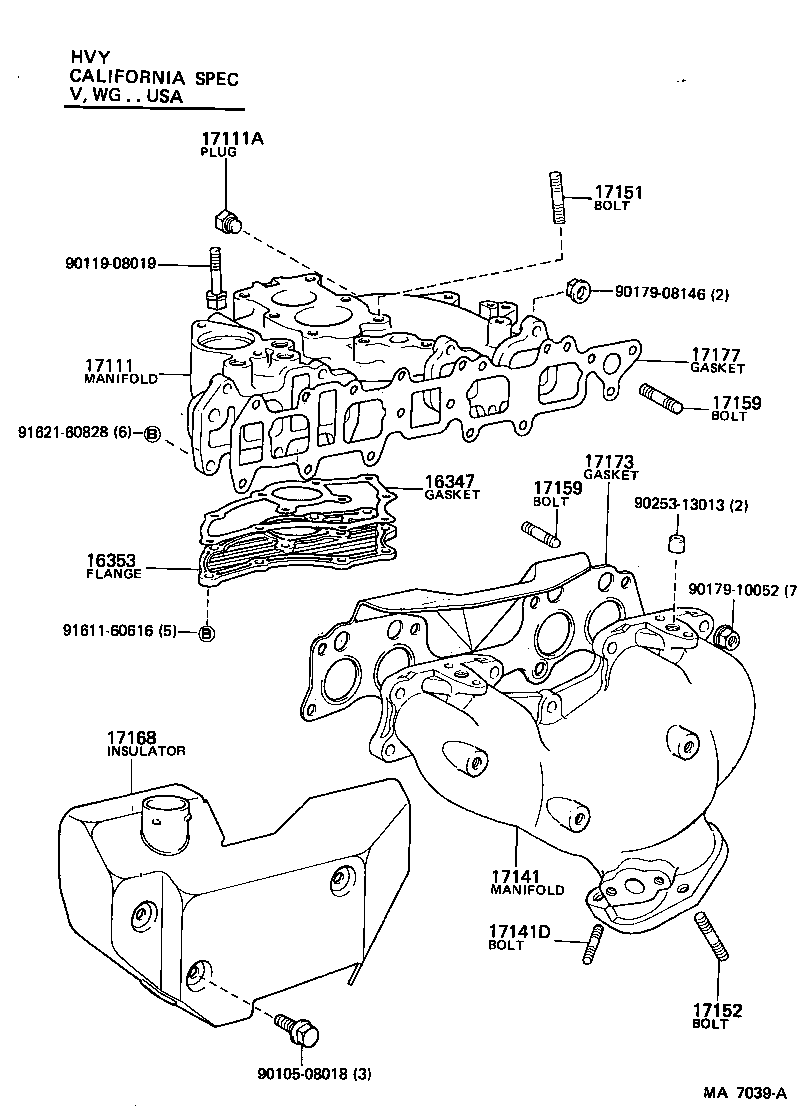

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17141 17141D 17151 17152 17159 17159 17168 17173 17177 9010508018 9011908019 9017908146 9017910052 9025313013 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35020

22R..RN5#,6#,70

 1
16347-35020

22R..RN5#,6#,70

 1
16353 - FLANGE, WATER BY-PASS
16353-35020

22R..RN5#,6#,70

 1
16353-35020

22R..RN5#,6#,70

 1
17111 - MANIFOLD, INTAKE
17111-35030

22R..RN5#,6#,70

 1
17111-35030

22R..RN5#,6#,70

 1
17111A - PLUG, NO.1
90345-51025

22R..RN5#,6#,70

 1
90345-51025

22R..RN5#,6#,70

 1
17141 - MANIFOLD, EXHAUST
17141-35050

22R..RN5#,6#..3QT,HLF

 1
17141-35050

22R..RN5#,6#..3QT,HLF

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

22R..RN5#,6#,70

L=40,S=11&11

 2
90116-08051

22R..RN5#,6#,70

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

22R#..RN5#,6#,7#

 3
90116-10087

22R#..RN5#,6#,7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE UPR

 4
90116-10067

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE UPR

 4
90116-10064

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE LWR

 4
90116-10064

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE LWR

 4
90116-08172

22R#..RN5#,6#,7#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R#..RN5#,6#,7#

INTAKE MANIFOLD SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10067

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE UPR

 4
90116-10067

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE UPR

 4
90116-10064

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE LWR

 4
90116-10064

22R,22REC..RN5#,6#,7#

EXHAUST MANIFOLD SIDE LWR

 4
90116-08172

22R#..RN5#,6#,7#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R#..RN5#,6#,7#

INTAKE MANIFOLD SIDE

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35050

22R..RN5#,6#..3QT,HLF

 1
17167-35050

22R..RN5#,6#..3QT,HLF

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020

22R#..RN5#,6#

 1
17173-35020

22R#..RN5#,6#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35021

22R#..RN5#,6#

 1
17177-35021

22R#..RN5#,6#

 1
Common parts
90105-08018
90119-08019
90179-08146
90179-10052
90253-13013
91611-60616
91621-60828
