RN65L-MSCEK (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

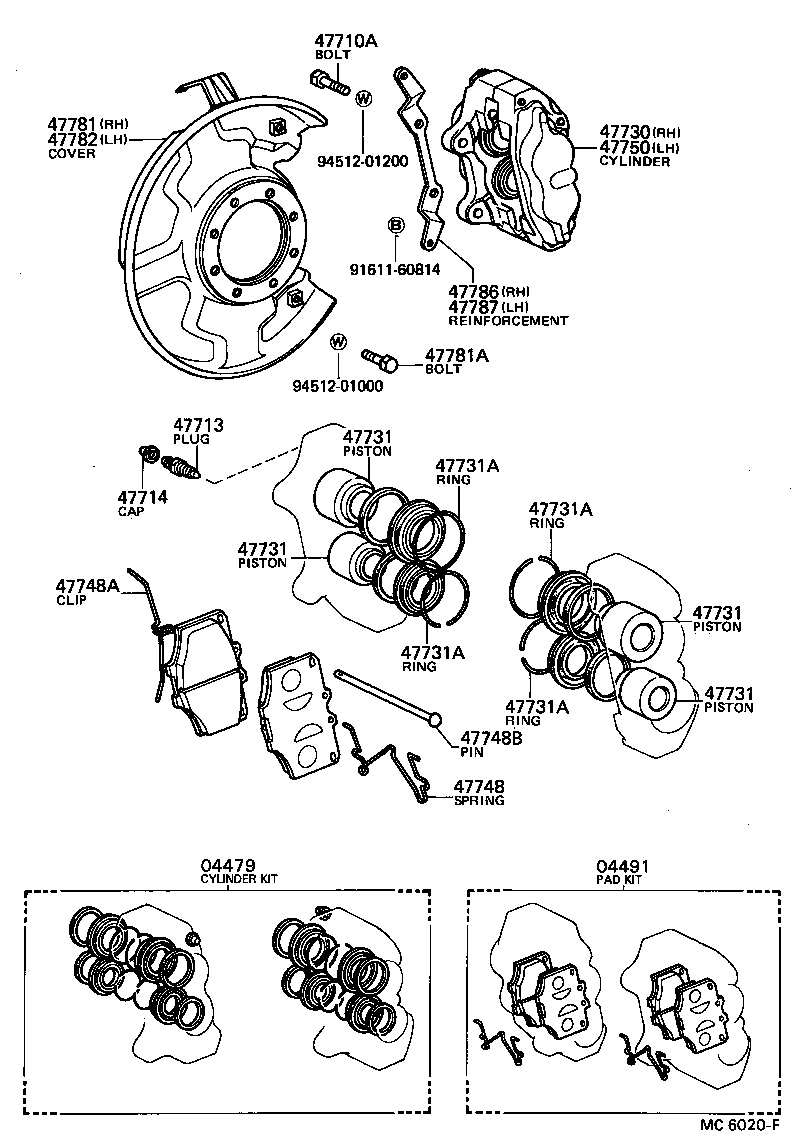

ILLUST NO. 1 OF 2(8308-8508)LN65,RN6#

Click highlighted areas on diagram

diagram 04479 04491 47710A 47713 47714 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47748 47748A 47748B 47750 47781 47781A 47782 47786 47787 9161160814 9451201000 9451201200
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30030

LN6#,RN6#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-35080

LN65,RN6#

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12491

LN65,RN6#

*12-1.25PX42-24

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

LN6#,RN6#,VZN6#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LN5#,6#,RN5#,6#,7#,VZN6#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35010

LN65,RN6#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN6#,RN6#

OD=42.82

 4
47732-30010

LN65,RN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN6#,RN6#

OD=42.82

 4
47732-30010

LN65,RN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN6#,RN6#

OD=42.82

 4
47732-30010

LN65,RN6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

LN6#,RN6#

OD=42.82

 4
47732-30010

LN65,RN6#

OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN6#,RN6#,VZN6#

PISTON OD=42.82

 4
90522-40043

LN65,RN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN6#,RN6#,VZN6#

PISTON OD=42.82

 4
90522-40043

LN65,RN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN6#,RN6#,VZN6#

PISTON OD=42.82

 4
90522-40043

LN65,RN6#

PISTON OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

LN6#,RN6#,VZN6#

PISTON OD=42.82

 4
90522-40043

LN65,RN6#

PISTON OD=33.93

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-30013

LN65,RN6#

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12003

LN6#,RN6#

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06006

LN65,RN6#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-35010

LN65,RN6#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-35020

LN65,RN6#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90101-10439

LN65,RN6#

 16
91112-71028

LN65,RN6#

 16
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-35020

LN65,RN6#

 1
47786 - REINFORCEMENT, DUST COVER, RH
47786-60020

LN65,RN6#

 1
47787 - REINFORCEMENT, DUST COVER, LH
47787-60020

LN65,RN6#

 1
Common parts
91611-60814
94512-01000
94512-01200
