RN65L-MSCEK (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )22REC,22RTEC

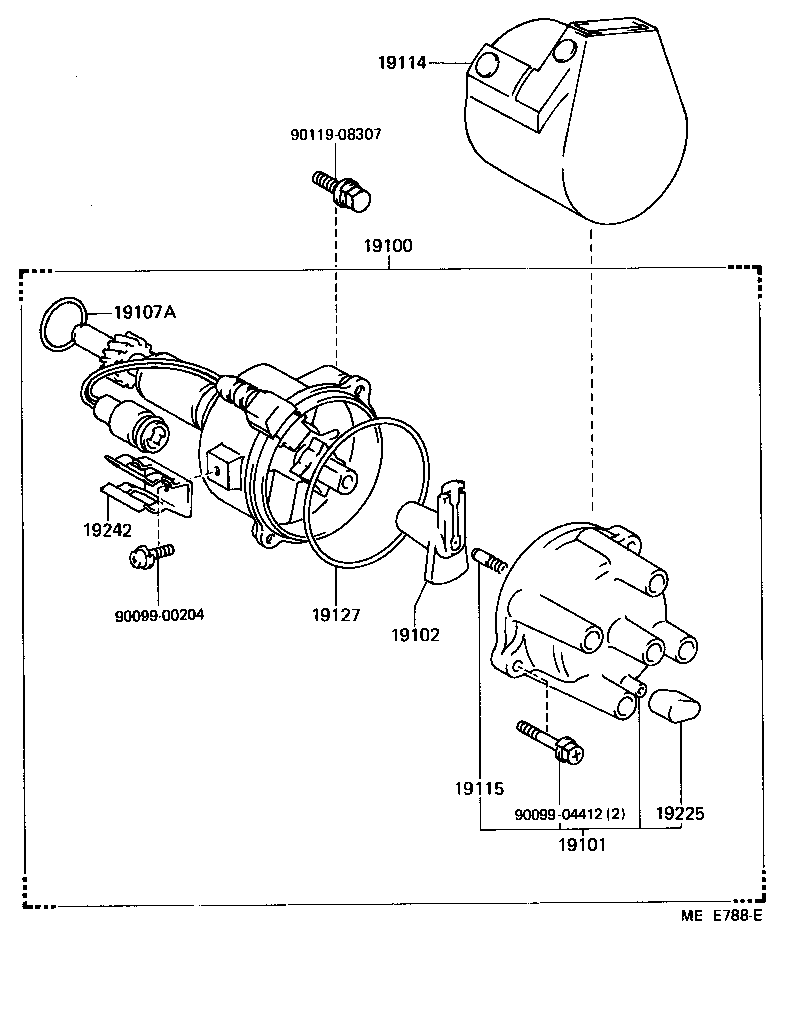

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19114 19115 19127 19225 19242 9009900204 9009904412 9011908307
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-35130

22R..RN5#,6#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-35120

22R#..RN5#,6#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-38210

22R#..RN5#,6#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

22R#..RN5#,6#,7#

 1
19114 - COVER, WATER PROOF(FOR DISTRIBUTOR)
19114-35011

22REC..RN6#,7#..CND;22REC..RN55..SR5..CND;22REC..RN55..(10T,HVY)..CND;22R,22RTEC..RN5#,6#,70..CND

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

22R#..RN5#,6#,7#

 1
19127 - PACKING, DUST PROOF
19127-15021

22R#..RN5#,6#,7#

 1
19225 - CAP, RUBBER
19225-41140

22R#..RN5#,6#

 1
19242 - CLAMP, CORD
19242-37080

22R#..RN5#,6#

 1
Common parts
90099-00204
90099-04412
90119-08307
