RN65L-MSCEK (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8708)22R ; (8708-8808)22R..W

Click highlighted areas on diagram

diagram 17061 1709 17680D 17680E 17700 17700A 17700F 17700T 17705 17728 17728A 17729 17749 17801 17841 17841 17845 17848 17853 17881 17882 17882A 17883 17884B 17884D 9011906098 9011906098 9017908017 9017908017 9033903005
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-37010

22R..RN5#,6#,70

 1
17680D - VALVE ASSY, MIXTURE CONTROL
17680-35010

22R..RN5#,6#,70..MTM

 1
17680E - HOSE, AIR(FOR MIXTURE CONTROL VALVE)
17346-35010

22R..RN5#,6#,70..MTM

 1
17700 - CLEANER ASSY, AIR
17700-35140

22R..RN6#..HLF

 1
17700-35170

22REC..RN5#,6#,75

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

22R..RN5#,6#,70

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06020

22R..RN5#,6#,70

 1
17700T - BOLT, STUD(FOR AIR CLEANER)
90116-08033

22R..RN5#,6#,70

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35100

22REC..RN5#,6#,75

 1
17705-35060

22R..RN5#,6#,70

 1
17728 - VALVE, THERMOSTATIC
17728-24010

22R..RN5#,6#,70

 1
17728A - BUSH
90386-03001

22R..RN5#,6#,70

 1
17729 - GASKET, THERMOSTAT VALVE
17729-34010

22R..RN5#,6#,70

 1
17749 - SUPPORT, THERMOSTAT VALVE
17749-34010

22R..RN5#,6#,70

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090

22R..RN5#,6#,70

 1
17801-70010

22REC,22RTEC..RN5#,6#,7#

 1
17841 - GASKET, FILTER ELEMENT
17841-41050

22R..RN5#,6#,70

 2
17841 - GASKET, FILTER ELEMENT
17841-41050

22R..RN5#,6#,70

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

22R..RN5#,6#,70

*G,L=1130

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

22R..RN5#,6#,70

 1
17853 - INSULATOR, AIR CLEANER BRACKET
17853-38010

22R..RN5#,6#,70

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-37030

22R..RN5#,6#,70

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-89107

22REC,22RTEC..RN5#,6#,75

 1
17880-89103

22R..RN5#,6#,70

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01017

22R..RN5#,6#,70

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-89104

22R..RN5#,6#,70

 1
17884B - BOX, AIR CLEANER, NO.1
17884-89101

22R..RN5#,6#,70

 1
17884D - BRACKET, AIR CLEANER BOX
17851-89101

22R..RN5#,6#,70

 1
Common parts
90119-06098
90179-08017
90339-03005
Linked diagrams
1709

(8308-8708)22REC

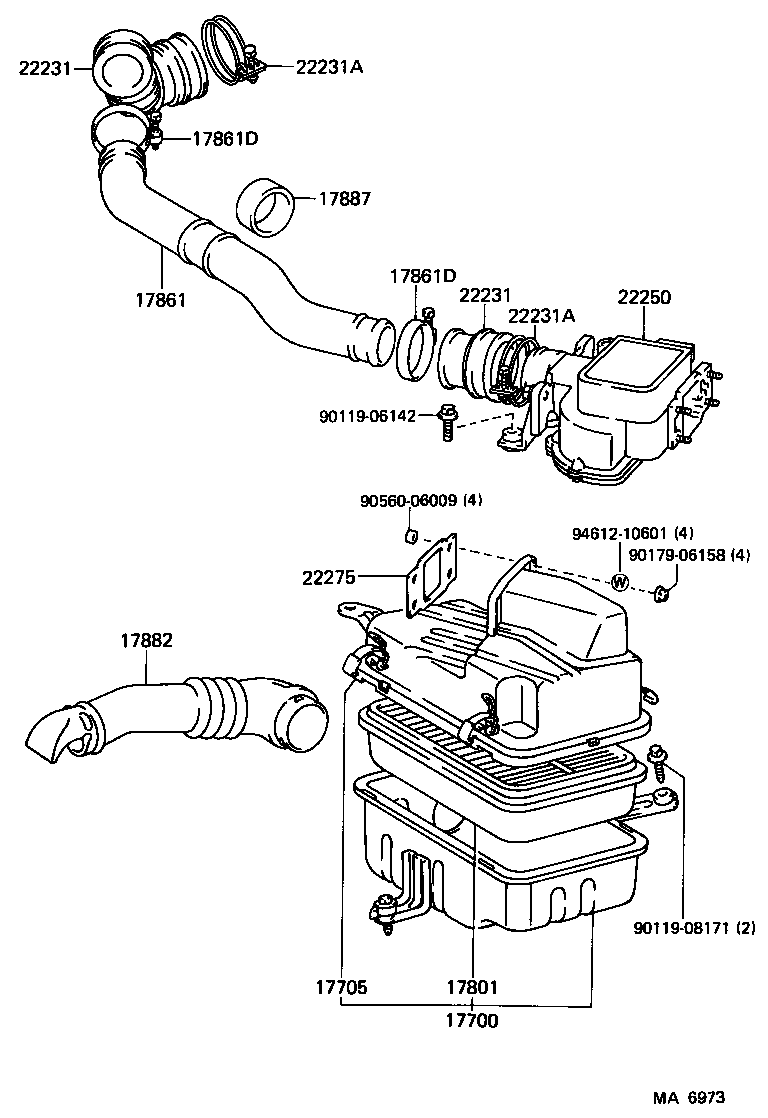

Click highlighted areas on diagram

diagram 17700 17705 17801 17861 17861D 17861D 17882 17887 22231 22231 22231A 22231A 22250 22275 9011906142 9011908171 9017906158 9056006009 9461210601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-35140

22R..RN6#..HLF

 1
17700-35170

22REC..RN5#,6#,75

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35100

22REC..RN5#,6#,75

 1
17705-35060

22R..RN5#,6#,70

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090

22R..RN5#,6#,70

 1
17801-70010

22REC,22RTEC..RN5#,6#,7#

 1
17861 - CONNECTOR, INTAKE AIR
17861-35030

22REC..RN5#,6#,75

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
90460-75001

22REC..RN5#,6#,7#

 2
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
90460-75001

22REC..RN5#,6#,7#

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-89107

22REC,22RTEC..RN5#,6#,75

 1
17880-89103

22R..RN5#,6#,70

 1
17887 - COVER, AIR CLEANER HOSE
17887-35010

22REC..RN5#,6#,75

 1
22231 - HOSE, THROTTLE BODY
22231-35010

22REC..RN5#,6#,75

THROTTLE BODY SIDE

 1
22231-41030

22REC..RN5#,6#,7#

AIR FLOW METER SIDE

 1
22231 - HOSE, THROTTLE BODY
22231-35010

22REC..RN5#,6#,75

THROTTLE BODY SIDE

 1
22231-41030

22REC..RN5#,6#,7#

AIR FLOW METER SIDE

 1
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

22REC..RN5#,6#,7#

 2
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

22REC..RN5#,6#,7#

 2
22250 - METER ASSY, INTAKE AIR FLOW
22250-35020

22REC..RN5#,6#,7#

 1
22275 - GASKET, AIR FLOW METER
22275-41010

22REC,22RTEC..RN5#,6#,7#

 1
Common parts
90119-06142
90119-08171
90179-06158
90560-06009
94612-10601
