RN65L-MSCEA (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8903)RN5#,6#,75..EFI,TBO

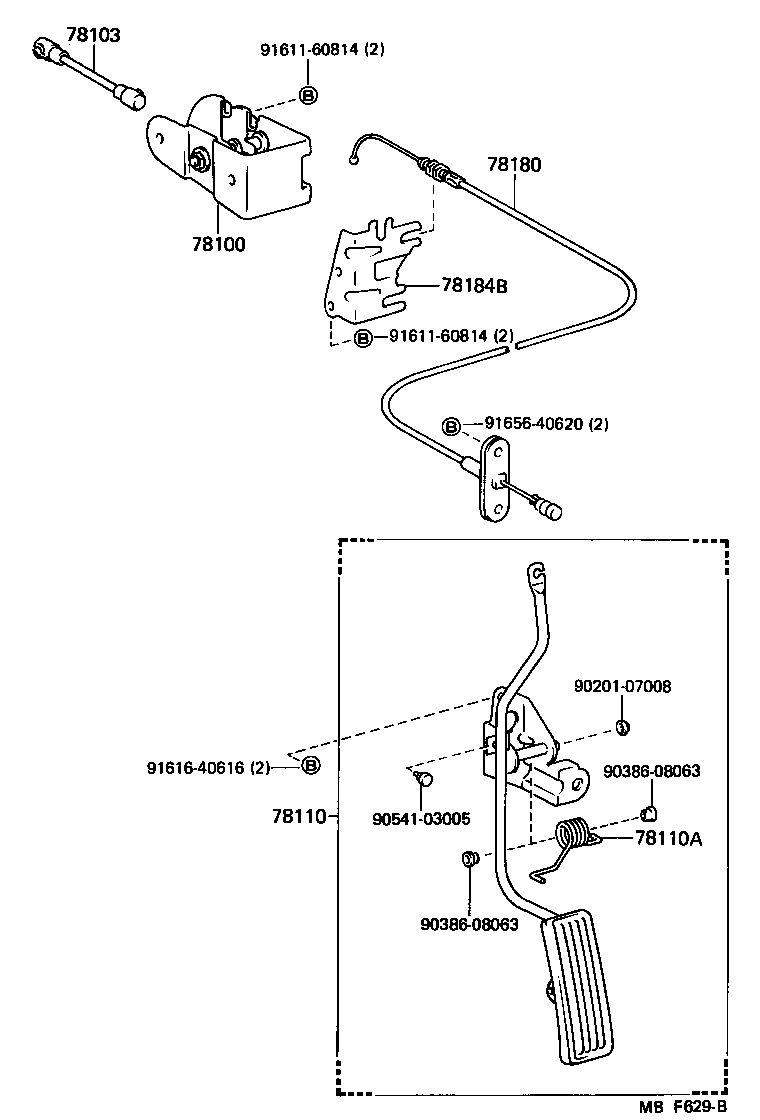

Click highlighted areas on diagram

diagram 78100 78103 78110 78110A 78180 78184B 9020107008 9038608063 9038608063 9054103005 9161160814 9161160814 9161640616 9165640620
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78100-14060

RN5#,6#,75..EFI,TBO

 1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
21905-35010

RN5#,6#,75..EFI,TBO

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89121

RN6#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26060

LN5#,6#

 1
90508-32019

RN5#,6#,7#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-89133

RN5#,6#,75..EFI,TBO

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
21928-35010

RN5#,6#,75..EFI,TBO

 1
Common parts
90201-07008
90386-08063
90541-03005
91611-60814
91616-40616
91656-40620
