RN65L-MSCEA (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)LN6#,RN6#,VZN6#..HLF

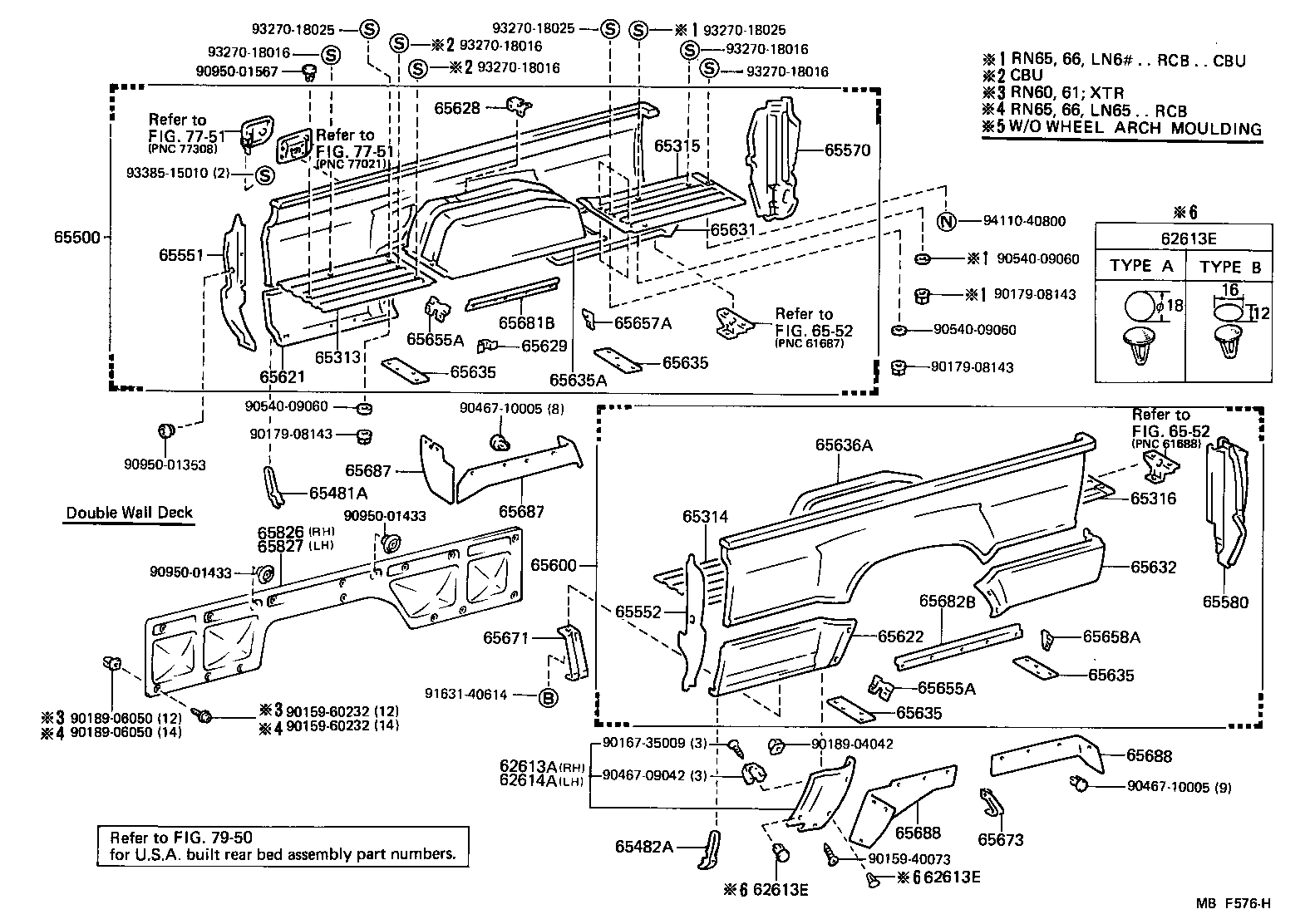

Click highlighted areas on diagram

diagram 62613A 62613E 62613E 62613E 62614A 65313 65314 65315 65316 65481A 65482A 65500 6552 6552 65551 65552 65570 65580 65600 65621 65622 65628 65629 65631 65632 65635 65635 65635 65635 65635A 65636A 65655A 65655A 65657A 65658A 65671 65673 65681B 65682B 65687 65687 65688 65688 65826 65827 7751 7751 7950 9015940073 9015960232 9015960232 9016735009 9017908143 9017908143 9017908143 9018904042 9018906050 9018906050 9046709042 9046710005 9046710005 9054009060 9054009060 9054009060 9095001353 9095001433 9095001433 9095001567 9163140614 9327018016 9327018016 9327018016 9327018016 9327018016 9327018025 9327018025 9327018025 9338515010 9411040800
Part # Description Qty Price
62613A - COVER, QUARTER WHEEL HOUSE, RH
62613-89101

RN65..SR5..CBU

 1
62614A - COVER, QUARTER WHEEL HOUSE, LH
62614-89101

RN65..SR5..CBU

 1
65551 - PANEL, FRONT END POST INNER, RH
65551-89108

LN5#,6#,RN5#,6#,70,VZN6#..T1..CBU

 1
65552 - PANEL, FRONT END POST INNER, LH
65552-89108

LN5#,6#,RN5#,6#,70,VZN6#..T1..CBU

 1
65570 - POST ASSY, SIDE PANEL REAR END, RH
65505-89102

LN65,RN6#..HLF..CBU

 1
65580 - POST ASSY, SIDE PANEL REAR END, LH
65506-89102

LN65,RN6#..HLF..CBU

 1
65628 - BRACKET, FUEL INLET HOSE PROTECTOR, UPPER
65628-89106

LN6#,RN6#,VZN6#..HLF..CBU

 1
65629 - BRACKET, FUEL INLET HOSE PROTECTOR, SIDE
65629-89105

LN5#,6#,RN5#,6#,70,VZN6#..10T,3QT,HLF

 1
65635 - PLATE, REAR WHEEL HOUSE
65635-89107

LN6#,RN6#..HLF..CBU

RR

 2
65631-89108

LN6#,RN6#..HLF..CBU

FR

 2
65635 - PLATE, REAR WHEEL HOUSE
65635-89107

LN6#,RN6#..HLF..CBU

RR

 2
65631-89108

LN6#,RN6#..HLF..CBU

FR

 2
65635 - PLATE, REAR WHEEL HOUSE
65635-89107

LN6#,RN6#..HLF..CBU

RR

 2
65631-89108

LN6#,RN6#..HLF..CBU

FR

 2
65635 - PLATE, REAR WHEEL HOUSE
65635-89107

LN6#,RN6#..HLF..CBU

RR

 2
65631-89108

LN6#,RN6#..HLF..CBU

FR

 2
65635A - PANEL, WHEEL HOUSE, REAR RH
65635-89105

LN6#,RN6#,VZN6#..HLF..CBU

 1
65636A - PANEL, WHEEL HOUSE, REAR LH
65636-89105

LN6#,RN6#,VZN6#..HLF..CBU

 1
65655A - BRACKET, WHEEL HOUSE SEAL, FRONT
65655-89101

LN6#,RN6#,VZN6#..HLF..CBU

 2
65655A - BRACKET, WHEEL HOUSE SEAL, FRONT
65655-89101

LN6#,RN6#,VZN6#..HLF..CBU

 2
65657A - BRACKET, WHEEL HOUSE SEAL, REAR RH
65657-89101

LN6#,RN6#,VZN6#..HLF..CBU

 1
65658A - BRACKET, WHEEL HOUSE SEAL, REAR LH
65658-89102

LN6#,RN6#,VZN6#..HLF..CBU

 1
65673 - BRACE, SIDE PANEL SKIRT, REAR
65674-89104

LN65,RN6#..HLF

LH

 1
65673-89104

LN65,RN6#..HLF

RH

 1
65681B - BRACKET, WHEEL HOUSE SEAL, SIDE, RH
65681-89102

LN6#,RN6#,VZN6#..HLF..CBU

 1
65682B - BRACKET, WHEEL HOUSE SEAL, SIDE, LH
65682-89101

LN6#,RN6#,VZN6#..HLF..CBU

 1
65687 - MUDGUARD, WHEEL HOUSE, RH
65677-89103

LN6#,RN6#,VZN6#..HLF..CBU

RR

 1
65675-89109

LN6#,RN6#,VZN6#..HLF..CBU

FR

 1
65687 - MUDGUARD, WHEEL HOUSE, RH
65677-89103

LN6#,RN6#,VZN6#..HLF..CBU

RR

 1
65675-89109

LN6#,RN6#,VZN6#..HLF..CBU

FR

 1
65688 - MUDGUARD, WHEEL HOUSE, LH
65676-89102

LN6#,RN6#,VZN6#..HLF..CBU

FR

 1
65678-89107

LN6#,RN6#,VZN6#..HLF..CBU

RR

 1
65688 - MUDGUARD, WHEEL HOUSE, LH
65676-89102

LN6#,RN6#,VZN6#..HLF..CBU

FR

 1
65678-89107

LN6#,RN6#,VZN6#..HLF..CBU

RR

 1
Common parts
90159-40073
90159-60232
90167-35009
90179-08143
90189-04042
90189-06050
90467-09042
90467-10005
90540-09060
90950-01353
90950-01433
90950-01567
91631-40614
93270-18016
93270-18025
93385-15010
94110-40800
Linked diagrams
6552
7751
7950
