RN65L-MSCEA (1984)

Toyota 4-Runner Truck

Production Aug 1984 - Aug 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )LN6#,RN6#..5F..EFI,TD

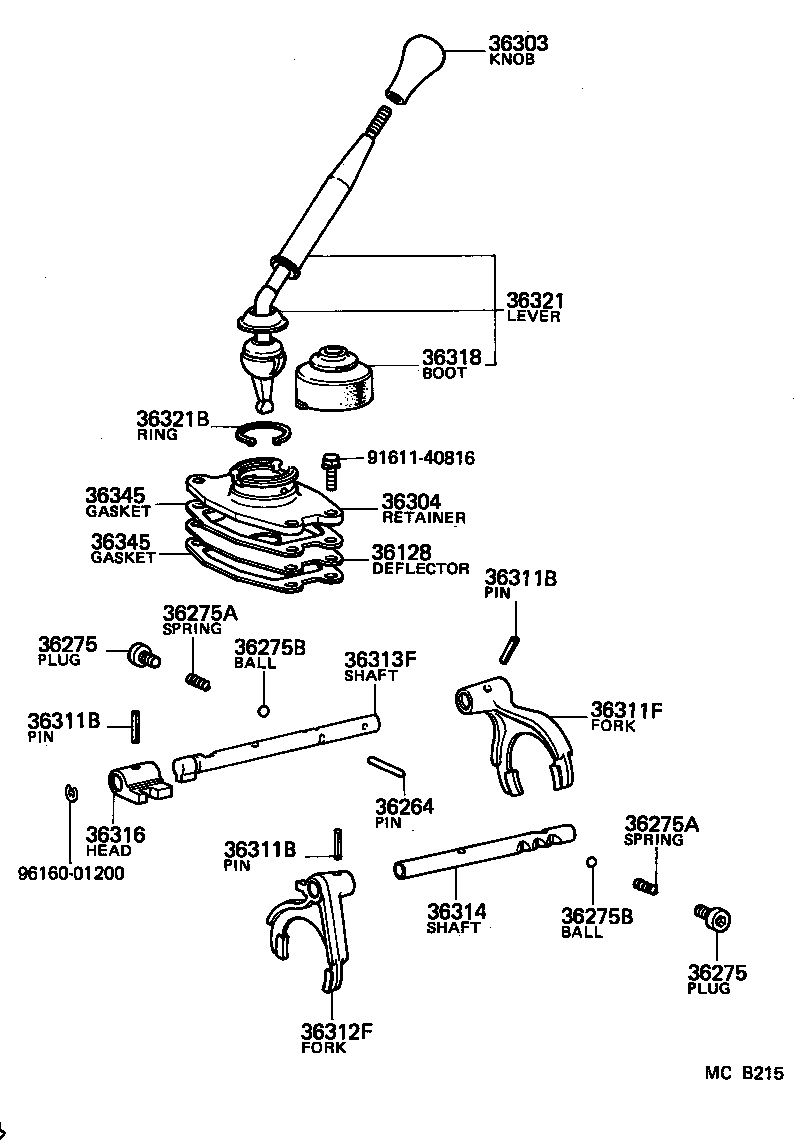

Click highlighted areas on diagram

diagram 36128 36264 36275 36275 36275A 36275A 36275B 36275B 36303 36304 36311B 36311B 36311B 36311F 36312F 36313F 36314 36316 36318 36321 36321B 36345 36345 9161140816 9616001200
Part # Description Qty Price
36264 - PIN OR ROLLER, SHIFT INTER-LOCK
90250-06005

LN6#,RN6#..5F

L=30.8,OD=6

 1
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-10064

LN6#,RN6#..5F

 2
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-10064

LN6#,RN6#..5F

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-13001

LN6#,RN6#..5F

L=16.5

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-13001

LN6#,RN6#..5F

L=16.5

 2
36275B - BALL, SHIFT DETENT
90360-08009

LN6#,RN6#..5F

OD=7.94,STEEL

 2
36275B - BALL, SHIFT DETENT
90360-08009

LN6#,RN6#..5F

OD=7.94,STEEL

 2
36303 - KNOB SUB-ASSY, SHIFT LEVER
36303-35020

LN6#,RN6#..5F

 1
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

LN66,RN6#,VZN6#..5F

L=22

 2
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

LN66,RN6#,VZN6#..5F

L=22

 2
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

LN66,RN6#,VZN6#..5F

L=22

 2
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
36311-35010

LN6#,RN6#..5F

 1
36318 - BOOT, TRANSFER FRONT DRIVE SHIFT
33555-20060

LN6#,RN6#..5F

 1
36321 - LEVER, TRANSFER FRONT DRIVE SHIFT
36360-35030

LN65,RN6#..G,R

 1
36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
90521-49003

LN6#,RN6#,VZN6#..5F

 1
Common parts
91611-40816
96160-01200
