RN65L-MSCA3 (1983)

Toyota 4-Runner Truck

Production Sep 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)RN6#..DLX,SR5 ; (8408- )RN6#

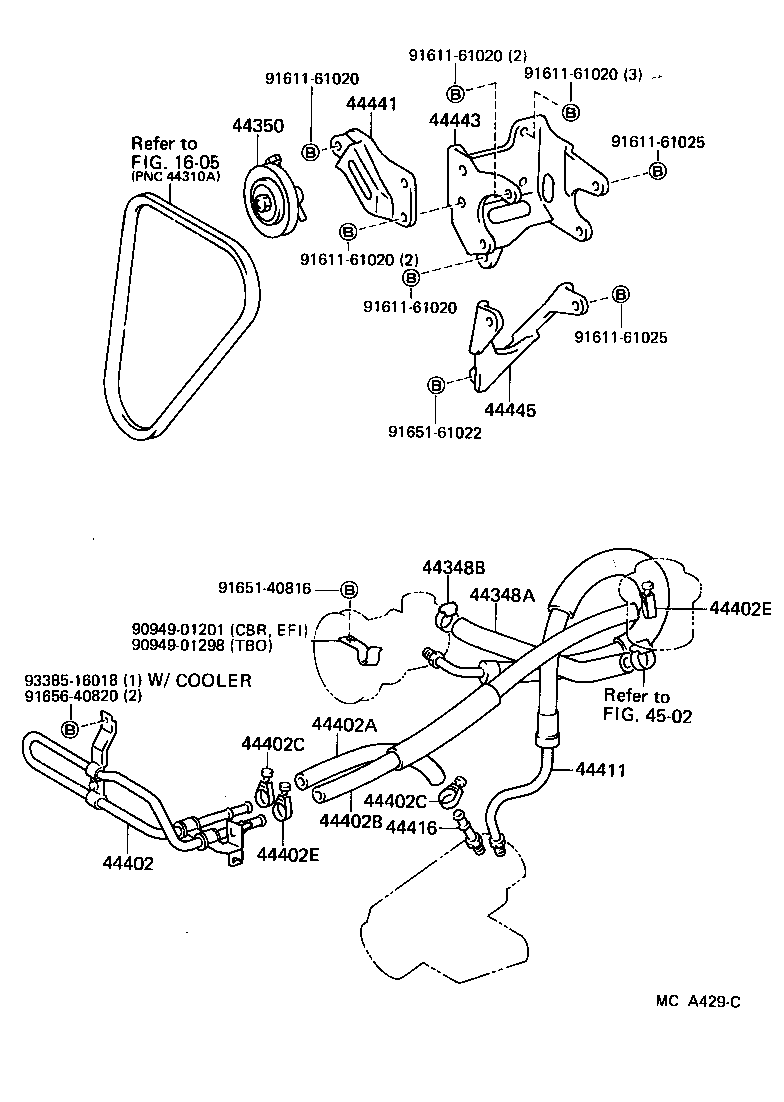

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44350 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44441 44443 44445 4502 9094901201 9094901298 9161161020 9161161020 9161161020 9161161020 9161161020 9161161025 9161161025 9165140816 9165161022 9165640820 9338516018
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35040

RN5#,6#..(4FC,5F)..(DLX,SR5)

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5)

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20020

RN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..(DLX,SR5)..HLF

 1
44350-20020

RN5#,6#..(4FC,5F)..(DLX,SR5)

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44420-35030

RN5#,6#..(4FC,5F)..(DLX,SR5)

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18128

RN6#..DLX,SR5

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90447-18017

RN5#,6#..(4FC,5F)..(DLX,SR5)

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

RN5#,6#..(4FC,5F)..(DLX,SR5)

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

RN5#,6#..(4FC,5F)..(DLX,SR5)

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

RN5#,6#..(4FC,5F)..(DLX,SR5)

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

RN5#,6#..(4FC,5F)..(DLX,SR5)

 2
44411 - HOSE, PRESSURE FEED
44411-35080

RN6#..DLX,SR5

 1
44411-35060

LN56,6#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35020

LN56,RN5#,6#..(4FC,5F)..(DLX,SR5)

 1
44441 - BRACKET, PUMP, FRONT
44441-20010

RN5#,6#..(4FC,5F)..(DLX,SR5)

 1
44441-35011

LN56,6#

 1
44443 - BRACKET, PUMP
44443-20031

RN5#,6#..(DLX,SR5)..HLF

 1
44443-35011

LN56,6#

 1
44445 - BRACKET, PUMP, LOWER
44445-20010

RN5#,6#..(DLX,SR5)..HLF

 1
Common parts
90949-01201
90949-01298
91611-61020
91611-61025
91651-40816
91651-61022
91656-40820
93385-16018
Linked diagrams
1605
4502
