RN65L-MDK (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

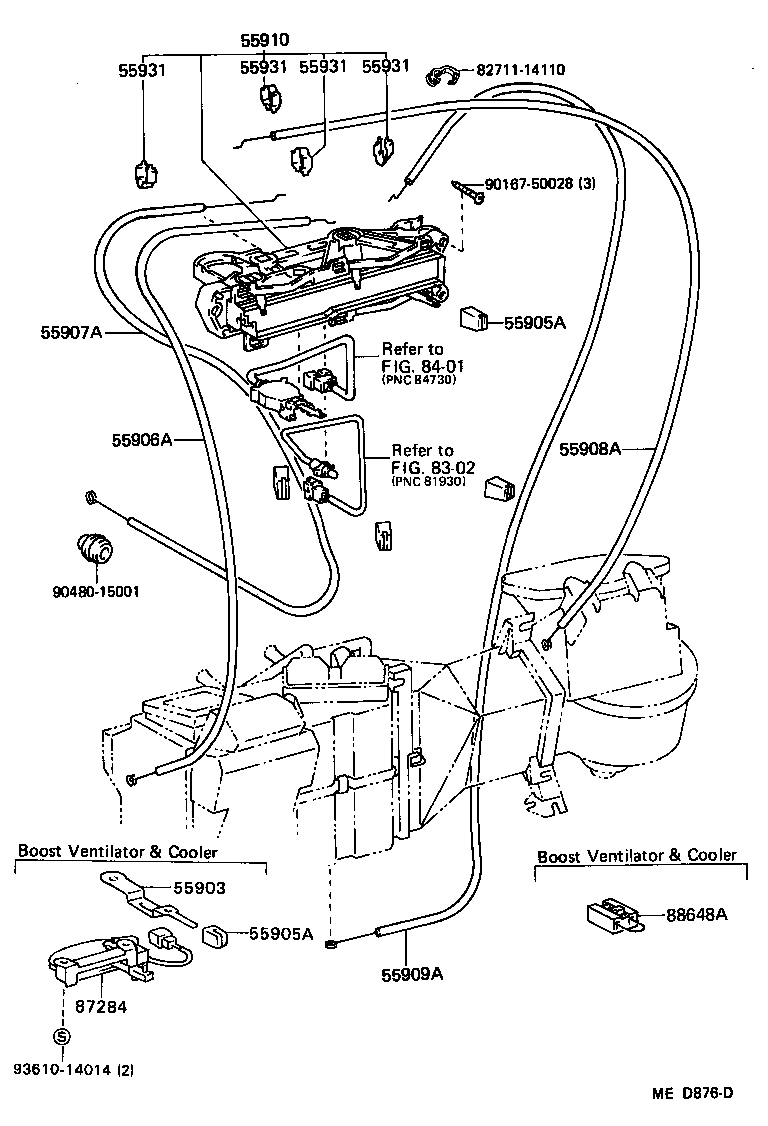

diagram 55903 55905A 55905A 55906A 55907A 55908A 55909A 55910 55931 55931 55931 55931 8271114110 8302 8401 87284 88648A 9016750028 9048015001 9361014014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-89110

LN5#,6#,RN5#,6#,7#,VZN6#

 4
55905A - KNOB, HEATER CONTROL
55905-89110

LN5#,6#,RN5#,6#,7#,VZN6#

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-89110

LN5#,6#,RN5#,6#,7#,VZN6#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-89116

LN5#,6#,RN5#,6#,7#,VZN6#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-89105

LN5#,6#,RN5#,6#,7#,VZN6#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-89110

LN5#,6#,RN5#,6#,7#,VZN6#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-89121

LN5#,6#,RN5#,6#,7#,VZN6#

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

LN5#,6#,RN5#,6#,7#,VZN6#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

LN5#,6#,RN5#,6#,7#,VZN6#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

LN5#,6#,RN5#,6#,7#,VZN6#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

LN5#,6#,RN5#,6#,7#,VZN6#

 4
Common parts
82711-14110
90167-50028
90480-15001
93610-14014
Linked diagrams
8302
8401

(8308- )

Click highlighted areas on diagram

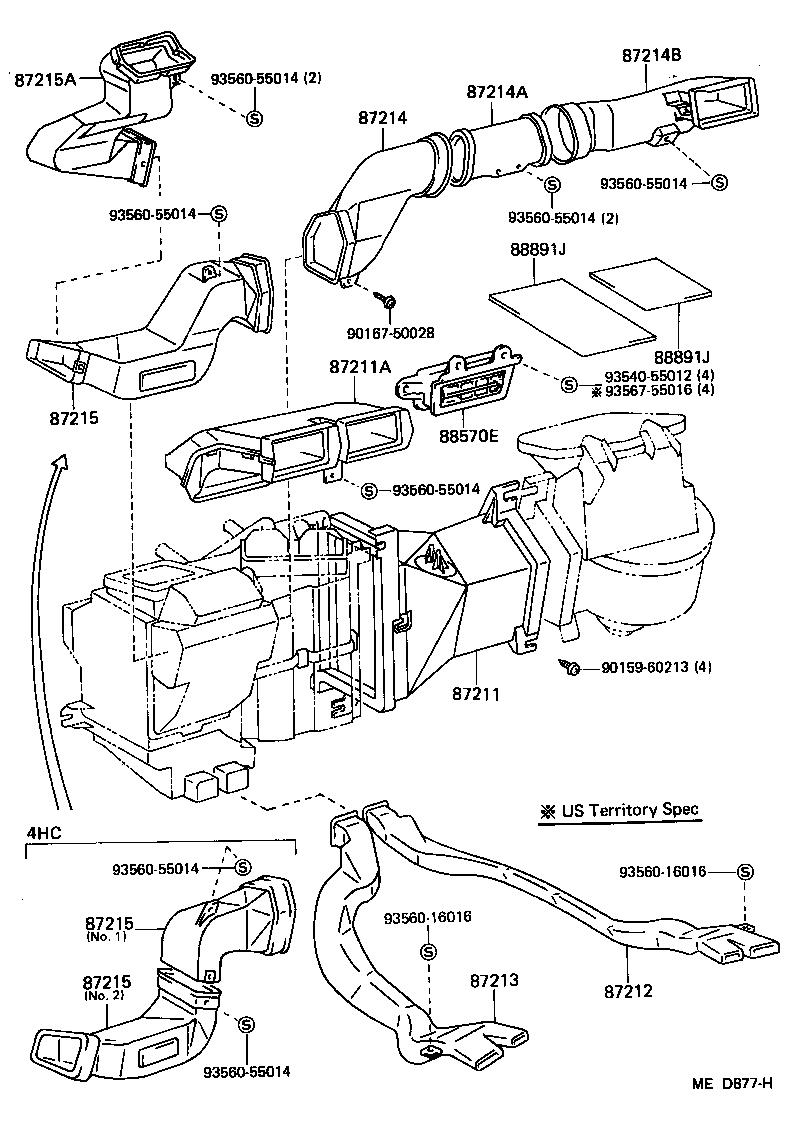

diagram 87211 87211A 87212 87213 87214 87214A 87214B 87215 87215 87215 87215A 88570E 88891J 88891J 9015960213 9016750028 9354055012 9356016016 9356016016 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356755016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87211-89106

LN5#,6#,RN5#,6#,7#,VZN6#

 1
87211A - DUCT, AIR, NO.2
55835-89106

LN5#,6#,RN5#,6#,7#

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55845-89106

LN5#,6#,RN5#,6#,7#,VZN6#

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55846-89105

LN5#,6#,RN5#,6#,7#

 1
87214B - DUCT, AIR, SIDE NO.3 RH
55847-89106

LN5#,6#,RN5#,6#,7#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55843-89106

LN5#,6#,RN5#,6#,7#..4F,4FC,5F

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55843-89106

LN5#,6#,RN5#,6#,7#..4F,4FC,5F

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55843-89106

LN5#,6#,RN5#,6#,7#..4F,4FC,5F

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55844-89106

LN5#,6#,RN5#,6#,7#

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-89104

LN56,6#,RN5#,6#,7#,VZN6#

 1
88891J - PACKING
88578-89105

LN56,6#,RN5#,6#,7#

120X120

 1
88578-89106

LN56,6#,RN5#,6#,7#

150X260

 1
88891J - PACKING
88578-89105

LN56,6#,RN5#,6#,7#

120X120

 1
88578-89106

LN56,6#,RN5#,6#,7#

150X260

 1
Common parts
90159-60213
90167-50028
93540-55012
93560-16016
93560-55014
93567-55016
