RN65L-MDCA (1984)
Toyota 4-Runner Truck
Production
Aug 1984
-
Aug 1985
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8508)LN65,RN6#..HLF

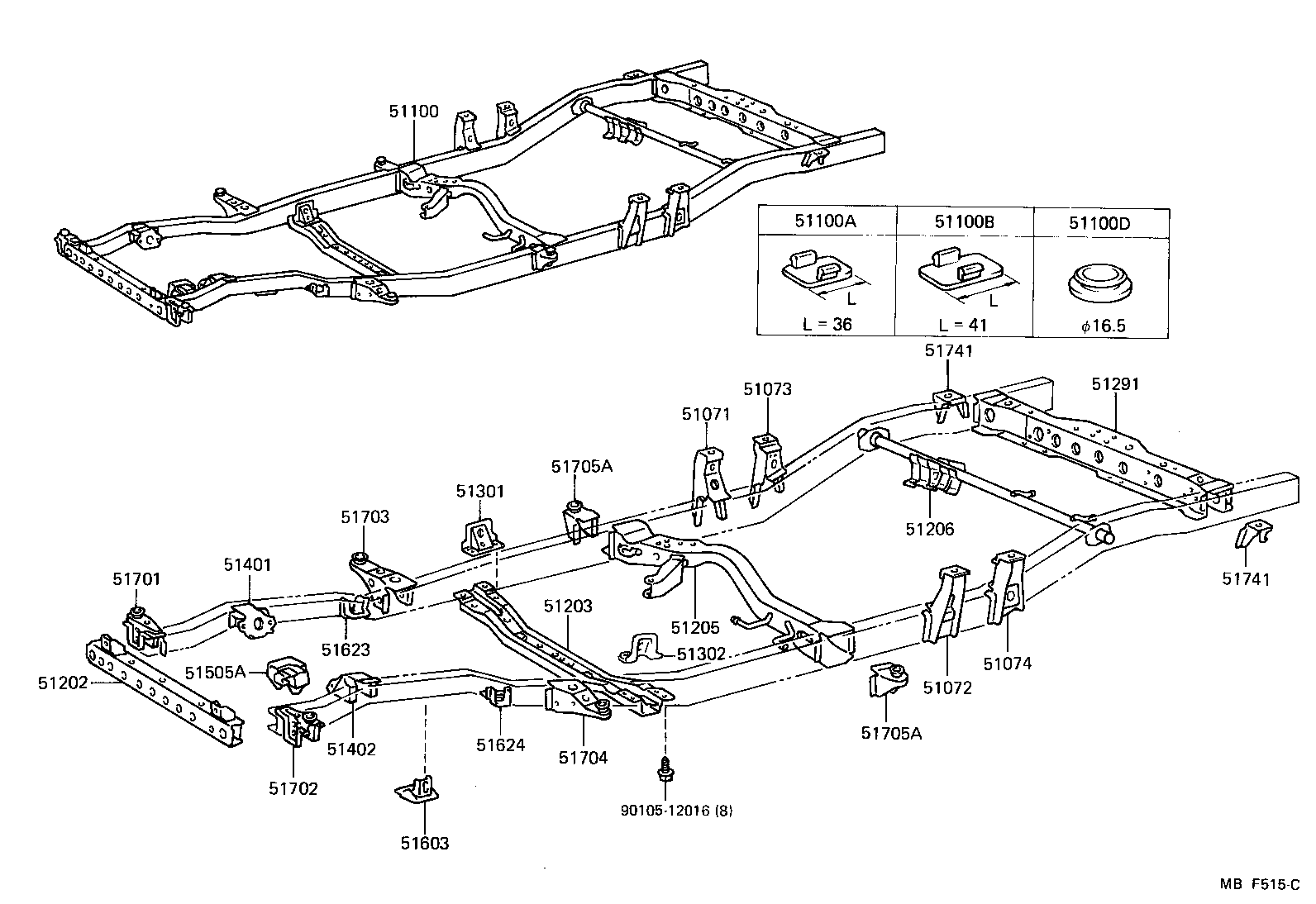

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-35010 |
LN5#,6#,RN5#,6#,7#,VZN6#..T1 |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-35010 |
LN5#,6#,RN5#,6#,7#,VZN6#..T1 |
1 | ||
| 51100A - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01394 |
LN5#,65,RN5#,6# |
4 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LN5#,65,RN5#,6# |
2 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-35120 |
LN65,RN6# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-35170 |
LN65,RN6# |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-35250 |
LN65,RN6#..HLF |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-35130 |
LN65,RN6#..HLF |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51291-35080 |
LN5#,65,RN5#,6#..T1 |
1 | ||
| 51301 - BRACKET, FRAME NO.2 CROSSMEMBER, RH | ||||
| 51321-35050 |
LN6#,RN6# |
1 | ||
| 51302 - BRACKET, FRAME NO.2 CROSSMEMBER, LH | ||||
| 51321-35050 |
LN6#,RN6# |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-35200 |
LN65,RN6# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-35190 |
LN65,RN6# |
1 | ||
| 51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM | ||||
| 51505-35042 |
LN65,RN6# |
1 | ||
| 51603 - BRACKET SUB-ASSY, FRONT SUSPENSION BOUND | ||||
| 51603-35020 |
LN65,RN6# |
2 | ||
| 51623 - BRACKET, FRONT SPRING BOUND STOPPER, RH | ||||
| 51623-35020 |
LN65,RN6# |
1 | ||
| 51624 - BRACKET, FRONT SPRING BOUND STOPPER, LH | ||||
| 51624-35020 |
LN65,RN6# |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-35090 |
LN65,RN6# |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-35090 |
LN65,RN6# |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-35040 |
RN60..IV;RN60..V,WG;LN5#,65,RN5#,65;RN60..(DLX,STD)..HLF..CBU |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-35060 |
RN60..IV;RN60..V,WG;LN5#,65,RN5#,65;RN60..(DLX,STD)..HLF..CBU |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-35080 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-35080 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
LN5#,6#,RN5#,6#,7#,VZN6#..T1 |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
LN5#,6#,RN5#,6#,7#,VZN6#..T1 |
2 | ||
| Common parts | ||||
| 90105-12016 | ||||
