RN65L-MDA (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408) ; (8408- )RN55..HLF..CBR,EFI ; (8408- )LN5#,6#,RN50,6#,70,VZN6#..

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44731 44731A 44731A 44732 44735C 44735C 44785 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-35380

LN5#,65

 1
04443-35340

RN50,6#;RN55..HLF..(CBR,EFI)

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

LN5#,65,RN5#,6#

 1
44605-22021

RN55..HLF;LN5#,65,RN50,6#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

RN55..HLF..(CBR,EFI);LN5#,6#,RN50,6#,70..DLX,SR5,STD

 1
44610 - BOOSTER ASSY, BRAKE
44610-35580

LN5#,65

 1
44610-35580

LN5#,65,RN50,6#;RN55..HLF..(CBR,EFI)

 1
44610-35520

RN50,6#;RN55..HLF

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

LN5#,65,RN5#,6#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32020

RN55..HLF;LN5#,65,RN50,6#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

RN55..HLF;LN5#,65,RN50,6#

 1
44645-22020

LN5#,65,RN5#,6#

 1
44673A - BODY, BOOSTER VALVE
44673-16060

LN5#,65,RN50,6#;RN55..HLF..(CBR,EFI)

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN5#,6#,RN5#,6#,7#,VZN6#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

LN5#,6#,RN5#,6#,7#,VZN6#

 1
Common parts
90179-08038

(8308- )LN5#,RN6#,7#

Click highlighted areas on diagram

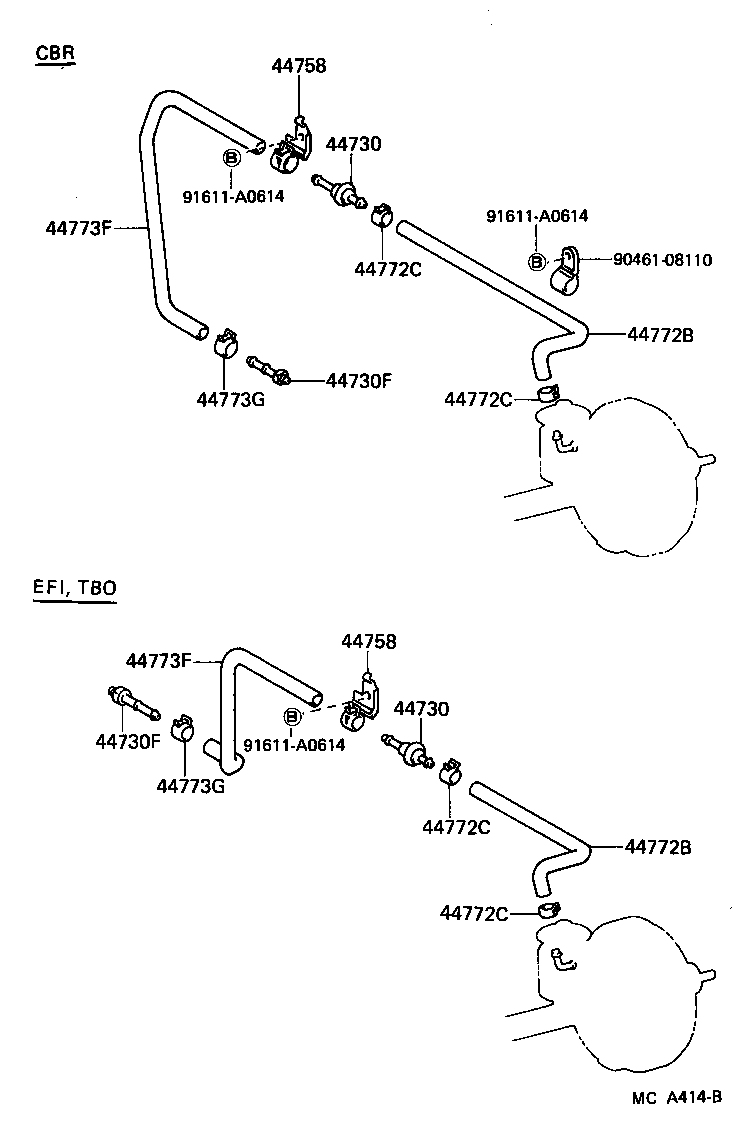

diagram 44730 44730 44730F 44730F 44758 44758 44772B 44772B 44772C 44772C 44772C 44772C 44773F 44773F 44773G 44773G 9046108110 91611A0614 91611A0614 91611A0614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

LN5#,6#

 1
44730-10010

RN5#,6#,7#..CBR,EFI

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

LN5#,6#

 1
44730-10010

RN5#,6#,7#..CBR,EFI

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51039

RN5#,6#,70..CBR

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51039

RN5#,6#,70..CBR

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-35080

RN5#,6#,7#..CBR,EFI

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-35080

RN5#,6#,7#..CBR,EFI

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-35080

RN50,6#..CBR;RN55..HLF..CBR

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-35080

RN50,6#..CBR;RN55..HLF..CBR

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

RN5#,6#,7#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

RN5#,6#,7#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

RN5#,6#,7#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

RN5#,6#,7#

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-35210

RN5#,6#,70..CBR

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-35210

RN5#,6#,70..CBR

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

LN5#,6#,RN5#,6#,7#,VZN6#

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

LN5#,6#,RN5#,6#,7#,VZN6#

 2
Common parts
90461-08110
91611-A0614

(8308- )LN5#,RN6#

Click highlighted areas on diagram

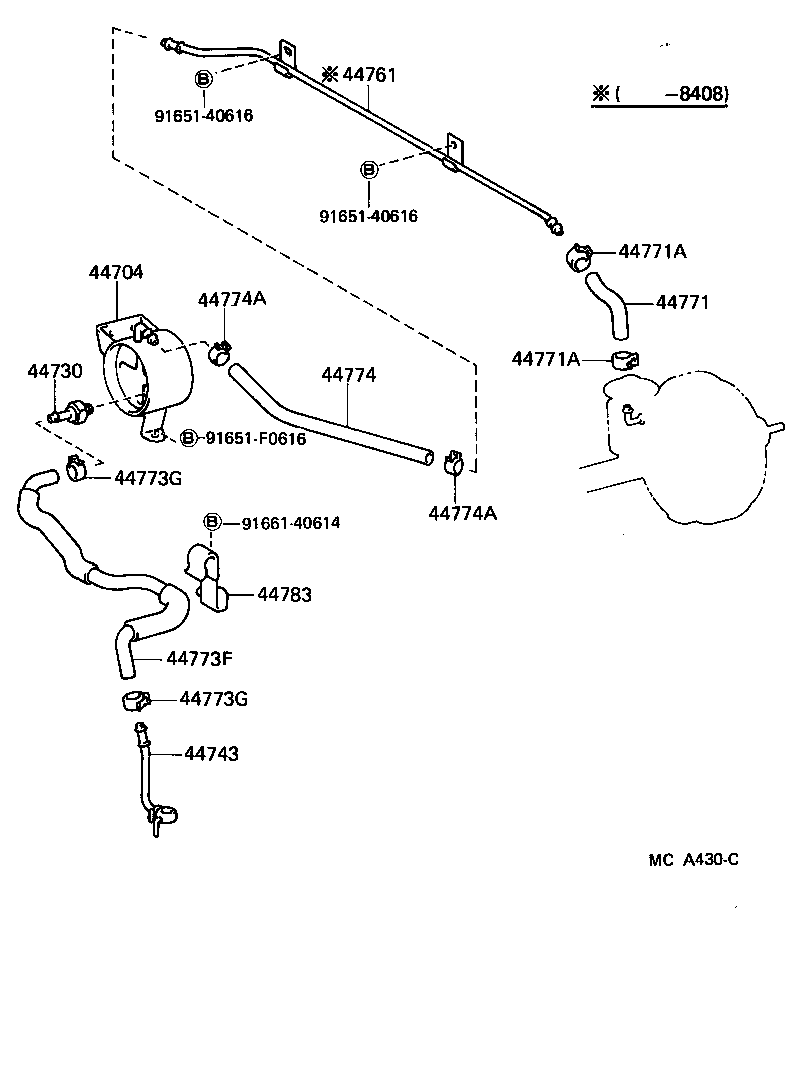

diagram 44704 44730 44743 44761 44771 44771A 44771A 44773F 44773G 44773G 44774 44774A 44774A 44783 9165140616 9165140616 91651F0616 9166140614
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-35030

LN5#,6#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

LN5#,6#

 1
44730-10010

RN5#,6#,7#..CBR,EFI

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09081

LN56,65

W/COOLER

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-35050

LN5#,65

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-35030

LN5#,6#

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16002

LN5#,6#

 2
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16002

LN5#,6#

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-35210

RN5#,6#,70..CBR

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

LN5#,6#,RN5#,6#,7#,VZN6#

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

LN5#,6#,RN5#,6#,7#,VZN6#

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44771-35020

LN5#,65

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

LN5#,6#

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

LN5#,6#

 2
Common parts
91651-40616
91651-F0616
91661-40614
