RN61LV-PGZK (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1986
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LN66,RN6#,VZN6#

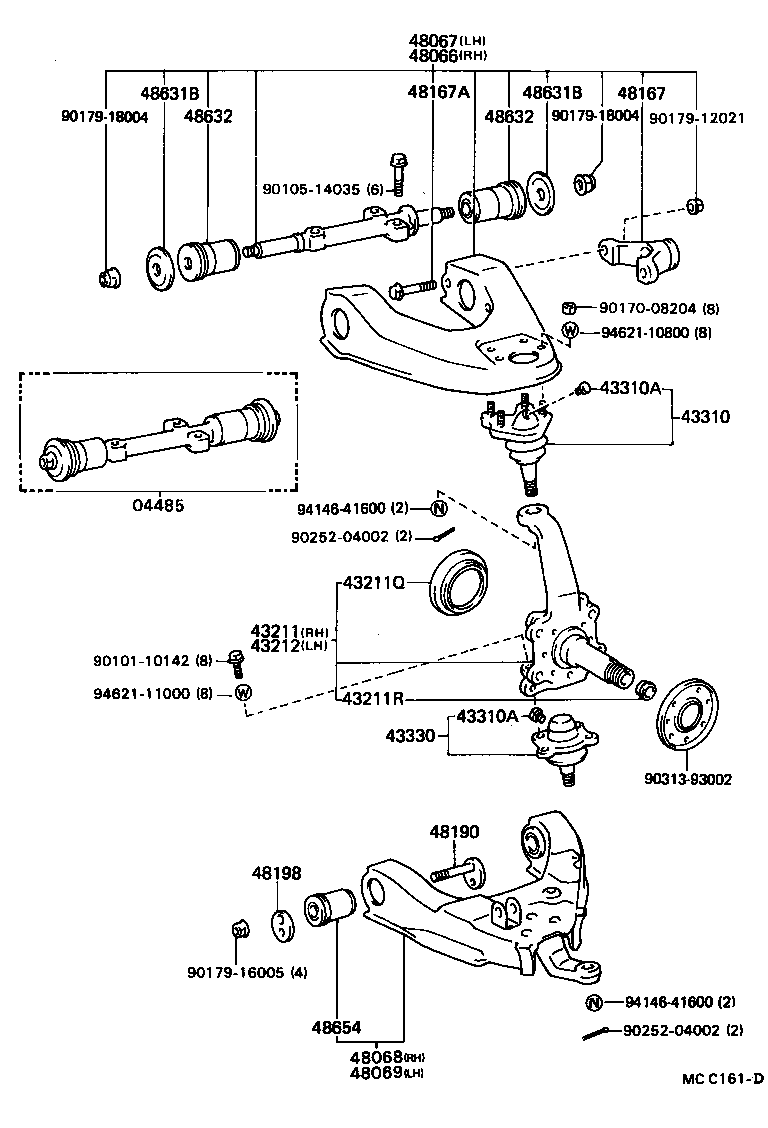

Click highlighted areas on diagram

diagram 04485 43211 43211Q 43211R 43212 43310 43310A 43310A 43330 48066 48067 48068 48069 48167 48167A 48190 48198 48631B 48631B 48632 48632 48654 9010110142 9010514035 9017008204 9017912021 9017916005 9017918004 9017918004 9025204002 9025204002 9031393002 9414641600 9414641600 9462110800 9462111000
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-35090

LN65,RN6#

REFER TO ILLUST.

 1
43212 - KNUCKLE, STEERING, LH
43212-35050

LN65,RN6#

REFER TO ILLUST.

 1
43310A - PLUG (FOR BALL JOINT)
90345-06014

LN5#,66,RN5#,61,66,7#,VZN6#

 2
43310A - PLUG (FOR BALL JOINT)
90345-06014

LN5#,66,RN5#,61,66,7#,VZN6#

 2
48654 - BUSH, LOWER ARM
48061-35010

LN66,RN6#

 4
Common parts
90101-10142
90105-14035
90170-08204
90179-12021
90179-16005
90179-18004
90252-04002
90313-93002
94146-41600
94621-10800
94621-11000
