RN61LV-PGZK (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1986
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)22R

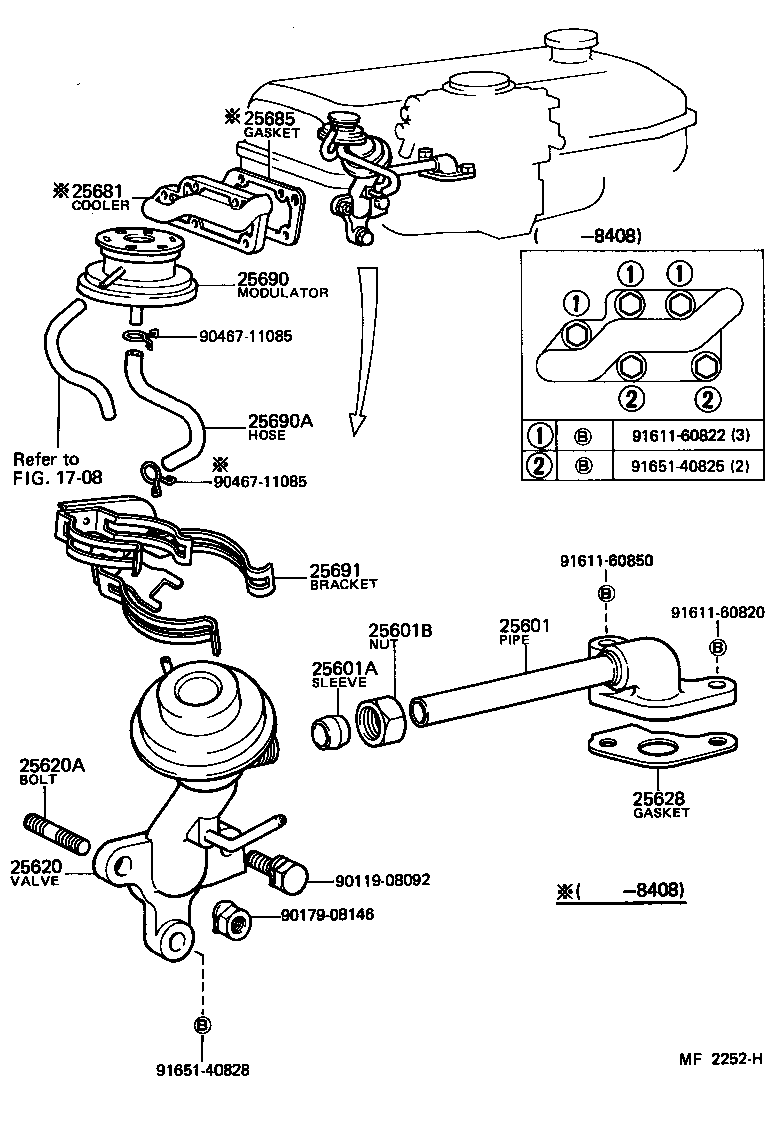

Click highlighted areas on diagram

diagram 1708 25601 25601A 25601B 25620 25620A 25628 25681 25685 25690 25690A 25691 9011908092 9017908146 9046711085 9046711085 9161160820 9161160822 9161160850 9165140825 9165140828
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-38010

22R..RN5#,6#,70

 1
25601-35010

22REC,22RTEC..RN5#,6#,75

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044

22R#..RN5#,6#,7#

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081

22R#..RN5#,6#,7#

 1
25620 - VALVE ASSY, EGR
25620-35170

22RTEC..RN61..SRT

 1
25620-35090

22R..RN5#,6#,70

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08207

22R#..RN5#,6#

 2
25628 - GASKET, EGR INLET
25628-38010

22R..RN5#,6#,70

 1
25628-35010

22REC,22RTEC..RN5#,6#,7#

 1
25681 - COOLER, EGR, NO.1
11181-35020

22R#..RN5#,6#

 1
25685 - GASKET, EGR COOLER, NO.1
11182-35010

22R#..RN5#,6#

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-35010

22REC,22RTEC..RN5#,6#,7#

 1
90910-05147

22R..RN5#,6#,70

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-35010

22R..RN5#,6#,70

 1
Common parts
90119-08092
90179-08146
90467-11085
91611-60820
91611-60822
91611-60850
91651-40825
91651-40828
Linked diagrams
1708
