RN61LV-PDEA (1985)
Toyota 4-Runner Truck
(8508-8903)LN66,RN6#,VZN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

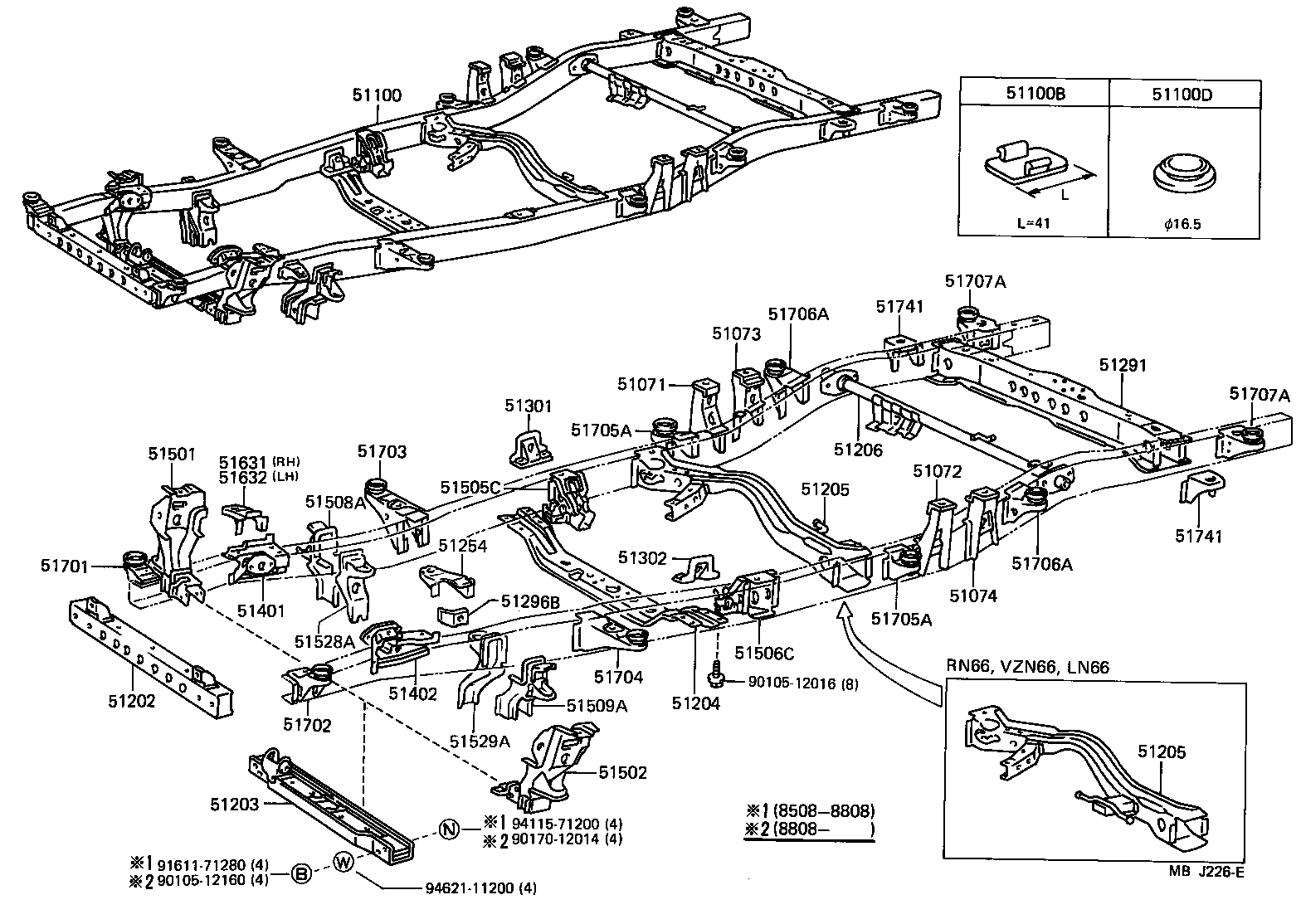

| 51100 - FRAME ASSY | ||||
| 51003-35090 |
RN61..V,WG |
1 | ||
| 51001-3D820 |
RN61..4FC |
1 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LN5#,65,RN5#,6# |
2 | ||
| 90950-01642 |
RN61,VZN61 |
6 | ||
| 90950-01395 |
LN66,RN6# |
6 | ||
| 90950-01395 |
LN56,66,RN5#,6#,7#,VZN6# |
6 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-35120 |
LN65,RN6# |
1 | ||
| 51201-35140 |
LN66,RN6#,VZN6# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-35170 |
LN65,RN6# |
1 | ||
| 51203-35270 |
RN61,VZN61 |
1 | ||
| 51203-35260 |
LN66,RN6#,VZN6# |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51202-35210 |
RN6# |
1 | ||
| 51202-35171 |
LN66,RN6# |
1 | ||
| 51202-35250 |
RN61..4FC |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-35310 |
RN61..V,WG |
1 | ||
| 51204-35311 |
RN61 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-35310 |
RN61..V,WG |
1 | ||
| 51204-35311 |
RN61 |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-35161 |
RN61,VZN61..V,WG |
1 | ||
| 51254 - BRACKET, DIFFERENTIAL SUPPORT, LH | ||||
| 51254-35010 |
LN66,RN6#,VZN6# |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51209-35111 |
RN61,VZN61..V,WG |
1 | ||
| 51209-35112 |
RN61,VZN61 |
1 | ||
| 51296B - REINFORCEMENT, DIFFERENTIAL BRACKET, LH | ||||
| 51296-35010 |
LN66,RN6# |
1 | ||
| 51301 - BRACKET, FRAME NO.2 CROSSMEMBER, RH | ||||
| 51321-35090 |
LN66,RN6# |
1 | ||
| 51321-35050 |
LN6#,RN6# |
1 | ||
| 51321-35050 |
RN6#,VZN6# IFS |
1 | ||
| 51302 - BRACKET, FRAME NO.2 CROSSMEMBER, LH | ||||
| 51321-35050 |
LN6#,RN6# |
1 | ||
| 51321-35090 |
LN66,RN6#,VZN6# |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-35200 |
LN65,RN6# |
1 | ||
| 51047-35011 |
LN66,RN6# |
1 | ||
| 51047-35070 |
RN61 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51048-35011 |
LN66,RN6# |
1 | ||
| 51048-35070 |
RN61 |
1 | ||
| 51402-35190 |
LN65,RN6# |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-35030 |
RN61,VZN61 |
1 | ||
| 51501-35030 |
LN66,RN6# |
1 | ||
| 51501-35040 |
LN66,RN6#,VZN6# |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-35030 |
RN61,VZN61 |
1 | ||
| 51502-35040 |
LN66,RN6#,VZN6# |
1 | ||
| 51502-35030 |
LN66,RN6# |
1 | ||
| 51505C - SUPPORT SUB-ASSY, ANCHOR ARM, RH | ||||
| 51505-35060 |
RN61,VZN61 |
1 | ||
| 51505-35080 |
RN61,VZN61 |
1 | ||
| 51506C - SUPPORT SUB-ASSY, ANCHOR ARM, LH | ||||
| 51506-35010 |
LN66,RN6#,VZN6# |
1 | ||
| 51506-35020 |
RN61,VZN61 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-35900 |
LN66,RN6#,VZN6# |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-35900 |
LN66,RN6#,VZN6# |
1 | ||
| 51528A - REINFORCEMENT, LOWER ARM BRACKET, RH | ||||
| 51528-35900 |
LN66,RN6#,VZN6# |
1 | ||
| 51529A - REINFORCEMENT, LOWER ARM BRACKET, LH | ||||
| 51529-35900 |
LN66,RN6#,VZN6# |
1 | ||
| 51631 - STOPPER, FRONT SUSPENSION REBOUND, RH | ||||
| 51631-35040 |
LN66,RN6#,VZN6# |
1 | ||
| 51632 - STOPPER, FRONT SUSPENSION REBOUND, LH | ||||
| 51631-35040 |
LN66,RN6#,VZN6# |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-35090 |
LN65,RN6# |
1 | ||
| 51701-35100 |
LN66,RN6#,VZN6# |
1 | ||
| 51701-35101 |
RN61,VZN61 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-35081 |
RN61,VZN61 |
1 | ||
| 51701-35090 |
LN65,RN6# |
1 | ||
| 51702-35080 |
LN66,RN6#,VZN6# |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-35050 |
LN66,RN6#,VZN6# |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-35070 |
LN66,RN6#,VZN6# |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-35080 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-35080 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 51706A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 | ||||
| 51707-35051 |
RN61,VZN61..V,WG RH |
1 | ||
| 51708-35051 |
RN61,VZN61..V,WG LH |
1 | ||
| 51706A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 | ||||
| 51707-35051 |
RN61,VZN61..V,WG RH |
1 | ||
| 51708-35051 |
RN61,VZN61..V,WG LH |
1 | ||
| 51707A - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 | ||||
| 51709-35011 |
RN61,VZN61..V,WG |
2 | ||
| 51707A - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 | ||||
| 51709-35011 |
RN61,VZN61..V,WG |
2 | ||
| Common parts | ||||
| 90105-12016 | ||||
| 90105-12160 | ||||
| 90170-12014 | ||||
| 91611-71280 | ||||
| 94115-71200 | ||||
| 94621-11200 | ||||
