RN61LV-PDEA (1985)
Toyota 4-Runner Truck
Production
Aug 1985
-
Mar 1989
Engine
22REC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8608)RN61,66..4FC..EFI ; (8308-8608)RN5#,60,65,7#..ATM ; (8608- )RN5#,70..

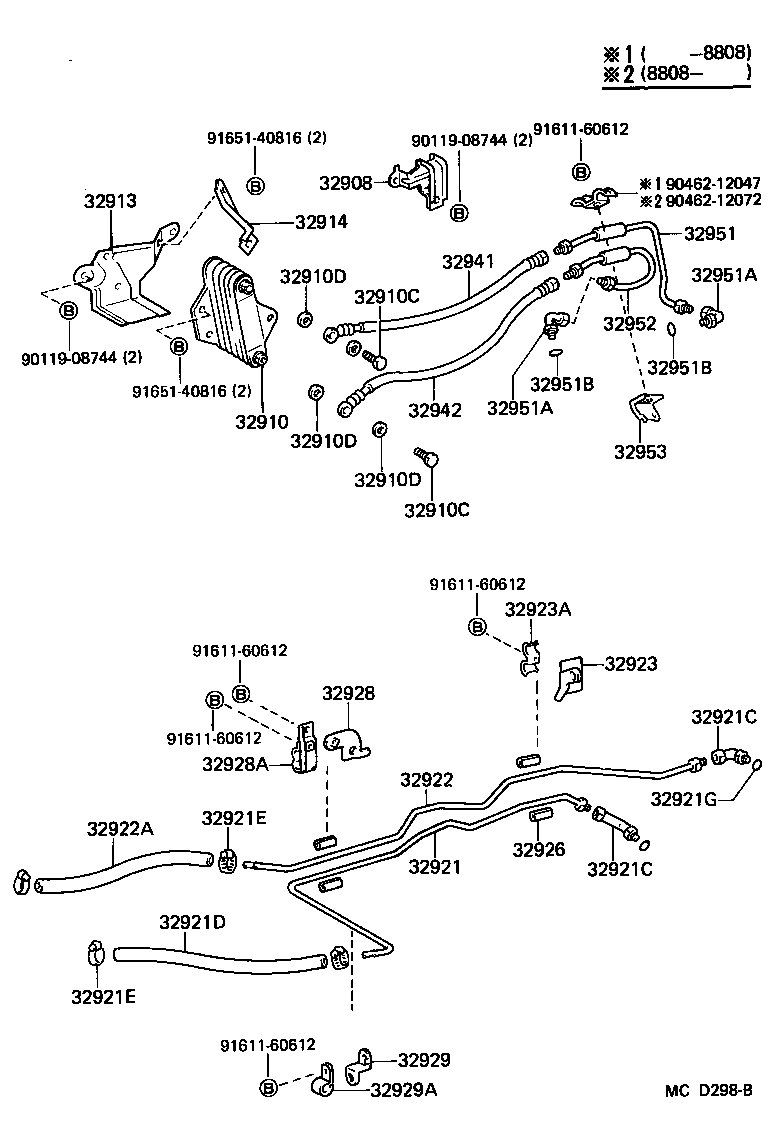

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-35101 |
RN6#..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-35101 |
RN6#..4FC |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15021 |
RN61..4FC |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90467-13039 |
RN61 |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-35111 |
RN6#..4FC |
1 | ||
| 32922-35112 |
RN6#..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-16017 |
RN6#..4FC |
1 | ||
| 90445-16019 |
RN6#..4FC |
1 | ||
| 90445-15018 |
RN61..4FC |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 32909-35030 |
RN61..4FC |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 32909-35030 |
RN61..4FC |
1 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-20070 |
RN5#,6#,7#..ATM |
1 | ||
| Common parts | ||||
| 91611-40612 | ||||
| 91611-60612 | ||||
(8508-8608)RN6#..SRT ; (8608- )RN6#..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32908 - CLAMP SUB-ASSY, OIL COOLER HOSE | ||||
| 32908-35010 |
RN6#,VZN6#..4FC |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-35010 |
RN6#,VZN6#..4FC |
1 | ||
| 32910C - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-14003 |
RN6#,VZN6#..4FC |
2 | ||
| 32910C - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-14003 |
RN6#,VZN6#..4FC |
2 | ||
| 32910D - GASKET(FOR OIL COOLER) | ||||
| 90430-14235 |
RN6#,VZN6#..4FC |
4 | ||
| 32910D - GASKET(FOR OIL COOLER) | ||||
| 90430-14235 |
RN6#,VZN6#..4FC |
4 | ||
| 32910D - GASKET(FOR OIL COOLER) | ||||
| 90430-14235 |
RN6#,VZN6#..4FC |
4 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-35010 |
RN6#,VZN6#..4FC |
1 | ||
| 32914 - STAY, OIL COOLER | ||||
| 32914-35010 |
RN6#,VZN6#..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-35101 |
RN6#..4FC |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15021 |
RN61..4FC |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90467-13039 |
RN61 |
4 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90467-13039 |
RN61 |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-35111 |
RN6#..4FC |
1 | ||
| 32922-35112 |
RN6#..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-16017 |
RN6#..4FC |
1 | ||
| 90445-16019 |
RN6#..4FC |
1 | ||
| 90445-15018 |
RN61..4FC |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 32909-35030 |
RN61..4FC |
1 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-20070 |
RN5#,6#,7#..ATM |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-35010 |
RN6#..4FC |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-35020 |
RN6#..4FC |
1 | ||
| 32951 - TUBE, TRANSFER OIL COOLER INLET | ||||
| 32951-35010 |
RN6#,VZN6#..4FC |
1 | ||
| 32951A - ELBOW(FOR TRANSFER OIL COOLER TUBE) | ||||
| 90407-16010 |
RN6#,VZN6#..4FC |
2 | ||
| 32951A - ELBOW(FOR TRANSFER OIL COOLER TUBE) | ||||
| 90407-16010 |
RN6#,VZN6#..4FC |
2 | ||
| 32951B - RING, O(FOR TRANSFER OIL COOLER TUBE) | ||||
| 90301-10189 |
RN6#,VZN6#..4FC |
2 | ||
| 32951B - RING, O(FOR TRANSFER OIL COOLER TUBE) | ||||
| 90301-10189 |
RN6#,VZN6#..4FC |
2 | ||
| 32952 - TUBE, TRANSFER OIL COOLER OUTLET | ||||
| 32952-35010 |
RN6#,VZN6#..4FC |
1 | ||
| 32953 - CLAMP, TRANSFER OIL COOLER | ||||
| 32953-35010 |
RN6#,VZN6#..4FC |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90462-12047 | ||||
| 90462-12072 | ||||
| 91611-60612 | ||||
| 91651-40816 | ||||
