RN61LG-PGZA (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1987
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )RN6#..TBO

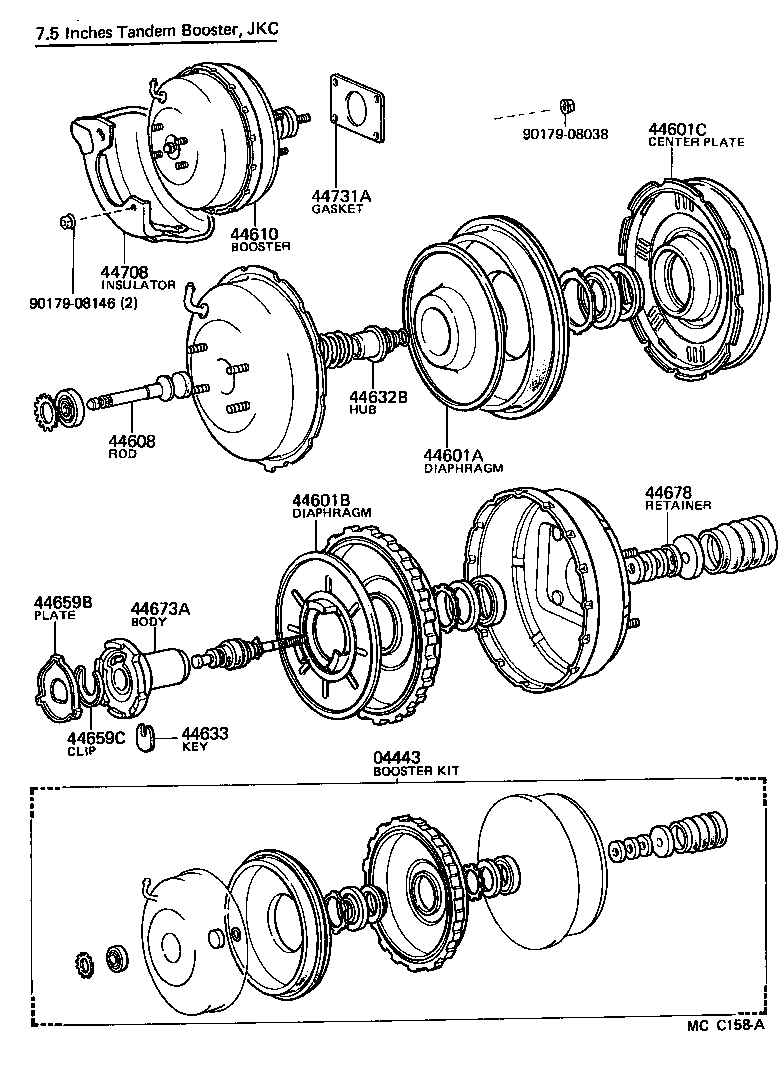

Click highlighted areas on diagram

diagram 04443 44601A 44601B 44601C 44608 44610 44632B 44633 44659B 44659C 44673A 44678 44708 44731A 9017908038 9017908146
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-35340

RN50,6#;RN55..HLF..(CBR,EFI)

 1
44601A - DIAPHRAGM PLATE SUB-ASSY, BOOSTER, FRONT
44609-30440

RN6#..TBO

 1
44601C - CENTER PLATE SUB-ASSY, BOOSTER
44606-30440

RN6#..TBO

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-30440

RN6#..TBO

 1
44610 - BOOSTER ASSY, BRAKE
44610-35520

RN50,6#;RN55..HLF

 1
44610-35820

RN6#..TBO

 1
44632B - HUB, BOOSTER REACTION DISK
44632-35820

RN6#..TBO

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

LN5#,65,RN5#,6#

 1
44659B - PLATE, BOOSTER RETAINER
44658-30440

RN6#..TBO

 1
44673A - BODY, BOOSTER VALVE
44673-16060

LN5#,65,RN50,6#;RN55..HLF..(CBR,EFI)

 1
44708 - INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT
44708-35010

RN6#..TBO

 1
Common parts
90179-08038
90179-08146
