RN61LG-PGZA (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1987
Engine 22RTEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LN66,RN6#

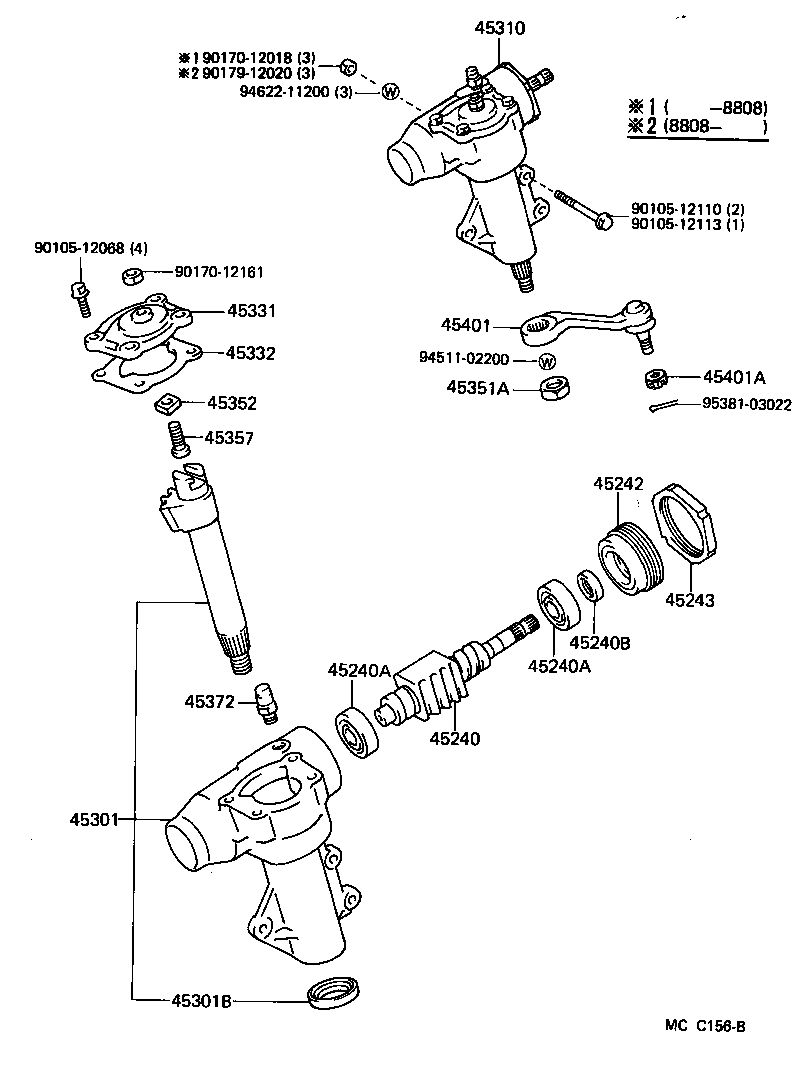

Click highlighted areas on diagram

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010512068 9010512110 9010512113 9017012018 9017012161 9017912020 9451102200 9462211200 9538103022
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-36041

LN65,RN6#

 1
45240A - BEARING(FOR STEERING WORM)
90363-20003

LN65,RN6#

 2
45240A - BEARING(FOR STEERING WORM)
90363-20003

LN65,RN6#

 2
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-35120

LN65,RN6#

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-32024

LN65,RN6#

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-35180

LN65,RN6#

 1
45331 - COVER, SECTOR SHAFT END
45304-36020

LN65,RN6#

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-36010

LN65,RN6#

 1
45352 - WASHER, SECTOR SHAFT THRUST
45354-36010

LN65,RN6#

T=2.10,T=2.10

 1
45356-36010

LN65,RN6#

T=2.20,T=2.20

 1
45355-36010

LN65,RN6#

T=2.15,T=2.15

 1
45353-36010

LN65,RN6#

T=2.05,T=2.05

 1
45352-36010

LN65,RN6#

T=2.00,T=2.00

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-36020

LN65,RN6#

 1
45401 - ARM SUB-ASSY, PITMAN
45401-35130

LN65,RN6#

 1
Common parts
90105-12068
90105-12110
90105-12113
90170-12018
90170-12161
90179-12020
94511-02200
94622-11200
95381-03022

(8508- )LN66,RN6#,VZN6#

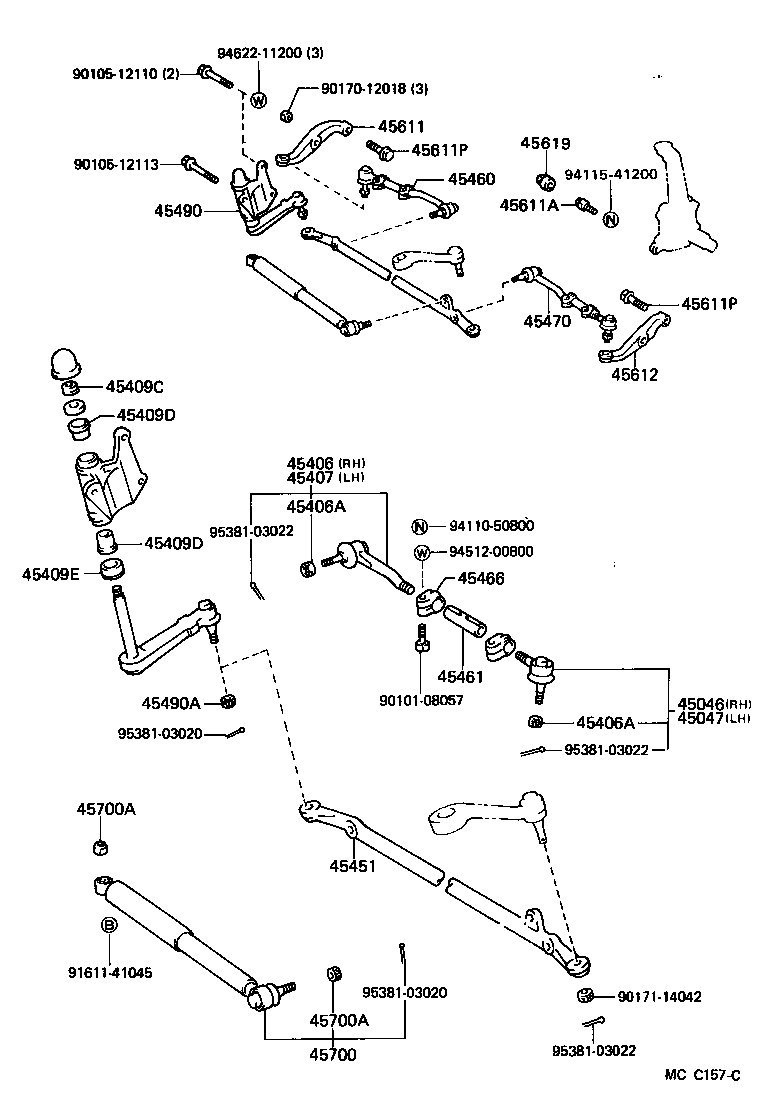

Click highlighted areas on diagram

diagram 45046 45047 45406 45406A 45406A 45407 45409C 45409D 45409D 45409E 45451 45460 45461 45466 45470 45490 45490A 45611 45611A 45611P 45611P 45612 45619 45700 45700A 45700A 9010108057 9010512110 9010512113 9017012018 9017114042 9161141045 9411050800 9411541200 9451200800 9462211200 9538103020 9538103020 9538103022 9538103022 9538103022
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-35080

LN65,RN6#

 1
45047 - END SUB-ASSY, TIE ROD, LH
45047-35050

LN65,RN6#

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LN5#,66,RN5#,61,66,7#,VZN6#

 2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LN5#,66,RN5#,61,66,7#,VZN6#

 2
45409C - NUT(FOR IDLER ARM SUPPORT)
94184-61400

LN5#,66,RN5#,61,66,7#,VZN6#

 1
45409D - BUSH(FOR IDLER ARM)
90385-18068

LN5#,66,RN5#,61,66,7#,VZN6#

 1
45409D - BUSH(FOR IDLER ARM)
90385-18068

LN5#,66,RN5#,61,66,7#,VZN6#

 1
45409E - SEAL, DUST(FOR IDLER ARM SUPPORT)
90304-31012

LN5#,66,RN5#,61,66,7#,VZN6#

 1
45460 - ROD ASSY, TIE, RH
45460-39205

LN65,RN6#

 1
45461 - ROD, STEERING TIE
45461-35100

LN65,RN6#

 1
45466 - CLAMP, TIE ROD END
45466-55010

LN65,RN6#

 2
45466-30020

LN5#,66,RN5#,61,66,7#,VZN6#

 4
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028

LN5#,66,RN5#,61,66,7#,VZN6#

 1
45611 - ARM, STEERING KNUCKLE, RH
45612-35140

LN65,RN6#

 1
45612 - ARM, STEERING KNUCKLE, LH
45601-35081

LN65,RN6#

 1
Common parts
90101-08057
90105-12110
90105-12113
90170-12018
90171-14042
91611-41045
94110-50800
94115-41200
94512-00800
94622-11200
95381-03020
95381-03022

(8508- )LN66,RN6#,VZN6#

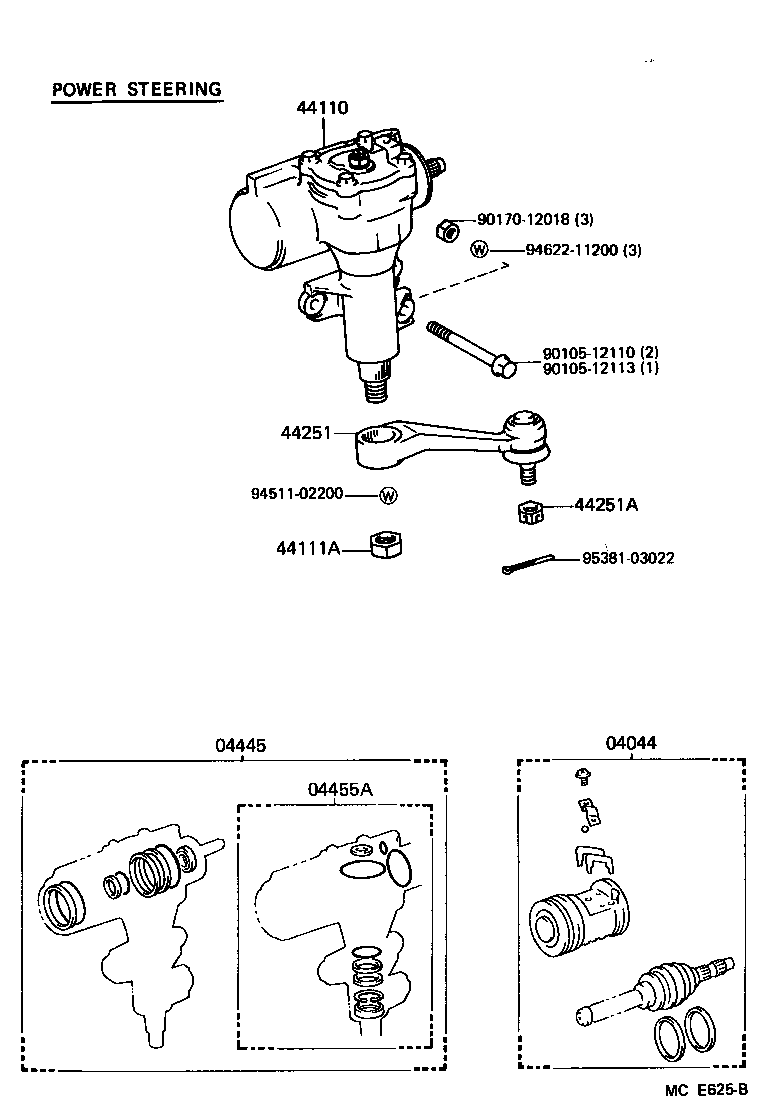

Click highlighted areas on diagram

diagram 04044 04445 04455A 44110 44111A 44251 44251A 9010512110 9010512113 9017012018 9451102200 9462211200 9538103022
Part # Description Qty Price
04044 - WARM KIT, POWER STEERING
04044-60090

LN66,RN6#

 1
Common parts
90105-12110
90105-12113
90170-12018
94511-02200
94622-11200
95381-03022

(8508- )LN66,RN6#,VZN6#

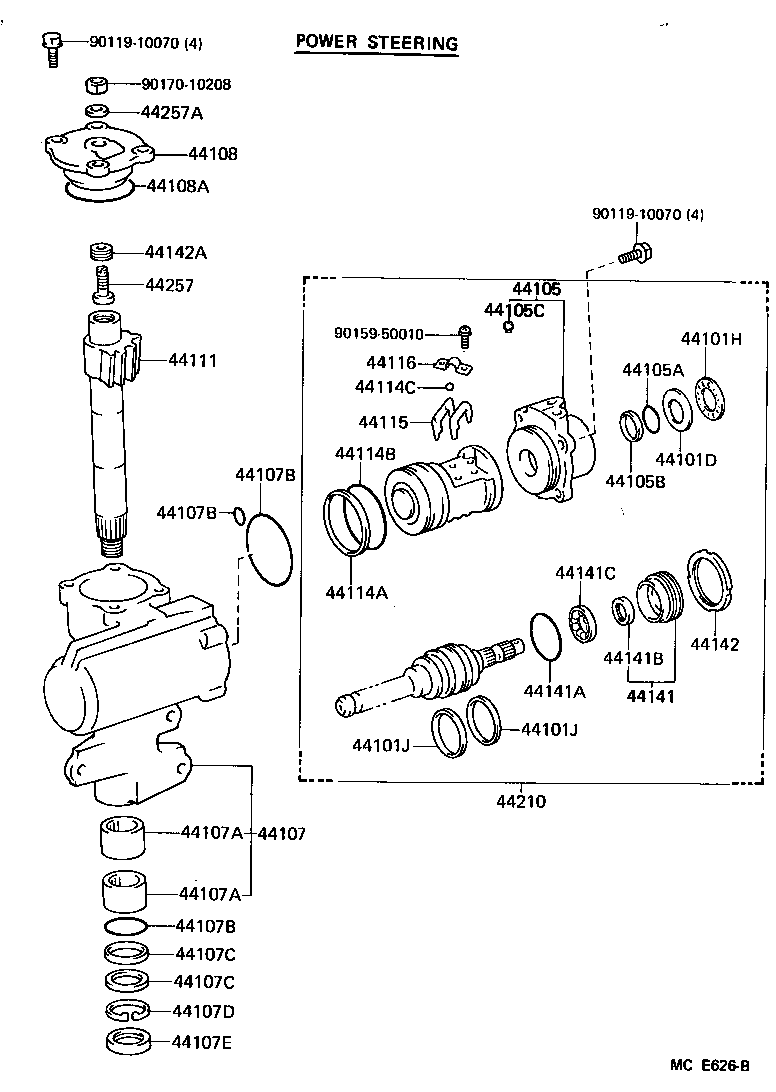

Click highlighted areas on diagram

diagram 44101D 44101H 44101J 44101J 44105 44105A 44105B 44105C 44107 44107A 44107A 44107B 44107B 44107B 44107C 44107C 44107D 44107E 44108 44108A 44111 44114A 44114B 44114C 44115 44116 44141 44141A 44141B 44141C 44142 44142A 44210 44257 44257A 9011910070 9011910070 9015950010 9017010208
Part # Description Qty Price
Common parts
90119-10070
90159-50010
90170-10208
