RN61L-MSEA3 (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8708)LN5#,6#

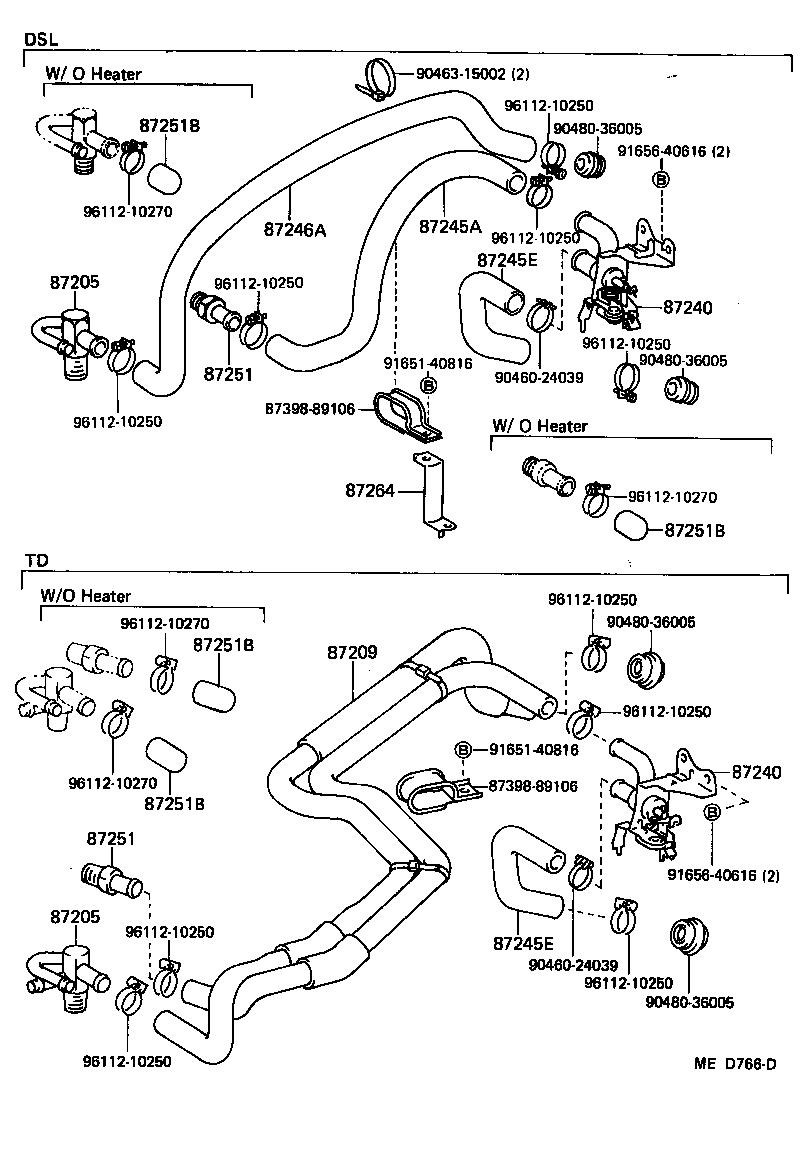

Click highlighted areas on diagram

diagram 87205 87205 87209 87240 87240 87245A 87245E 87245E 87246A 87251 87251 87251B 87251B 87251B 87251B 87264 8739889106 8739889106 9046024039 9046024039 9046315002 9048036005 9048036005 9048036005 9048036005 9165140816 9165140816 9165640616 9165640616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210270 9611210270 9611210270 9611210270
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-89116

LN5#,6#

 1
87240-89117

RN5#,6#,7#..T1

 1
87240-89117

RN5#,6#,7#

 1
87240-89118

RN61..V..USA

W/RR HEATER

 1
87240 - VALVE ASSY, HEATER WATER
87240-89116

LN5#,6#

 1
87240-89117

RN5#,6#,7#..T1

 1
87240-89117

RN5#,6#,7#

 1
87240-89118

RN61..V..USA

W/RR HEATER

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89156

RN5#,6#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89146

LN5#,6#,RN5#,6#,7#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89146

LN5#,6#,RN5#,6#,7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89163

RN5#,6#,7#..CBR,EFI

 1
87245-89163

RN5#,6#,7#..T1..(CBR,EFI)

 1
87245-89215

RN61..V..USA

W/RR HEATER

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LN5#,6#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LN5#,6#

 1
Common parts
87398-89106
90460-24039
90463-15002
90480-36005
91651-40816
91656-40616
96112-10250
96112-10270
