Toyota 4-runner truck RN61 CRUISE CONTROL (AUTO DRIVE)

RN61L-MSEA3 (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1988

Engine 22REC

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

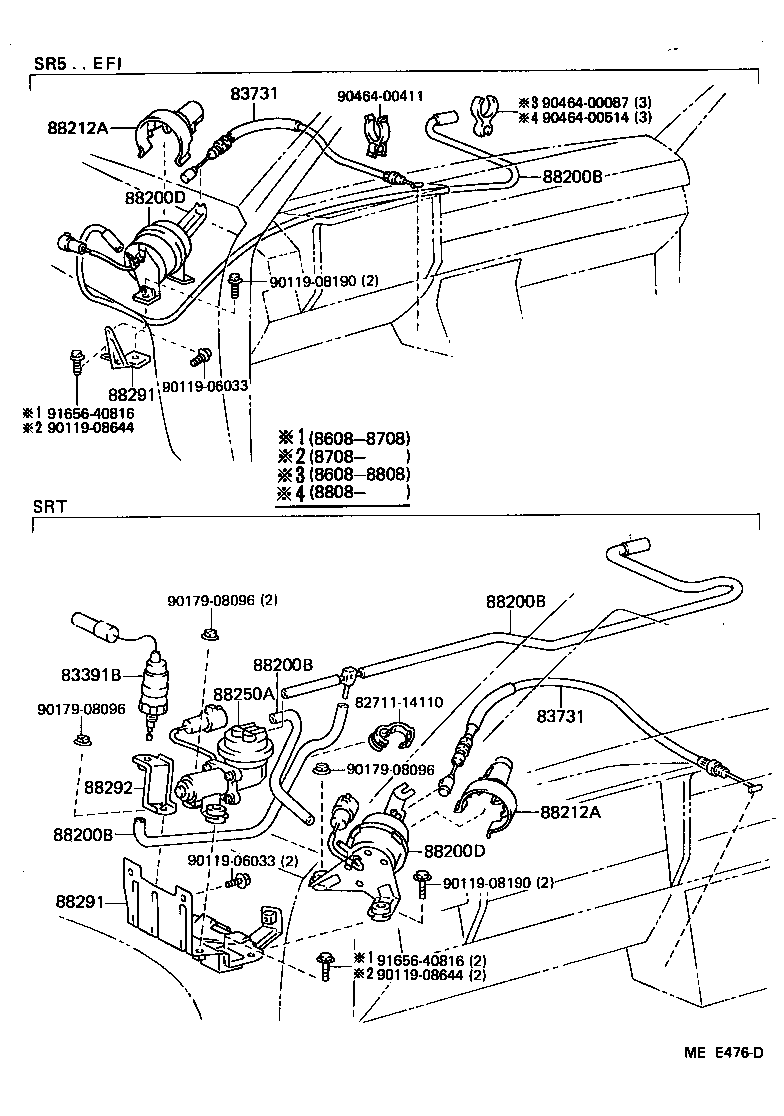

Click highlighted areas on diagram

Part #	Description	Period	Qty
83731 - CABLE, CRUISE CONTROL
83731-35010	RN5#,6#..SR5..EFI	08/1983 - 08/1985	1
83731-35051	RN55,6#..SR5	08/1985 - 08/1986	1
83731-35090	RN55,6#..SR5	08/1986 - 08/1987	1
83731 - CABLE, CRUISE CONTROL
83731-35010	RN5#,6#..SR5..EFI	08/1983 - 08/1985	1
83731-35051	RN55,6#..SR5	08/1985 - 08/1986	1
83731-35090	RN55,6#..SR5	08/1986 - 08/1987	1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205	RN5#,6#..SR5..EFI L=1150	08/1983 - 01/1985	1
90445-08169	RN55,6#..SR5 L=1050	08/1985 - 08/1986	1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205	RN5#,6#..SR5..EFI L=1150	08/1983 - 01/1985	1
90445-08169	RN55,6#..SR5 L=1050	08/1985 - 08/1986	1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205	RN5#,6#..SR5..EFI L=1150	08/1983 - 01/1985	1
90445-08169	RN55,6#..SR5 L=1050	08/1985 - 08/1986	1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205	RN5#,6#..SR5..EFI L=1150	08/1983 - 01/1985	1
90445-08169	RN55,6#..SR5 L=1050	08/1985 - 08/1986	1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205	RN5#,6#..SR5..EFI L=1150	08/1983 - 01/1985	1
90445-08169	RN55,6#..SR5 L=1050	08/1985 - 08/1986	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35090	RN55,6#..SR5	08/1986 - 08/1987	1
88200-35071	RN55,6#..SR5	08/1985 - 08/1986	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35090	RN55,6#..SR5	08/1986 - 08/1987	1
88200-35071	RN55,6#..SR5	08/1985 - 08/1986	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35090	RN55,6#..SR5	08/1986 - 08/1987	1
88200-35071	RN55,6#..SR5	08/1985 - 08/1986	1
Common parts
82711-14110
90119-06033
90119-08190
90179-08096
90464-00151
90464-00190
91656-40816

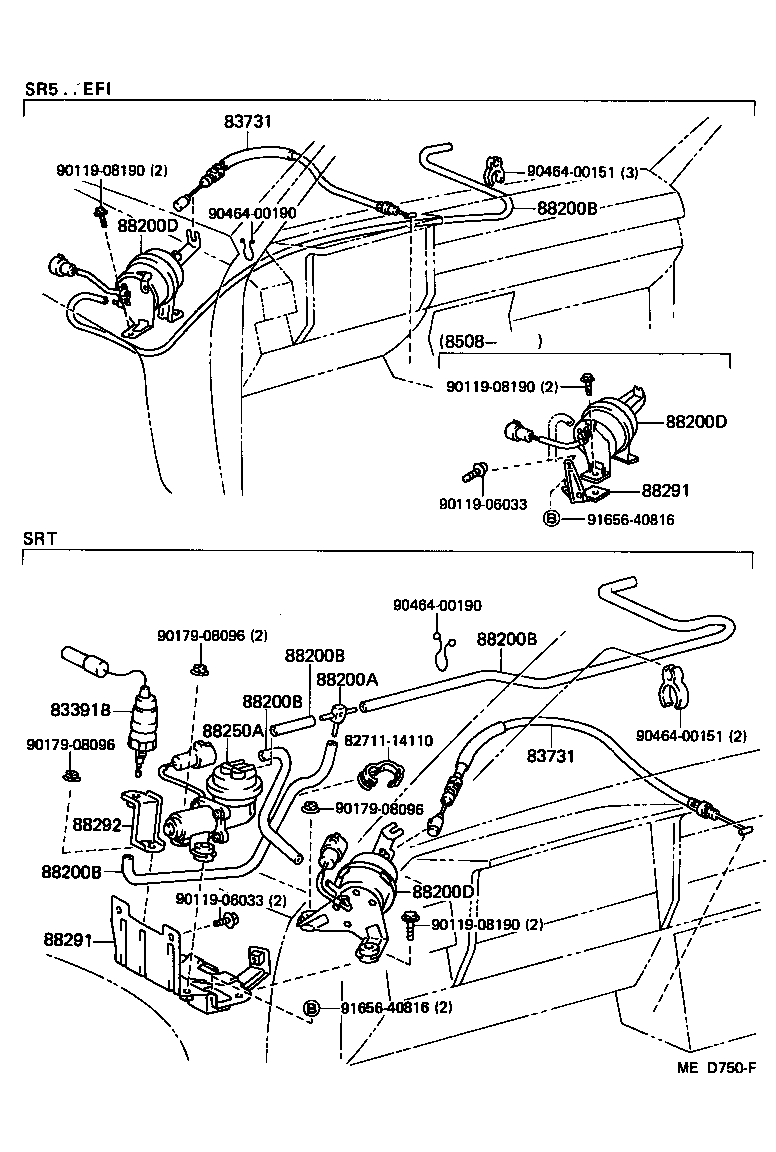

Click highlighted areas on diagram

Part #	Description	Period	Qty
83731 - CABLE, CRUISE CONTROL
83731-35010	RN5#,6#..SR5..EFI	08/1983 - 08/1985	1
83731-35051	RN55,6#..SR5	08/1985 - 08/1986	1
83731-35090	RN55,6#..SR5	08/1986 - 08/1987	1
83731 - CABLE, CRUISE CONTROL
83731-35010	RN5#,6#..SR5..EFI	08/1983 - 08/1985	1
83731-35051	RN55,6#..SR5	08/1985 - 08/1986	1
83731-35090	RN55,6#..SR5	08/1986 - 08/1987	1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205	RN5#,6#..SR5..EFI L=1150	08/1983 - 01/1985	1
90445-08169	RN55,6#..SR5 L=1050	08/1985 - 08/1986	1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205	RN5#,6#..SR5..EFI L=1150	08/1983 - 01/1985	1
90445-08169	RN55,6#..SR5 L=1050	08/1985 - 08/1986	1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205	RN5#,6#..SR5..EFI L=1150	08/1983 - 01/1985	1
90445-08169	RN55,6#..SR5 L=1050	08/1985 - 08/1986	1
88200B - HOSE, CRUISE CONTROL VACUUM
90445-08205	RN5#,6#..SR5..EFI L=1150	08/1983 - 01/1985	1
90445-08169	RN55,6#..SR5 L=1050	08/1985 - 08/1986	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35090	RN55,6#..SR5	08/1986 - 08/1987	1
88200-35071	RN55,6#..SR5	08/1985 - 08/1986	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-35090	RN55,6#..SR5	08/1986 - 08/1987	1
88200-35071	RN55,6#..SR5	08/1985 - 08/1986	1
Common parts
82711-14110
90119-06033
90119-08190
90119-08644
90179-08096
90464-00087
90464-00411
90464-00514
91656-40816
