RN61L-MRA (1985)

Toyota 4-Runner Truck

Production Aug 1985 - Aug 1987
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8608)

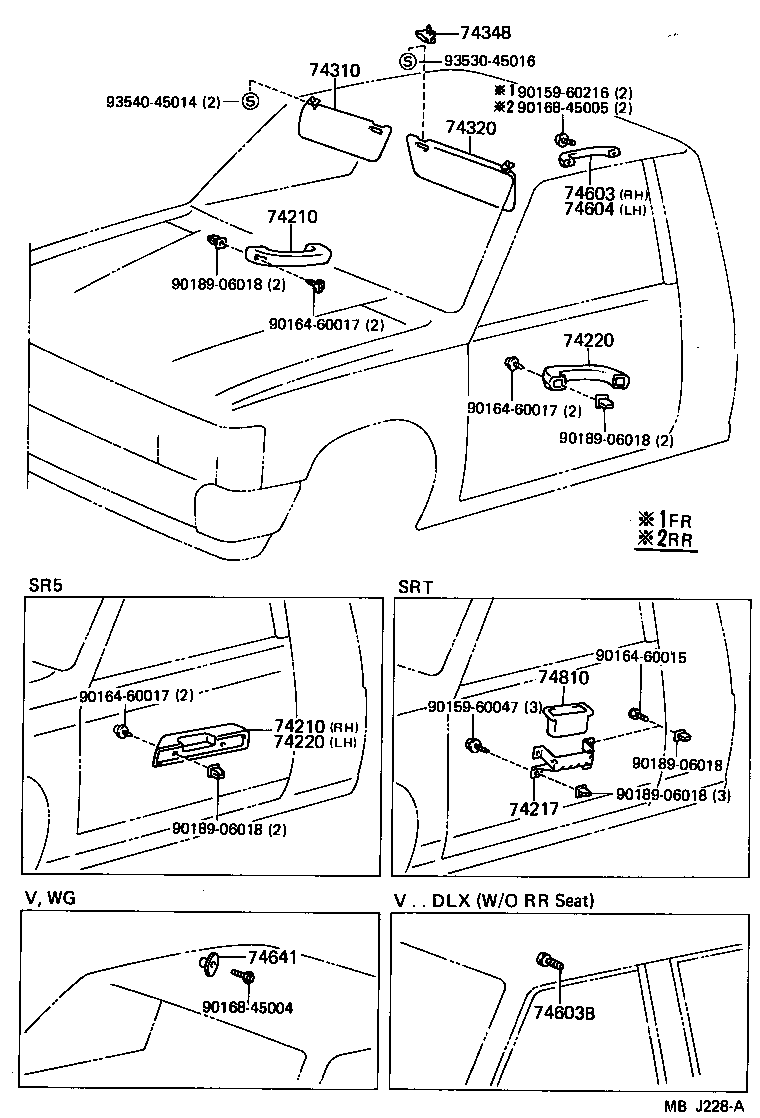

Click highlighted areas on diagram

diagram 74210 74210 74217 74220 74220 74310 74320 74348 74603 74603B 74604 74641 74810 9015960047 9015960216 9016460015 9016460017 9016460017 9016460017 9016845004 9016845005 9018906018 9018906018 9018906018 9018906018 9018906018 9353045016 9354045014
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-8911408

LN5#,6#,RN5#,6#,7#..DLX,SDT,STD

IVORY,IVORY,TRIM4#

 1
74310-8911403

LN5#,6#,RN5#,6#,7#..DLX,SDT,STD

LIGHT GRAY,GRAY,TRIM1#,8#

 1
74320 - VISOR ASSY, LH
74320-8910603

LN65,RN6#..DLX,STD

LIGHT GRAY,GRAY,TRIM1#,8#

 1
74320-8910608

LN65,RN6#..DLX,STD

IVORY,IVORY,TRIM4#

 1
74320-8911203

RN6#..(DLX,SDT,STD)..USA

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

 1
74320-8911208

RN6#..(DLX,SDT,STD)..USA

IVORY,IVORY,TRIM4#

 1
74348 - HOLDER, VISOR
74348-1401018

LN5#,6#,RN5#,6#,7#

IVORY,IVORY,TRIM4#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74611-8910108

LN65,RN6#..HLF

IVORY,IVORY,TRIM4#

 1
74611-8910133

LN66,RN6#..(DLX,SDT,SR5,STD)..HLF

LIGHT GRAY,GRAY,TRIM1#,8#

 1
74611-8910108

LN66,RN6#..(DLX,SDT,SR5,STD)..HLF

IVORY,IVORY,TRIM4#

 1
Common parts
90159-60047
90159-60216
90164-60015
90164-60017
90168-45004
90168-45005
90189-06018
93530-45016
93540-45014
