RN60L-MSA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

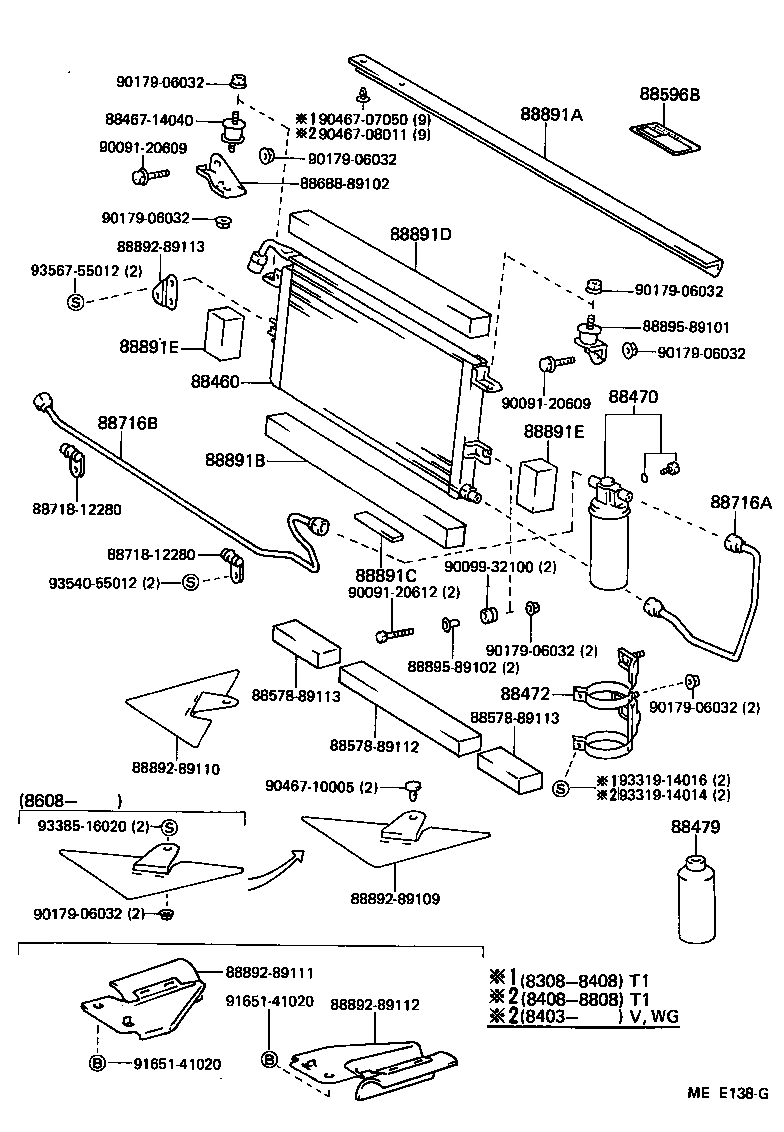

Click highlighted areas on diagram

diagram 88460 8846714040 88470 88472 88479 8857889112 8857889113 8857889113 88596B 8868889102 88716A 88716B 8871812280 8871812280 88891A 88891B 88891C 88891D 88891E 88891E 8889289109 8889289110 8889289111 8889289112 8889289113 8889589101 8889589102 9009120609 9009120609 9009120612 9009932100 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9046707050 9046708011 9046710005 9165141020 9165141020 9331914014 9331914016 9338516020 9354055012 9356755012
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-89109

LN56,6#,RN5#,6#,7#,VZN6#..T1

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

LN56,6#,RN5#,6#,7#,VZN6#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89109

LN56,6#,RN5#,6#,7#,VZN6#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

LN56,6#,RN5#,6#,7#,VZN6#

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-89132

LN56,6#,RN5#,6#,7#,VZN6#..T1

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89133

LN56,65,RN5#,6#..T1

 1
88716-89139

RN60..V,WG

 1
88891A - PACKING A (FOR COOLER)
53381-89103

LN56,6#,RN5#,6#,7#,VZN6#

 1
88891B - PACKING B (FOR COOLER)
88578-89101

LN56,65,RN5#,6#..T1

 1
88578-89108

RN60..V,WG

 1
88891C - PACKING C (FOR COOLER)
88578-89107

LN56,6#,RN5#,6#,7#,VZN6#

 1
88891D - PACKING D (FOR COOLER)
88578-89101

RN5#,6#,7#

 1
88891E - PACKING E (FOR COOLER)
88578-89103

RN6#

 2
88891E - PACKING E (FOR COOLER)
88578-89103

RN6#

 2
Common parts
88467-14040
88578-89112
88578-89113
88688-89102
88718-12280
88892-89109
88892-89110
88892-89111
88892-89112
88892-89113
88895-89101
88895-89102
90091-20609
90091-20612
90099-32100
90179-06032
90467-07050
90467-08011
90467-10005
91651-41020
93319-14014
93319-14016
93385-16020
93540-55012
93567-55012

(8308- )

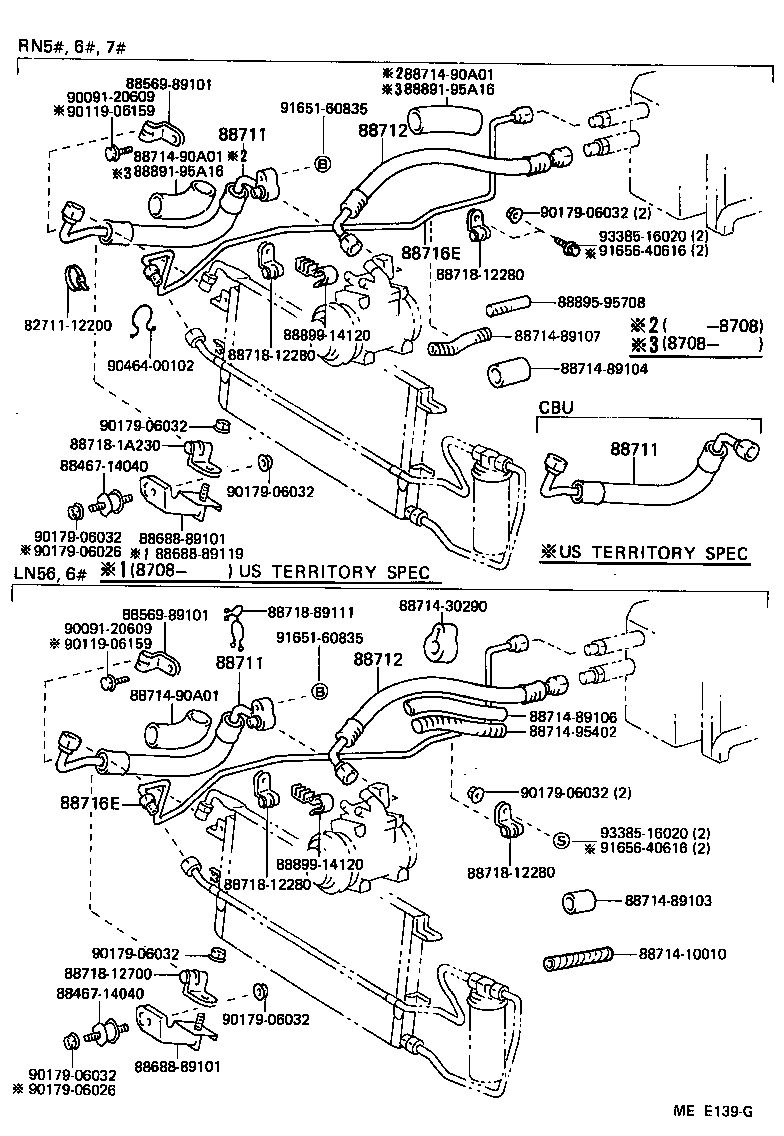

Click highlighted areas on diagram

diagram 8271112200 8846714040 8846714040 8856989101 8856989101 8868889101 8868889101 8868889119 88711 88711 88711 88712 88712 8871410010 8871430290 8871489103 8871489104 8871489106 8871489107 8871490A01 8871490A01 8871490A01 8871495402 88716E 88716E 8871812280 8871812280 8871812280 8871812280 8871812700 887181A230 8871889111 8889195A16 8889195A16 8889595708 8889914120 8889914120 9009120609 9009120609 9011906159 9011906159 9017906026 9017906026 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9046400102 9165160835 9165160835 9165640616 9165640616 9338516020 9338516020
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89114

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88711-89115

RN5#,6#..T1

49 STATES

 1
88711-89114

RN60..(V,WG)..USA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89114

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88711-89115

RN5#,6#..T1

49 STATES

 1
88711-89114

RN60..(V,WG)..USA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89114

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88711-89115

RN5#,6#..T1

49 STATES

 1
88711-89114

RN60..(V,WG)..USA

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89117

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88712-89125

RN60..(V,WG)..USA

 1
88712-89118

RN5#,6#..T1

49 STATES

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89117

RN55,6#..(3QT,HLF)..CBR..IV

*CAL

 1
88712-89125

RN60..(V,WG)..USA

 1
88712-89118

RN5#,6#..T1

49 STATES

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89140

RN60..V,WG

 1
88716-89137

RN5#,6#..T1

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89140

RN60..V,WG

 1
88716-89137

RN5#,6#..T1

 1
Common parts
82711-12200
88467-14040
88569-89101
88688-89101
88688-89119
88714-10010
88714-30290
88714-89103
88714-89104
88714-89106
88714-89107
88714-90A01
88714-95402
88718-12280
88718-12700
88718-1A230
88718-89111
88891-95A16
88895-95708
88899-14120
90091-20609
90119-06159
90179-06026
90179-06032
90464-00102
91651-60835
91656-40616
93385-16020
