RN60L-MSA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

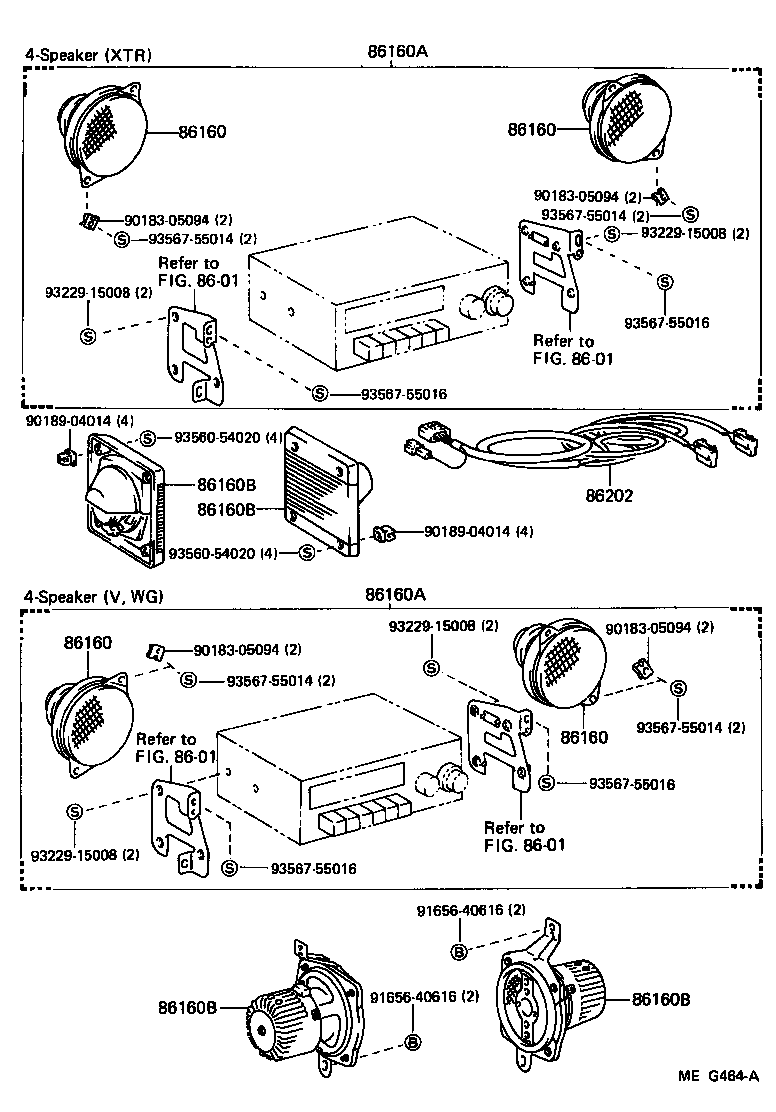

Click highlighted areas on diagram

diagram 8601 8601 86160 86160 86160 86160A 86202 9018305094 9018305094 9018305094 9322915008 9322915008 9356755014 9356755014 9356755014 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160A - SPEAKER SET, FRONT
86160-29675

LN5#,6#,RN5#,6#,7#

AM/FM MULTIPLEX OR TAPE PLAYER

 1
86202 - WIRE, SPEAKER, NO.1
86205-89101

LN56,65,RN5#,6#,75..RCB..(DLX,SR5)

W/3-SPEAKER

 1
Common parts
90183-05094
93229-15008
93567-55014
93567-55016
Linked diagrams
8601

(8308-8808)RCB..DLX,SR5 ; (8608-8808)RN61..HLF..TBO

Click highlighted areas on diagram

diagram 8601 8601 86160 86160 86160A 86160B 86202 9018305094 9018305094 9165140614 9322915008 9322915008 9356755014 9356755014 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160A - SPEAKER SET, FRONT
86160-29675

LN5#,6#,RN5#,6#,7#

AM/FM MULTIPLEX OR TAPE PLAYER

 1
86160B - SPEAKER ASSY, REAR
86150-89101

LN56,65,RN5#,6#..RCB..(DLX,SR5)

W/3-SPEAKER(WOOFER)

 1
86202 - WIRE, SPEAKER, NO.1
86205-89101

LN56,65,RN5#,6#,75..RCB..(DLX,SR5)

W/3-SPEAKER

 1
Common parts
90183-05094
91651-40614
93229-15008
93567-55014
93567-55016
Linked diagrams
8601

(8308- )XTR ; (8308- )V,WG

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86160 86160 86160 86160 86160A 86160A 86160B 86160B 86160B 86160B 86202 9018305094 9018305094 9018305094 9018305094 9018904014 9018904014 9165640616 9165640616 9322915008 9322915008 9322915008 9322915008 9356054020 9356054020 9356755014 9356755014 9356755014 9356755014 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160A - SPEAKER SET, FRONT
86160-29675

LN5#,6#,RN5#,6#,7#

AM/FM MULTIPLEX OR TAPE PLAYER

 1
86160A - SPEAKER SET, FRONT
86160-29675

LN5#,6#,RN5#,6#,7#

AM/FM MULTIPLEX OR TAPE PLAYER

 1
86160B - SPEAKER ASSY, REAR
86150-89101

LN56,65,RN5#,6#..RCB..(DLX,SR5)

W/3-SPEAKER(WOOFER)

 1
86160B - SPEAKER ASSY, REAR
86150-89101

LN56,65,RN5#,6#..RCB..(DLX,SR5)

W/3-SPEAKER(WOOFER)

 1
86160B - SPEAKER ASSY, REAR
86150-89101

LN56,65,RN5#,6#..RCB..(DLX,SR5)

W/3-SPEAKER(WOOFER)

 1
86160B - SPEAKER ASSY, REAR
86150-89101

LN56,65,RN5#,6#..RCB..(DLX,SR5)

W/3-SPEAKER(WOOFER)

 1
86202 - WIRE, SPEAKER, NO.1
86205-89101

LN56,65,RN5#,6#,75..RCB..(DLX,SR5)

W/3-SPEAKER

 1
Common parts
90183-05094
90189-04014
91656-40616
93229-15008
93560-54020
93567-55014
93567-55016
Linked diagrams
8601
