RN60L-MSA3 (1983)
Toyota 4-Runner Truck
(8308- )

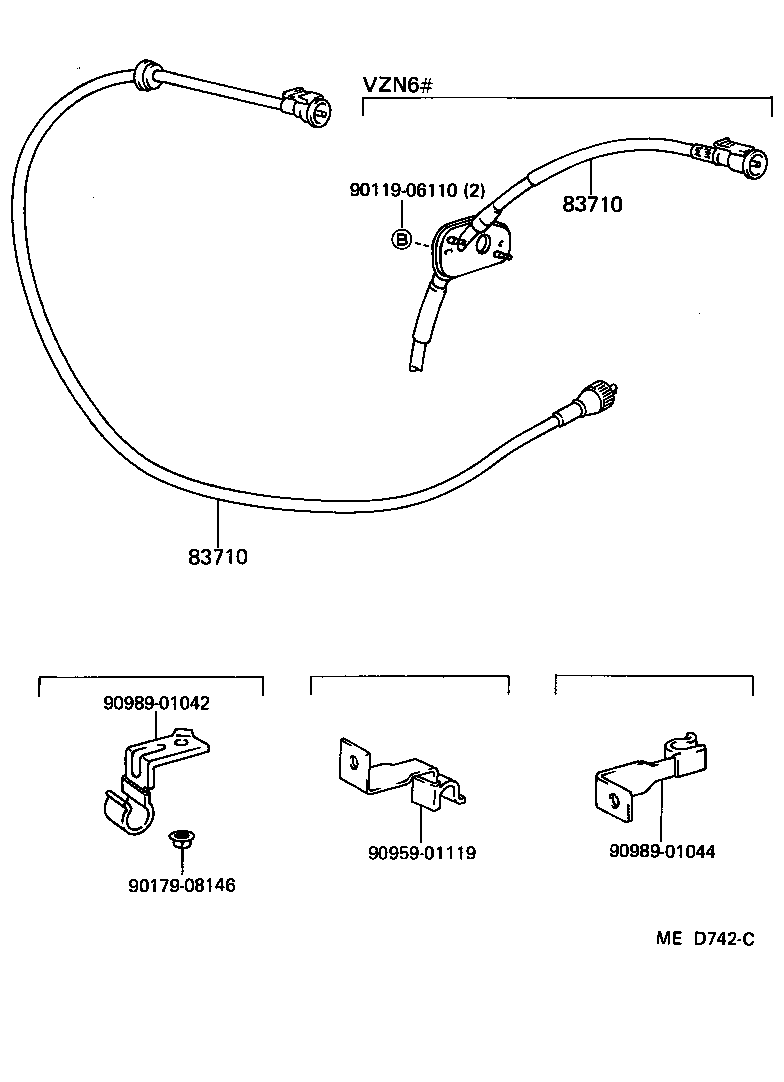

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89151 |
LN65,RN6# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89151 |
LN65,RN6# |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90179-08146 | ||||
| 90959-01119 | ||||
| 90989-01042 | ||||
| 90989-01044 | ||||

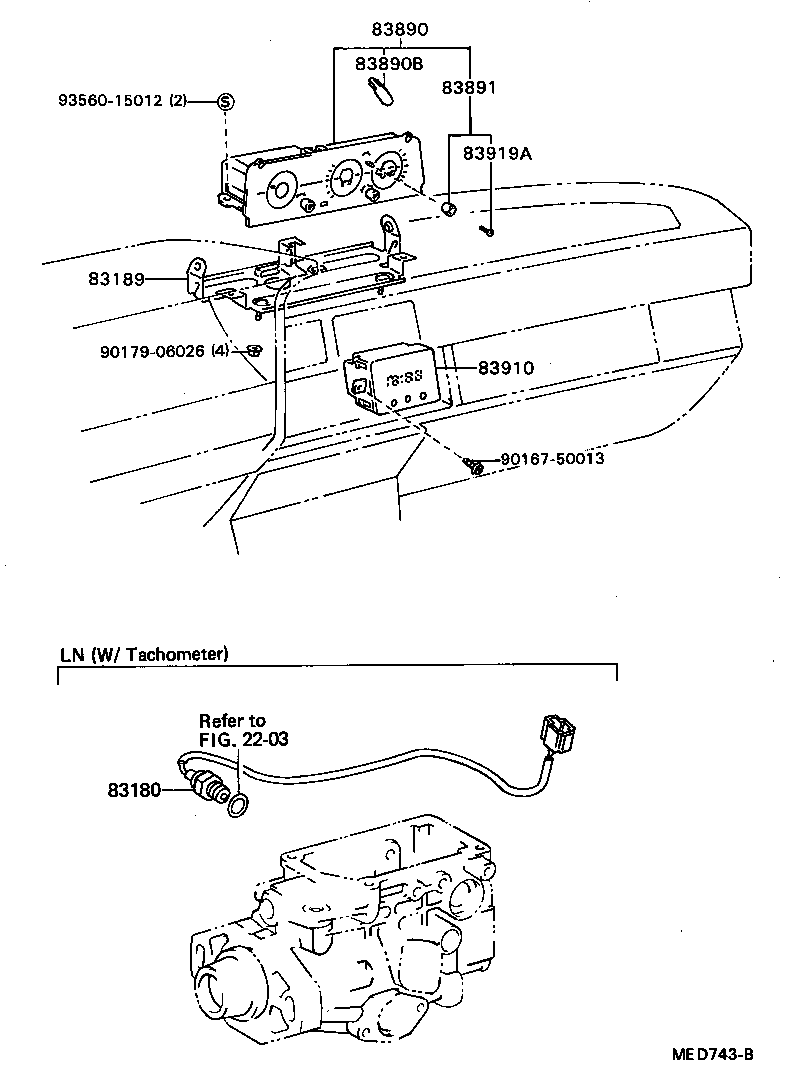

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-89102 |
RN6#..SR5,SRT |
1 | ||
| 83890 - CLINOMETER ASSY | ||||
| 83890-89103 |
RN6#..(SR5,SRT)..USA |
1 | ||
| 83890B - BULB, CLINOMETER | ||||
| 99132-12034 |
RN6#,VZN6#..SR5,SRT 12V 3.4W,12V 3.4W |
2 | ||
| 83891 - KNOB, CLINOMETER | ||||
| 83891-16010 |
RN6#,VZN6#..SR5,SRT |
3 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-89105 |
LN5#,6#,RN5#,6#,7#,VZN6# |
1 | ||
| 83919A - SCREW (FOR CLINOMETER) | ||||
| 83919-14012 |
RN6#,VZN6#..SR5,SRT |
3 | ||
| Common parts | ||||
| 90167-50013 | ||||
| 90179-06026 | ||||
| 93560-15012 | ||||
| Linked diagrams | ||||
| 2203 | ||||
(8308- )SR5 ; (8501-8808)HLF..TBO ; (8708-8808)DLX,STD
W/TACHOMETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD 12V 3.4W,12V 3.4W |
16 | ||
| 90981-11018 |
RN5#,6#,VZN6#..SDT,SR5,SRT 12V 1.2W W/O SOCKET,12V 1.4W |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD 12V 3.4W,12V 3.4W |
16 | ||
| 90981-11018 |
RN5#,6#,VZN6#..SDT,SR5,SRT 12V 1.2W W/O SOCKET,12V 1.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-89310 |
RN5#,6#..SR5 |
1 | ||
| 83134-89306 |
LN5#,6# |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN5#,6#,VZN6#..SDT,SR5,SRT 12V 1.4W |
13 | ||
| 83101-20040 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD YAZAKI,12V 3.4W |
16 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
RN5#,6#,VZN6#..SDT,SR5,SRT 12V 1.4W |
13 | ||
| 83101-20040 |
LN5#,6#,RN5#,6#,7#,VZN6#..DLX,SR5,STD YAZAKI,12V 3.4W |
16 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-89322 |
RN6#..SR5 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89217 |
RN5#,6#..SR5..USA MILE & KM |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-89302 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD LH |
1 | ||
| 83116-89300 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD RH |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-89302 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD LH |
1 | ||
| 83116-89300 |
LN5#,6#,RN5#,6#,7#..DLX,SR5,STD RH |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89300 |
RN5#,6#,VZN6#..SR5 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89302 |
RN5#,6#,VZN6#..SR5 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-89175 |
RN5#,6#..SR5..USA |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-89308 |
RN6#..5F..SR5 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-89314 |
RN5#,6#..SR5,SRT |
1 | ||
| Common parts | ||||
| 90167-50013 | ||||
| 90189-05032 | ||||

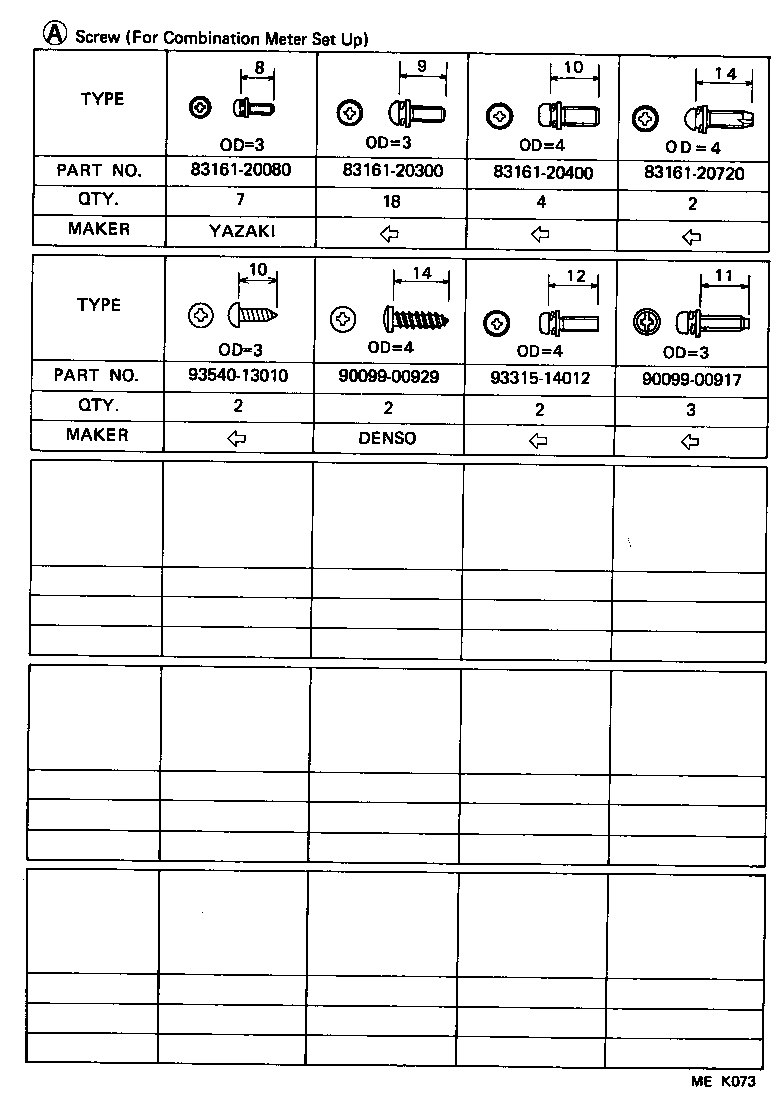

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20300 | ||||
| 83161-20400 | ||||
| 83161-20720 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93315-14012 | ||||
| 93540-13010 | ||||
