RN60L-MSA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)RN5#..CBR ; (8408-8808)CBR

Click highlighted areas on diagram

diagram 78110 78110A 78130 78130 78130A 78130A 78130B 78130B 78130C 78180 78186 78186 9020107008 9038608063 9038608063 9046303110 9054103005 9161640616 9165140814 9165140814 9165140816 9165140816 9165140835 9165640630 9616000600 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89121

RN6#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26060

LN5#,6#

 1
90508-32019

RN5#,6#,7#

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-89101

RN5#,6#,70..MTM..CBR

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-89101

RN5#,6#,70..MTM..CBR

 1
78130A - SPRING (FOR ACCELERATOR ROD RETURN)
90508-14076

RN5#,6#,70..CBR

 1
78130A - SPRING (FOR ACCELERATOR ROD RETURN)
90508-14076

RN5#,6#,70..CBR

 1
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08063

RN5#,6#,70..CBR

 2
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08063

RN5#,6#,70..CBR

 2
78130C - BRACKET, ACCELERATOR BELLCRANK
78166-89101

RN5#,6#,70..CBR

 1
78180 - WIRE ASSY, ACCELERATOR
78180-89132

RN60..IV;RN60..V,WG;RN5#,65..CBR;RN60..(DLX,STD)..HLF..CBU

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-89108

RN5#,6#..CBR

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-89108

RN5#,6#..CBR

 1
Common parts
90201-07008
90386-08063
90463-03110
90541-03005
91616-40616
91651-40814
91651-40816
91651-40835
91656-40630
96160-00600

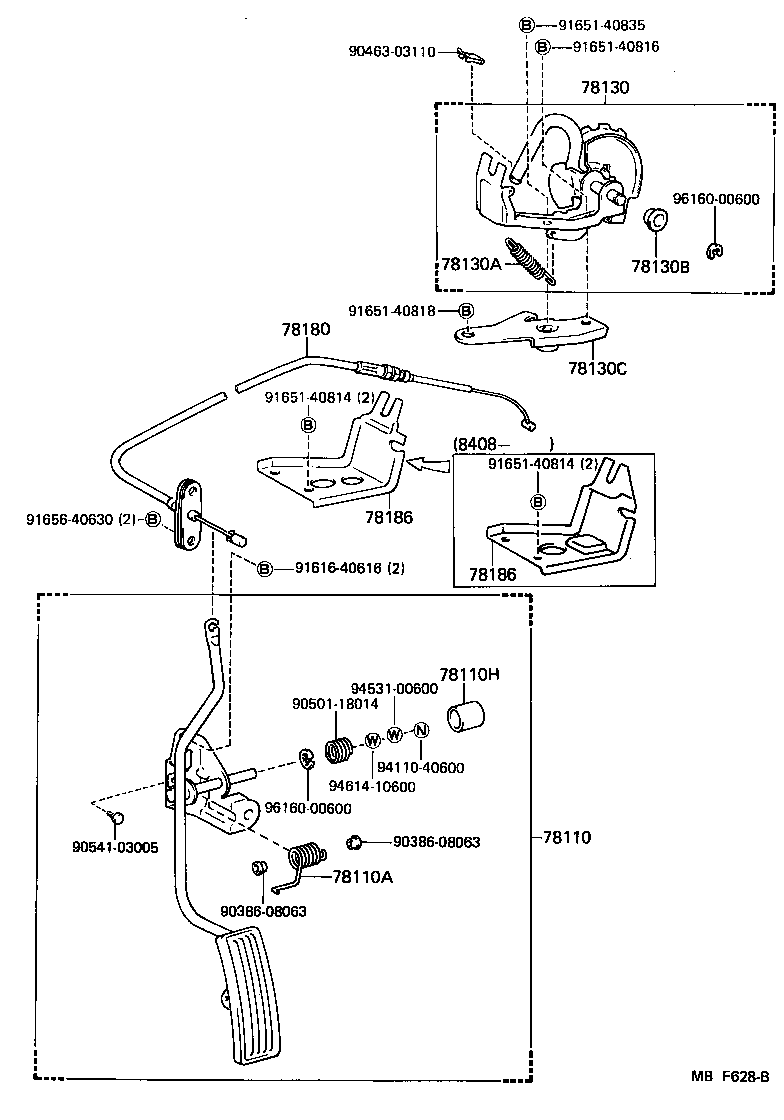

(8308-8408)RN6#

Click highlighted areas on diagram

diagram 78110 78110A 78110H 78130 78130A 78130B 78130C 78180 78186 78186 9038608063 9038608063 9046303110 9050118014 9054103005 9161640616 9165140814 9165140814 9165140816 9165140818 9165140835 9165640630 9411040600 9453100600 9461410600 9616000600 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-89121

RN6#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26060

LN5#,6#

 1
90508-32019

RN5#,6#,7#

 1
78110H - COVER (FOR ACCELERATOR PEDAL ROD)
78116-22010

LN65,RN6#

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-89101

RN5#,6#,70..MTM..CBR

 1
78130A - SPRING (FOR ACCELERATOR ROD RETURN)
90508-14076

RN5#,6#,70..CBR

 1
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08063

RN5#,6#,70..CBR

 2
78130C - BRACKET, ACCELERATOR BELLCRANK
78166-89101

RN5#,6#,70..CBR

 1
78180 - WIRE ASSY, ACCELERATOR
78180-89132

RN60..IV;RN60..V,WG;RN5#,65..CBR;RN60..(DLX,STD)..HLF..CBU

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-89108

RN5#,6#..CBR

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-89108

RN5#,6#..CBR

 1
Common parts
90386-08063
90463-03110
90501-18014
90541-03005
91616-40616
91651-40814
91651-40816
91651-40818
91651-40835
91656-40630
94110-40600
94531-00600
94614-10600
96160-00600
