RN60L-MSA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN65,RN6# ; (8711- )VZN6#

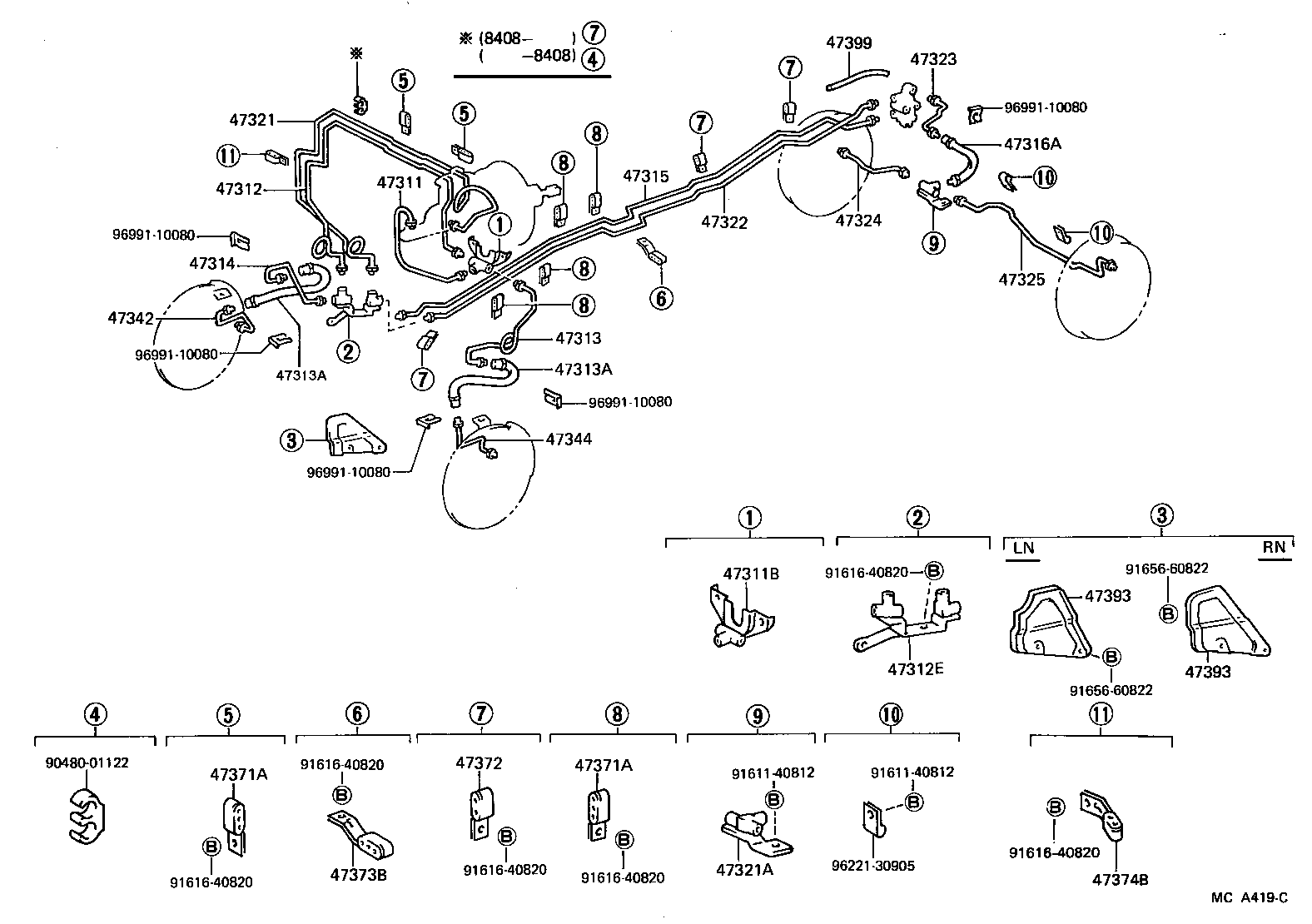

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47315 47316A 47321 47321A 47322 47323 47324 47325 47342 47344 47371A 47371A 47372 47373B 47374B 47393 47393 47399 9048001122 9161140812 9161140812 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9165660822 9165660822 9622130905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35370

LN6#,RN6#..DLX,SR5,STD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

LN65,RN6#;RN55..10T,3QT,HVY

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35470

RN6#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90415-10006

LN65,RN60,65,75;RN55..10T,3QT,HVY

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35320

LN65,RN6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02383

LN65,RN6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02383

LN65,RN6#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35190

RN6#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35060

RN60

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34805

LN65,RN6#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35260

RN6#

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10162

LN6#,RN6#,VZN6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35290

RN60

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35060

LN65,RN6#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35080

LN65,RN6#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35090

LN65,RN6#

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35030

LN65,RN6#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35030

LN65,RN6#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

LN5#,6#,RN5#,6#,7#,VZN6#

DASH PANEL SIDE

 2
47371-35030

LN6#,RN5#,6#,70..CBR,DSL,TD

SIDE RAIL SIDE

 3
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

LN5#,6#,RN5#,6#,7#,VZN6#

DASH PANEL SIDE

 2
47371-35030

LN6#,RN5#,6#,70..CBR,DSL,TD

SIDE RAIL SIDE

 3
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35010

LN5#,6#,RN5#,6#,7#,VZN6#

 5
47373B - CLAMP, BRAKE TUBE, NO.3
47371-35050

RN6#

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35070

RN6#

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35070

RN6#

 1
47399 - TUBE(FOR LOAD SENSING VALVE)
47399-35180

LN6#,RN6#

 1
Common parts
90480-01122
91611-40812
91616-40820
91656-60822
96221-30905
96991-10080

(8308-8608)LN6#,RN6#,75 ; (8308-8608)RN55..10T,3QT,HVY ; (8608- )

Click highlighted areas on diagram

diagram 04477 47910 47910A 47910B 47920 47920A 47920A 47920B 47920C 47920C 47931 47932A 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908744 9011908744 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161660820 9161660820 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

LN65,RN60,65;RN55..10T,3QT,HVY

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-35080

LN6#,RN6#

 1
47910A - CAP, BLEEDER PLUG
31478-30010

LN6#,RN6#

 1
47920 - SPRING ASSY, LOAD SENSING
47920-35050

LN6#,RN6#,VZN6#

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LN6#,RN6#,75;RN55..10T,3QT,HVY

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LN6#,RN6#,75;RN55..10T,3QT,HVY

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LN6#,RN6#,75;RN55..10T,3QT,HVY

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LN6#,RN6#,75;RN55..10T,3QT,HVY

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LN6#,RN6#,75;RN55..10T,3QT,HVY

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-35050

LN6#,RN6#,75;RN55..10T,3QT,HVY

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-35040

LN65,RN6#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

LN6#,RN6#,75;RN55..10T,3QT,HVY

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LN6#,RN6#,75;RN55..10T,3QT,HVY

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LN6#,RN6#,75;RN55..10T,3QT,HVY

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LN6#,RN6#,75;RN55..10T,3QT,HVY

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LN6#,RN6#,75;RN55..10T,3QT,HVY

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35020

LN6#,RN6#,VZN6#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LN6#,RN6#,75;RN55..10T,3QT,HVY

 1
Common parts
90119-08744
90201-23360
91131-50840
91616-60820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020
