RN60L-MSA3 (1983)
Toyota 4-Runner Truck
(8308-8408)LN65,RN6#..DLX,SR5 ; (8408-8508)LN65,RN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

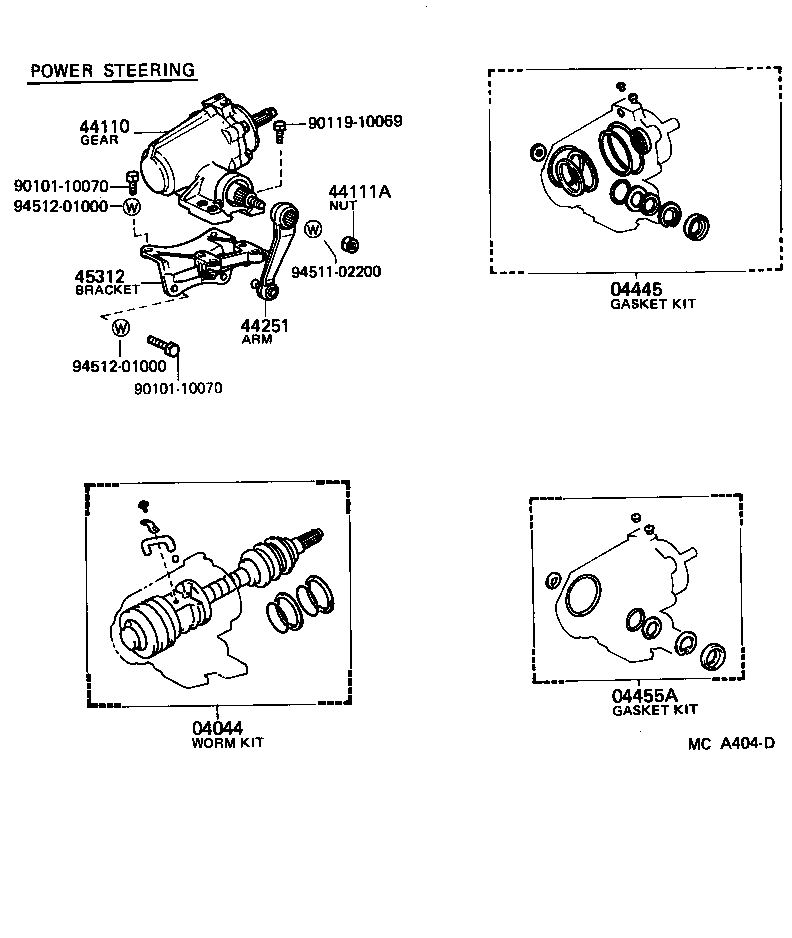

| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-35030 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-35020 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-35020 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-35031 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-35150 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-35100 |
LN65,RN6# |
1 | ||
| 45312-35110 |
LN65,RN6#..DLX,SR5 W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90101-10070 | ||||
| 90119-10069 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(8308-8508)LN65,RN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-35080 |
LN65,RN6# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN5#,6#,RN5#,6#,7#,VZN6# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-35050 |
LN65,RN6# |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-35080 |
LN65,RN6# |
1 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-35020 |
LN65,RN6# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39205 |
LN65,RN6# |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-35100 |
LN65,RN6# |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-55010 |
LN65,RN6# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-55010 |
LN65,RN6# |
2 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
LN65,RN6# |
2 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
LN65,RN6# |
2 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-35010 |
LN65,RN6# |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-45114 |
LN65,RN6# |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-25001 |
LN65,RN6# |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45612-35140 |
LN65,RN6# |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45601-35081 |
LN65,RN6# |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39035 |
LN5#,RN5#,60,65,7# |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
LN5#,65,RN5#,60,65,7# TIE ROD X DAMPER |
1 | ||
| 94182-10800 |
LN5#,65,RN5#,60,65,7# HOUSING X DAMPER |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
LN5#,65,RN5#,60,65,7# TIE ROD X DAMPER |
1 | ||
| 94182-10800 |
LN5#,65,RN5#,60,65,7# HOUSING X DAMPER |
1 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01001 |
LN5#,65,RN5#,60,65,7# |
2 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01001 |
LN5#,65,RN5#,60,65,7# |
2 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02003 |
LN5#,65,RN5#,60,65,7# OD=28 |
2 | ||
| 90948-02006 |
LN5#,65,RN5#,60,65,7# OD=26 |
1 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02003 |
LN5#,65,RN5#,60,65,7# OD=28 |
2 | ||
| 90948-02006 |
LN5#,65,RN5#,60,65,7# OD=26 |
1 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02003 |
LN5#,65,RN5#,60,65,7# OD=28 |
2 | ||
| 90948-02006 |
LN5#,65,RN5#,60,65,7# OD=26 |
1 | ||
| Common parts | ||||
| 91111-51045 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||
| 95381-03040 | ||||
| 96459-00609 | ||||
(8308-8508)LN65,RN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36041 |
LN65,RN6# |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LN65,RN6# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20003 |
LN65,RN6# |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
LN6#,RN6#..DLX,SDT,SR5,STD |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-35120 |
LN65,RN6# |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
LN65,RN6# |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
LN65,RN6# |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73061 |
LN65,RN6# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-35180 |
LN65,RN6# |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-35100 |
LN65,RN6# |
1 | ||
| 45312-35110 |
LN65,RN6#..DLX,SR5 W/POWER STEERING |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36020 |
LN65,RN6# |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-36030 |
LN65,RN6# T=0.072-0.088,T=0.08 |
1 | ||
| 45323-36010 |
LN65,RN6# T=0.045-0.055,T=0.05 |
1 | ||
| 45323-36020 |
LN65,RN6# T=0.065-0.075,T=0.07 |
1 | ||
| 45323-36050 |
LN65,RN6# T=0.185-0.215,T=0.20 |
1 | ||
| 45323-36040 |
LN65,RN6# T=0.092-0.108,T=0.10 |
1 | ||
| 45323-36060 |
LN65,RN6# T=0.485-0.515,T=0.50 |
1 | ||
| 45323-36070 |
LN65,RN6# T=0.055-0.065,T=0.06 |
1 | ||
| 45323-36080 |
LN65,RN6# T=0.082-0.098,T=0.09 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36020 |
LN65,RN6# |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-36010 |
LN65,RN6# |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36020 |
LN65,RN6# |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LN6#,RN6#..DLX,SDT,SR5,STD |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45354-36010 |
LN65,RN6# T=2.10,T=2.10 |
1 | ||
| 45356-36010 |
LN65,RN6# T=2.20,T=2.20 |
1 | ||
| 45355-36010 |
LN65,RN6# T=2.15,T=2.15 |
1 | ||
| 45353-36010 |
LN65,RN6# T=2.05,T=2.05 |
1 | ||
| 45352-36010 |
LN65,RN6# T=2.00,T=2.00 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36020 |
LN65,RN6# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
LN6#,RN6#..DLX,SDT,SR5,STD |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35130 |
LN65,RN6# |
1 | ||
| Common parts | ||||
| 90101-10070 | ||||
| 90119-10069 | ||||
| 90170-12161 | ||||
| 90949-01120 | ||||
| 91611-61022 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(8308-8408)LN65,RN6#..DLX,SR5 ; (8408-8508)LN65,RN6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

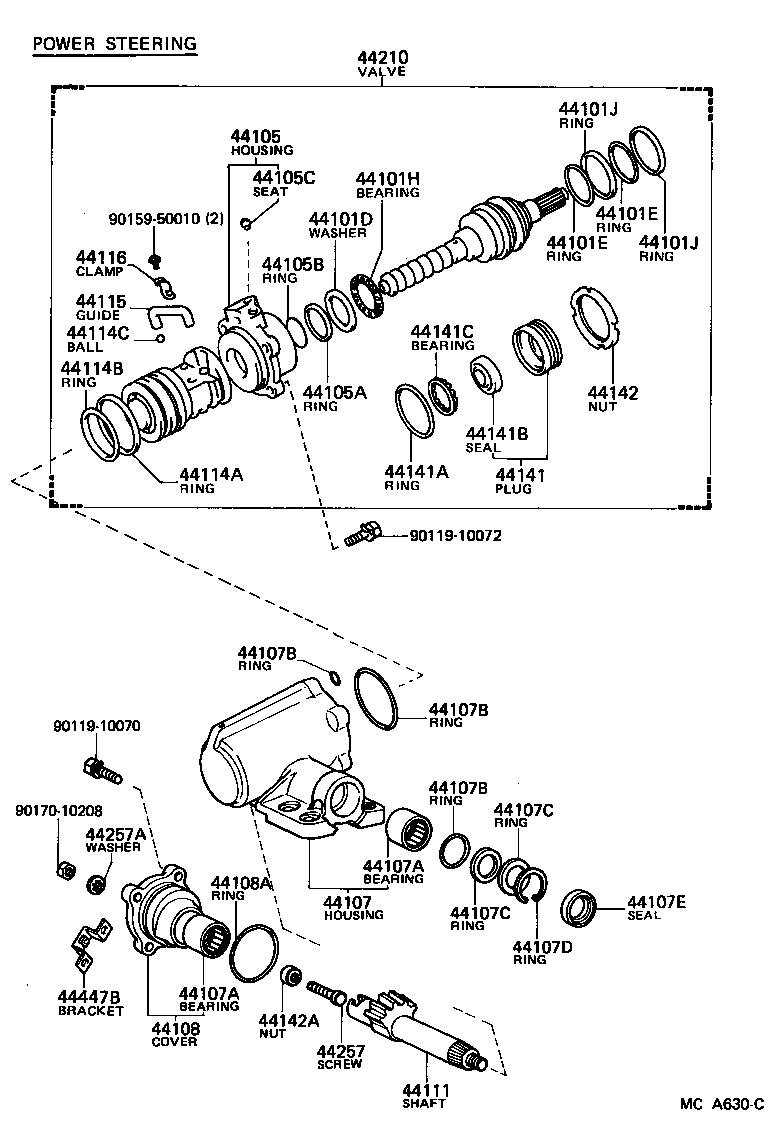

| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30060 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
LN65,RN6#..DLX,SR5 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-35010 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
LN65,RN6#..DLX,SR5 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
LN65,RN6#..DLX,SR5 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) ID=9.8,OD=13.6,OD=13 |
1 | ||
| 90301-65145 |
LN65,RN6#..DLX,SR5 ID=65.0,OD=70.0,OD=70 |
1 | ||
| 90301-35001 |
LN65,RN6#..DLX,SR5 OD=43.4,OD=43.4 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) ID=9.8,OD=13.6,OD=13 |
1 | ||
| 90301-65145 |
LN65,RN6#..DLX,SR5 ID=65.0,OD=70.0,OD=70 |
1 | ||
| 90301-35001 |
LN65,RN6#..DLX,SR5 OD=43.4,OD=43.4 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) ID=9.8,OD=13.6,OD=13 |
1 | ||
| 90301-65145 |
LN65,RN6#..DLX,SR5 ID=65.0,OD=70.0,OD=70 |
1 | ||
| 90301-35001 |
LN65,RN6#..DLX,SR5 OD=43.4,OD=43.4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31001 |
LN65,RN6#..DLX,SR5 OD=35.7,OD=35.7 |
1 | ||
| 90562-32001 |
LN65,RN6#..DLX,SR5 ID=32,OD=42,OD=42 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31001 |
LN65,RN6#..DLX,SR5 OD=35.7,OD=35.7 |
1 | ||
| 90562-32001 |
LN65,RN6#..DLX,SR5 ID=32,OD=42,OD=42 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32001 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60010 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-60020 |
LN65,RN6#..DLX,SR5 |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-60020 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
RN60..CND;RN60..SR5..IV;LN56,65,RN5#,65..(DLX,SR5)..HLF |
1 | ||
| 90369-22001 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-35031 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-60010 |
LN65,RN6#..DLX,SR5 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LN56,65,RN5#,6#..(4FC,5F)..(DLX,SR5) |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
