RN60L-MSA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )ST

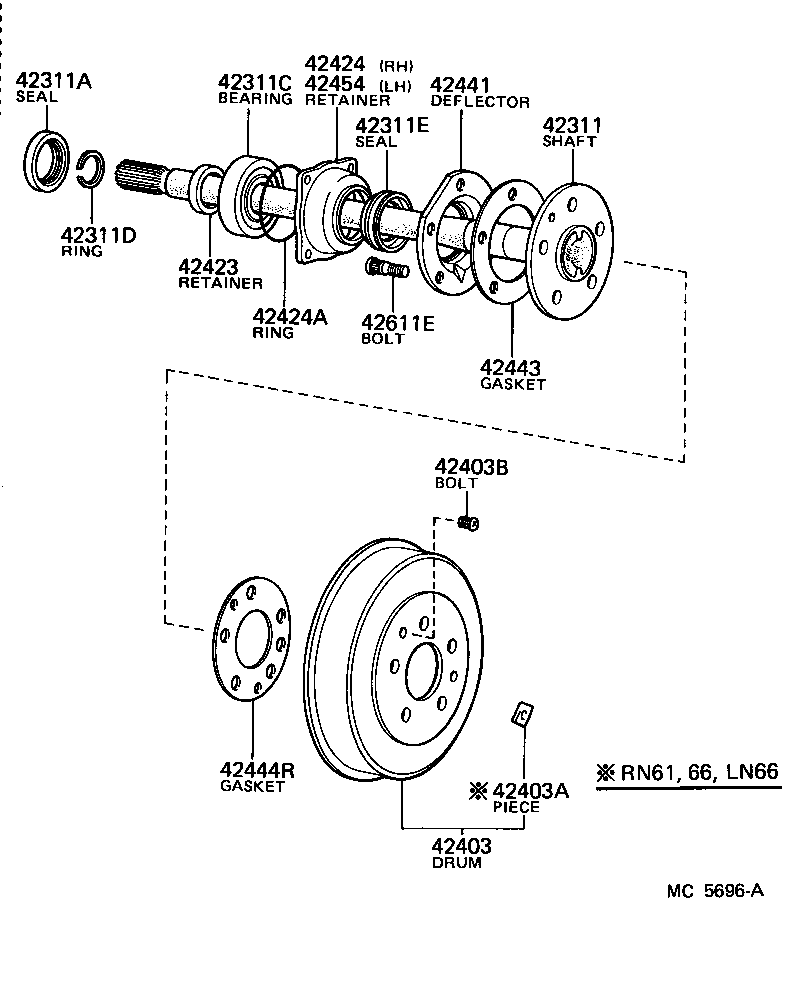

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403A 42403B 42423 42424 42424A 42441 42443 42444R 42454 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-35100

LN65,RN6#

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-50001

LN5#,6#,RN5#,6#,70,VZN6#..ST

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90363-40020

LN65,RN6#

 2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90520-36045

LN5#,6#,RN5#,6#,70,VZN6#..ST

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-48001

LN5#,6#,RN5#,6#,70,VZN6#..ST

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-35090

RN60..IV;LN65,RN65;RN60..V,WG;RN60..(DLX,STD)..HLF..CBU

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-20010

LN5#,6#,RN5#,6#,70,VZN6#..ST

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42421-35030

LN5#,6#,RN5#,6#,70,VZN6#..ST

 1
42424A - RING, O (FOR BEARING RETAINER SET)
90301-88077

LN5#,6#,RN5#,6#,70,VZN6#..ST

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-35020

LN6#,RN6#,VZN6#

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-55020

LN6#,RN6#,VZN6#

 2
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35040

LN65,RN6#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42421-35030

LN5#,6#,RN5#,6#,70,VZN6#..ST

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02034

LN65,RN6#

 12
