RN60L-MSA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)22R..3QT,HLF ; (8403-8408)22R..RN60..SR5..CND

Click highlighted areas on diagram

diagram 17303B 17650 17650D 2103 2103 2103 2103 2103 2103 2103 23262 23263 23265 23269 23275 9011906033 9041304009 9046400082 9046400102 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9165140612 9165140816
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140

22R..RN60..(V,WG)..USA

 1
17303-35140

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17303-35150

22R..RN5#,6#..3QT,HLF

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35170

22R..RN5#,6#,70

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050

22R..RN5#,6#,70

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

22R..RN5#,6#,70

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05035

22R..RN60..(V,WG)..USA

 2
25820-13020

22R..RN5#,6#..3QT,HLF

 1
90925-05035

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
23265 - FILTER, GAS, NO.1
90917-11024

22R..RN5#,6#..3QT,HLF

 1
90917-11022

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
90917-11022

22R..RN60..(V,WG)..USA

 1
23269 - UNION(FOR GAS FILTER)
90404-54031

22R..RN5#,6#..MTM..(3QT,HLF)

 1
90404-54031

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
90404-54031

22R..RN60..V,WG

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03104

22R..RN5#,6#..3QT,HLF

 1
Common parts
90119-06033
90413-04009
90464-00082
90464-00102
90999-92002
91651-40612
91651-40816
Linked diagrams
2103

(8308-8408)22R..RN55,6#..3QT,HLF..IV ; (8308-8408)22R..RN5#..STD..HLF..USA

Click highlighted areas on diagram

diagram 17303B 17650 17650D 2103 2103 2103 2103 2103 2103 2103 23262 23263 23263 23265 23269 25739 9011906033 9041304005 9041304009 9046400082 9046400102 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9165140612
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140

22R..RN60..(V,WG)..USA

 1
17303-35140

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17303-35150

22R..RN5#,6#..3QT,HLF

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35170

22R..RN5#,6#,70

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050

22R..RN5#,6#,70

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

22R..RN5#,6#,70

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05035

22R..RN60..(V,WG)..USA

 2
25820-13020

22R..RN5#,6#..3QT,HLF

 1
90925-05035

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05035

22R..RN60..(V,WG)..USA

 2
25820-13020

22R..RN5#,6#..3QT,HLF

 1
90925-05035

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
23265 - FILTER, GAS, NO.1
90917-11024

22R..RN5#,6#..3QT,HLF

 1
90917-11022

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
90917-11022

22R..RN60..(V,WG)..USA

 1
23269 - UNION(FOR GAS FILTER)
90404-54031

22R..RN5#,6#..MTM..(3QT,HLF)

 1
90404-54031

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
90404-54031

22R..RN60..V,WG

 1
25739 - SWITCH, VACUUM CONTROL
25739-35010

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
25739-35010

22R..RN60..(V,WG)..USA

 1
Common parts
90119-06033
90413-04005
90413-04009
90464-00082
90464-00102
90999-92002
91651-40612
Linked diagrams
2103

(8308-8408)22R..RN55,6#..3QT,HLF..IV ; (8308-8408)22R..RN5#..STD..HLF..USA

Click highlighted areas on diagram

diagram 17303B 17650 17650D 2103 2103 2103 2103 2103 2103 2103 23262 23263 23265 23269 23275 23285A 25709 25709A 25795 9000092002 9011906033 9041304004 9041304009 9046400082 9046400082 9046400102 9046400197 9046400215 9046400232 9046400232 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992004 9165140612 9165140814 9165140816 9541119930
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140

22R..RN60..(V,WG)..USA

 1
17303-35140

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17303-35150

22R..RN5#,6#..3QT,HLF

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35170

22R..RN5#,6#,70

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050

22R..RN5#,6#,70

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

22R..RN5#,6#,70

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05035

22R..RN60..(V,WG)..USA

 2
25820-13020

22R..RN5#,6#..3QT,HLF

 1
90925-05035

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
23265 - FILTER, GAS, NO.1
90917-11024

22R..RN5#,6#..3QT,HLF

 1
90917-11022

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
90917-11022

22R..RN60..(V,WG)..USA

 1
23269 - UNION(FOR GAS FILTER)
90404-54031

22R..RN5#,6#..MTM..(3QT,HLF)

 1
90404-54031

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
90404-54031

22R..RN60..V,WG

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03104

22R..RN5#,6#..3QT,HLF

 1
23285A - VALVE, CHECK, NO.1
90917-10049

22R..RN60..(V,WG)..USA

 1
90917-10049

22R..RN55,6#..(3QT,HLF)..IV

HIGH ALTITUDE SPEC

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-38010

22R..RN55,6#..(3QT,HLF)..IV

HIGH ALTITUDE SPEC

 1
25709-38010

22R..RN60..(V,WG)..USA

 1
25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE)
90461-10178

22R..RN55,6#..(3QT,HLF)..IV

HIGH ALTITUDE SPEC

 1
90461-10178

22R..RN60..(V,WG)..USA

 1
25795 - ELEMENT, ALTITUDE COMPENSATOR FILTER
25795-38010

22R..RN55,6#..(3QT,HLF)..IV

 1
25795-38010

22R..RN60..(V,WG)..USA

 1
Common parts
90000-92002
90119-06033
90413-04004
90413-04009
90464-00082
90464-00102
90464-00197
90464-00215
90464-00232
90999-92002
90999-92003
90999-92004
91651-40612
91651-40814
91651-40816
95411-19930
Linked diagrams
2103

(8308-8408)22R..RN55..HVY ; (8403-8408)22R..RN60..V,WG..USA

Click highlighted areas on diagram

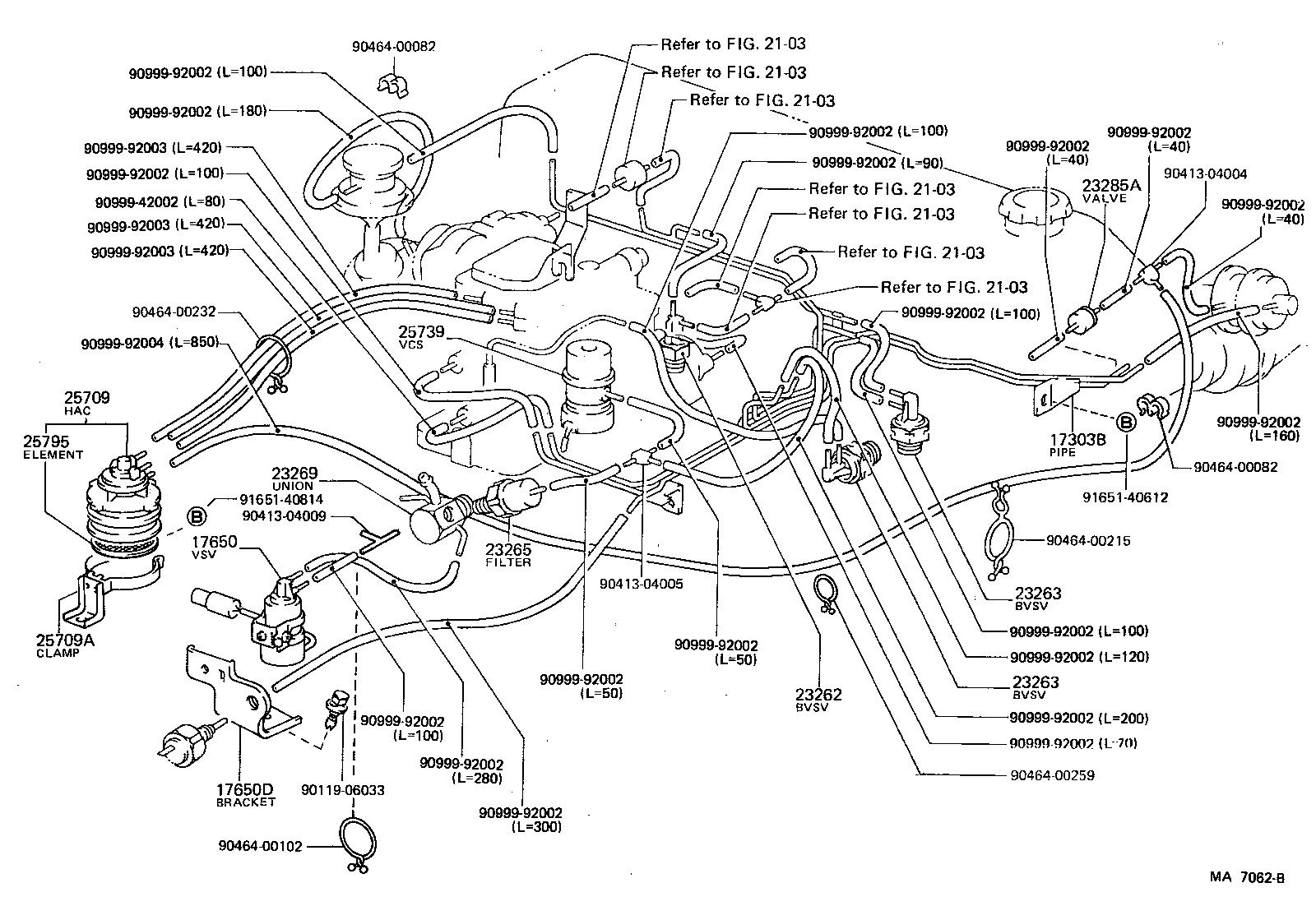

diagram 17303B 17650 17650D 2103 2103 2103 2103 2103 2103 2103 23262 23263 23263 23265 23269 23285A 25709 25709A 25739 25795 9011906033 9041304004 9041304005 9041304009 9046400082 9046400082 9046400102 9046400215 9046400232 9046400259 9099942002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992004 9165140612 9165140814
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-35140

22R..RN60..(V,WG)..USA

 1
17303-35140

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17303-35150

22R..RN5#,6#..3QT,HLF

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35170

22R..RN5#,6#,70

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35050

22R..RN5#,6#,70

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

22R..RN5#,6#,70

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05035

22R..RN60..(V,WG)..USA

 2
25820-13020

22R..RN5#,6#..3QT,HLF

 1
90925-05035

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05035

22R..RN60..(V,WG)..USA

 2
25820-13020

22R..RN5#,6#..3QT,HLF

 1
90925-05035

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
23265 - FILTER, GAS, NO.1
90917-11024

22R..RN5#,6#..3QT,HLF

 1
90917-11022

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
90917-11022

22R..RN60..(V,WG)..USA

 1
23269 - UNION(FOR GAS FILTER)
90404-54031

22R..RN5#,6#..MTM..(3QT,HLF)

 1
90404-54031

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
90404-54031

22R..RN60..V,WG

 1
23285A - VALVE, CHECK, NO.1
90917-10049

22R..RN60..(V,WG)..USA

 1
90917-10049

22R..RN55,6#..(3QT,HLF)..IV

HIGH ALTITUDE SPEC

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-38010

22R..RN55,6#..(3QT,HLF)..IV

HIGH ALTITUDE SPEC

 1
25709-38010

22R..RN60..(V,WG)..USA

 1
25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE)
90461-10178

22R..RN55,6#..(3QT,HLF)..IV

HIGH ALTITUDE SPEC

 1
90461-10178

22R..RN60..(V,WG)..USA

 1
25739 - SWITCH, VACUUM CONTROL
25739-35010

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
25739-35010

22R..RN60..(V,WG)..USA

 1
25795 - ELEMENT, ALTITUDE COMPENSATOR FILTER
25795-38010

22R..RN55,6#..(3QT,HLF)..IV

 1
25795-38010

22R..RN60..(V,WG)..USA

 1
Common parts
90119-06033
90413-04004
90413-04005
90413-04009
90464-00082
90464-00102
90464-00215
90464-00232
90464-00259
90999-42002
90999-92002
90999-92003
90999-92004
91651-40612
91651-40814
Linked diagrams
2103

(8308-8808)22R..USA

Click highlighted areas on diagram

diagram 04215
Part # Description Qty Price
04215 - COMPENSATOR KIT, HIGH ALTITUDE
04215-35080

22R..RN5#,6#..(3QT,HLF)..USA

 1

(8308- )22R#

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
