RN60L-MSA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)22R..3QT,HLF ; (8403-8408)22R..RN60..SR5..CND

Click highlighted areas on diagram

diagram 17341 17342 17342A 17342A 17350 17351 17352 17376 17378 17378 9010508018 9010508018 9017908146 9161140816 9165140816
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35011

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17341-35011

22R..RN60..(V,WG)..USA

 1
17341-35021

22R..RN5#,6#..3QT,HLF

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35040

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17342-35040

22R..RN60..(V,WG)..USA

 1
17342-35030

22R..RN5#,6#..3QT,HLF

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
90467-26001

22R..RN5#,6#..3QT,HLF

 2
90467-28003

22R..RN60..(V,WG)..USA

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
90467-26001

22R..RN5#,6#..3QT,HLF

 2
90467-28003

22R..RN60..(V,WG)..USA

 2
17350 - VALVE ASSY, REED
17350-35030

22R..RN5#,6#..3QT,HLF

 1
17351 - MANIFOLD, AIR INJECTION
17351-35020

22R..RN5#,6#..3QT,HLF

 1
17352 - MANIFOLD, AIR INJECTION, NO.2
17352-35040

22R..RN5#,6#..3QT,HLF

 1
17376 - GASKET, AIR TUBE, NO.1
17376-35010

22R..RN5#,6#..3QT,HLF

 1
17378 - GASKET AIR TUBE, NO.3
17378-37010

22R..RN5#,6#..3QT,HLF

 2
17378 - GASKET AIR TUBE, NO.3
17378-37010

22R..RN5#,6#..3QT,HLF

 2
Common parts
90105-08018
90179-08146
91611-40816
91651-40816

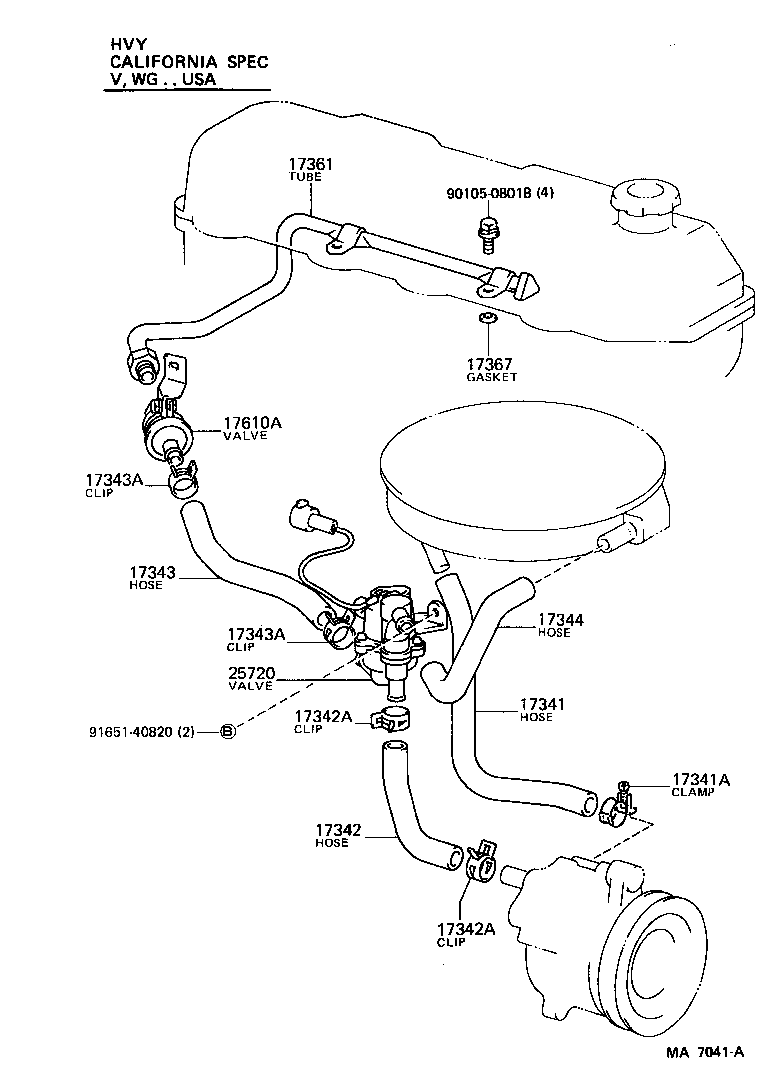

(8308-8408)22R..RN55..DLX..HVY ; (8308-8408)22R..RN55,6#..3QT,HLF..IV ; (8308-8408)

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17343A 17343A 17344 17361 17367 17610A 25720 9010508018 9165140820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35011

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17341-35011

22R..RN60..(V,WG)..USA

 1
17341-35021

22R..RN5#,6#..3QT,HLF

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
96111-10330

22R..RN60..(V,WG)..USA

 1
96111-10330

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35040

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17342-35040

22R..RN60..(V,WG)..USA

 1
17342-35030

22R..RN5#,6#..3QT,HLF

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
90467-26001

22R..RN5#,6#..3QT,HLF

 2
90467-28003

22R..RN60..(V,WG)..USA

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
90467-26001

22R..RN5#,6#..3QT,HLF

 2
90467-28003

22R..RN60..(V,WG)..USA

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35020

22R..RN60..(V,WG)..USA

 1
17343-35020

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-28003

22R..RN60..(V,WG)..USA

 2
90467-28003

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-28003

22R..RN60..(V,WG)..USA

 2
90467-28003

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-35011

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17344-35011

22R..RN60..(V,WG)..USA

 1
17361 - TUBE, AIR
17360-38020

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
17360-38020

22R..RN60..(V,WG)..USA

 1
17367 - GASKET, AIR TUBE
17376-38011

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 2
17376-38011

22R..RN60..(V,WG)..USA

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10028

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
90917-10028

22R..RN60..(V,WG)..USA

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-35010

22R..RN55,6#..(3QT,HLF)..IV

CALIFORNIA SPEC

 1
25720-35010

22R..RN60..(V,WG)..USA

 1
Common parts
90105-08018
91651-40820
