RN60L-MSA (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

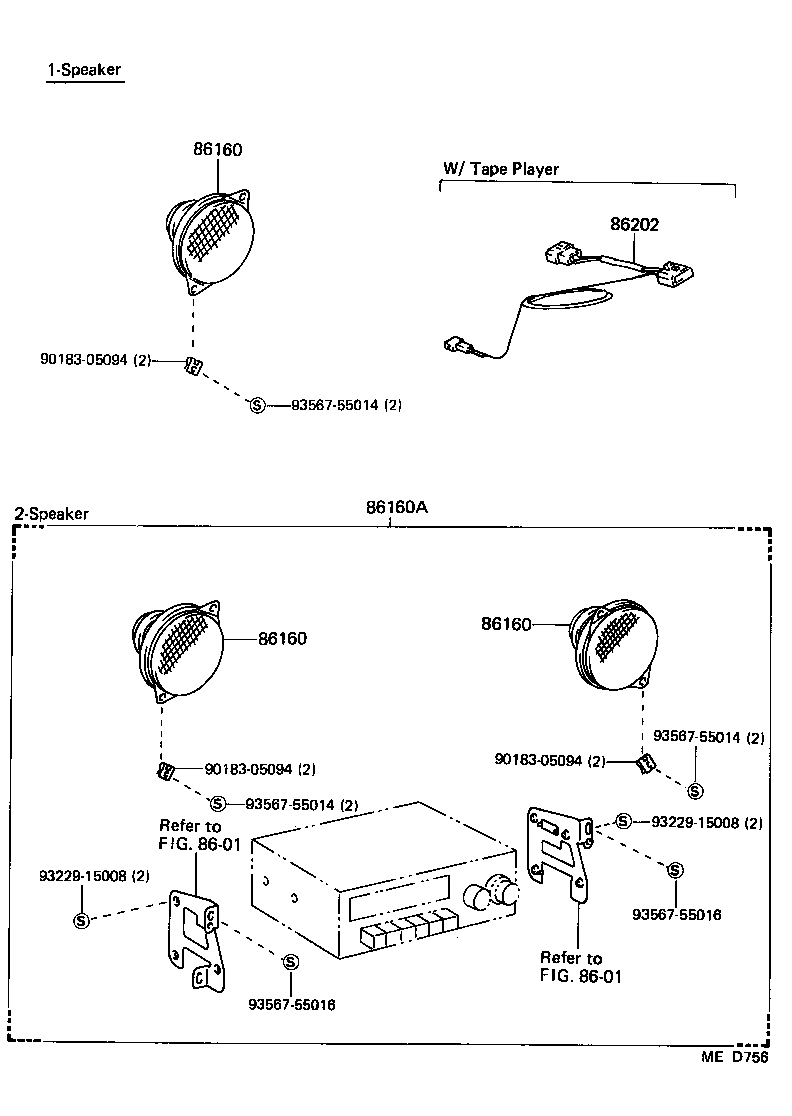

Click highlighted areas on diagram

diagram 8601 8601 86160 86160 86160 86160A 86202 9018305094 9018305094 9018305094 9322915008 9322915008 9356755014 9356755014 9356755014 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160A - SPEAKER SET, FRONT
86160-29675

LN5#,6#,RN5#,6#,7#

AM/FM MULTIPLEX OR TAPE PLAYER

 1
86202 - WIRE, SPEAKER, NO.1
86205-89101

LN56,65,RN5#,6#,75..RCB..(DLX,SR5)

W/3-SPEAKER

 1
Common parts
90183-05094
93229-15008
93567-55014
93567-55016
Linked diagrams
8601

(8308-8808)RCB..DLX,SR5 ; (8608-8808)RN61..HLF..TBO

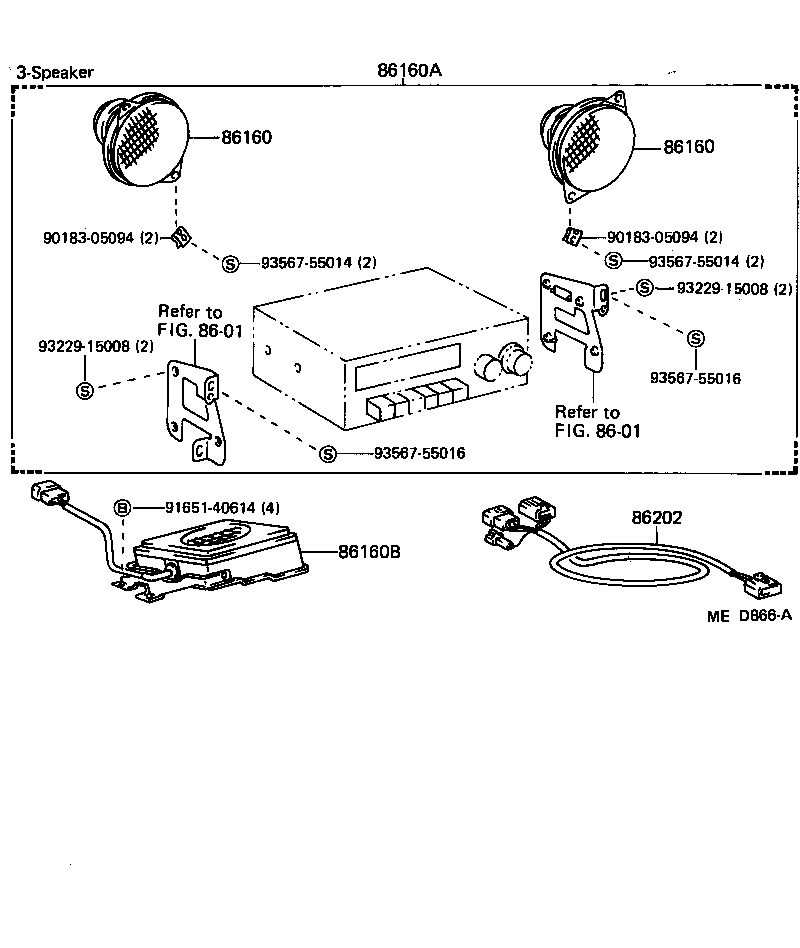

Click highlighted areas on diagram

diagram 8601 8601 86160 86160 86160A 86160B 86202 9018305094 9018305094 9165140614 9322915008 9322915008 9356755014 9356755014 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

LN5#,6#,RN5#,6#,7#,VZN6#

 2
86160A - SPEAKER SET, FRONT
86160-29675

LN5#,6#,RN5#,6#,7#

AM/FM MULTIPLEX OR TAPE PLAYER

 1
86160B - SPEAKER ASSY, REAR
86150-89101

LN56,65,RN5#,6#..RCB..(DLX,SR5)

W/3-SPEAKER(WOOFER)

 1
86202 - WIRE, SPEAKER, NO.1
86205-89101

LN56,65,RN5#,6#,75..RCB..(DLX,SR5)

W/3-SPEAKER

 1
Common parts
90183-05094
91651-40614
93229-15008
93567-55014
93567-55016
Linked diagrams
8601
