RN60L-MSA (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8903)

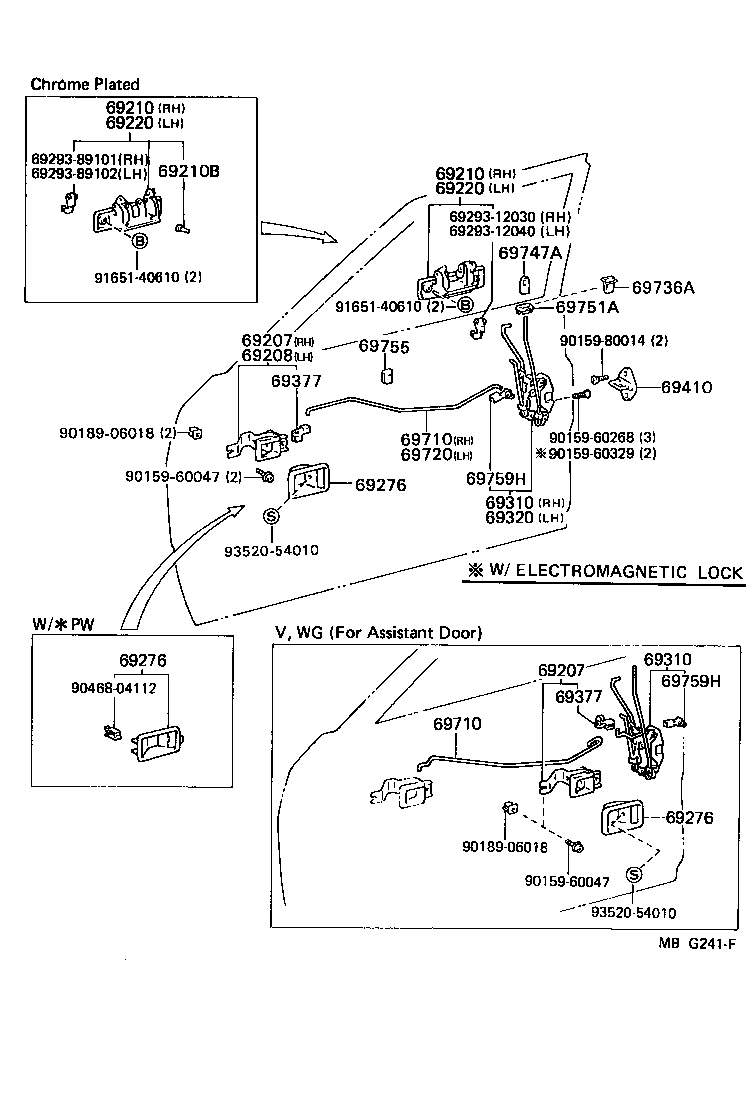

Click highlighted areas on diagram

diagram 69207 69207 69208 69210 69210 69210B 69220 69220 69276 69276 69276 6929312030 6929312040 6929389101 6929389102 69310 69310 69320 69377 69377 69410 69710 69710 69720 69736A 69747A 69751A 69755 69759H 69759H 9015960047 9015960047 9015960268 9015960329 9015980014 9018906018 9018906018 9046804112 9165140610 9165140610 9352054010 9352054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1207024

LN5#,6#,RN5#,6#,7#..T1

BLUE,BLUE,TRIM8#

 1
69205-1207023

LN5#,6#,RN5#,6#,7#..T1

GRAY,GRAY,TRIM1#

 1
69205-1207006

LN5#,6#,RN5#,6#,7#..T1

BROWN,BROWN,TRIM4#

 1
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1207024

LN5#,6#,RN5#,6#,7#..T1

BLUE,BLUE,TRIM8#

 1
69205-1207023

LN5#,6#,RN5#,6#,7#..T1

GRAY,GRAY,TRIM1#

 1
69205-1207006

LN5#,6#,RN5#,6#,7#..T1

BROWN,BROWN,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1207023

LN5#,6#,RN5#,6#,7#

GRAY,GRAY,TRIM1#

 1
69206-1207024

LN5#,6#,RN5#,6#,7#

BLUE,BLUE,TRIM8#

 1
69206-1207006

LN5#,6#,RN5#,6#,7#

BROWN,BROWN,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-89109

LN56,RN5#,6#,7#,VZN6#

CHROME PLATED

 1
69210-89108

LN5#,6#,RN5#,6#,7#,VZN6#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-89109

LN56,RN5#,6#,7#,VZN6#

CHROME PLATED

 1
69210-89108

LN5#,6#,RN5#,6#,7#,VZN6#

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-89108

LN5#,6#,RN5#,6#,7#,VZN6#

 1
69220-89109

LN56,RN5#,6#,7#,VZN6#

CHROME PLATED

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-89108

LN5#,6#,RN5#,6#,7#,VZN6#

 1
69220-89109

LN56,RN5#,6#,7#,VZN6#

CHROME PLATED

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-8910406

LN5#,65,RN5#,6#..T1

BROWN,BROWN,TRIM4#

 2
69277-8910404

LN5#,65,RN5#,6#..T1

BLUE,BLUE,TRIM8#

 2
69277-8910403

LN5#,65,RN5#,6#..T1

GRAY,GRAY,TRIM1#

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-8910406

LN5#,65,RN5#,6#..T1

BROWN,BROWN,TRIM4#

 2
69277-8910404

LN5#,65,RN5#,6#..T1

BLUE,BLUE,TRIM8#

 2
69277-8910403

LN5#,65,RN5#,6#..T1

GRAY,GRAY,TRIM1#

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-8910406

LN5#,65,RN5#,6#..T1

BROWN,BROWN,TRIM4#

 2
69277-8910404

LN5#,65,RN5#,6#..T1

BLUE,BLUE,TRIM8#

 2
69277-8910403

LN5#,65,RN5#,6#..T1

GRAY,GRAY,TRIM1#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-89109

LN5#,65,RN5#,6#..T1

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-89109

LN5#,65,RN5#,6#..T1

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-89109

LN5#,65,RN5#,60,65

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20060

LN5#,6#,RN5#,6#,7#,VZN6#..T1

RH

 1
69759-20070

LN5#,6#,RN5#,6#,7#,VZN6#..T1

LH

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20060

LN5#,6#,RN5#,6#,7#,VZN6#..T1

RH

 1
69759-20070

LN5#,6#,RN5#,6#,7#,VZN6#..T1

LH

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

LN5#,6#,RN5#,6#,7#,VZN6#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-89102

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-89102

LN5#,6#,RN5#,6#,7#,VZN6#..T1

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-89102

LN5#,6#,RN5#,6#,7#,VZN6#

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-22021

LN56,65,RN5#,6#..DLX,SR5

 2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3201026

LN5#,65,RN5#,6#

BROWN,BROWN,TRIM4#

 2
69741-3201014

LN5#,65,RN5#,6#

BLUE,BLUE,TRIM8#

 2
69741-3201033

LN5#,65,RN5#,6#

GRAY,GRAY,TRIM1#

 2
69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR)
69751-20040

LN56,6#,RN5#,6#,7#..DLX,SR5

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-89102

LN5#,6#,RN5#,6#,7#,VZN6#

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20110

LN5#,6#,RN5#,6#,7#

LH,BLACK

 1
69759-24020

LN5#,6#,RN5#,6#,7#

LH,BLUE

 1
69759-20040

LN5#,6#,RN5#,6#,7#

LH,YELLOW

 1
69759-20100

LN5#,6#,RN5#,6#,7#

RH,RED

 1
69759-24010

LN5#,6#,RN5#,6#,7#

RH,NATURAL

 1
69759-20050

LN5#,6#,RN5#,6#,7#

RH,BROWN

 1
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-20110

LN5#,6#,RN5#,6#,7#

LH,BLACK

 1
69759-24020

LN5#,6#,RN5#,6#,7#

LH,BLUE

 1
69759-20040

LN5#,6#,RN5#,6#,7#

LH,YELLOW

 1
69759-20100

LN5#,6#,RN5#,6#,7#

RH,RED

 1
69759-24010

LN5#,6#,RN5#,6#,7#

RH,NATURAL

 1
69759-20050

LN5#,6#,RN5#,6#,7#

RH,BROWN

 1
Common parts
69293-12030
69293-12040
69293-89101
69293-89102
90159-60047
90159-60268
90159-60329
90159-80014
90189-06018
90468-04112
91651-40610
93520-54010
