RN60L-MSA (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8903)

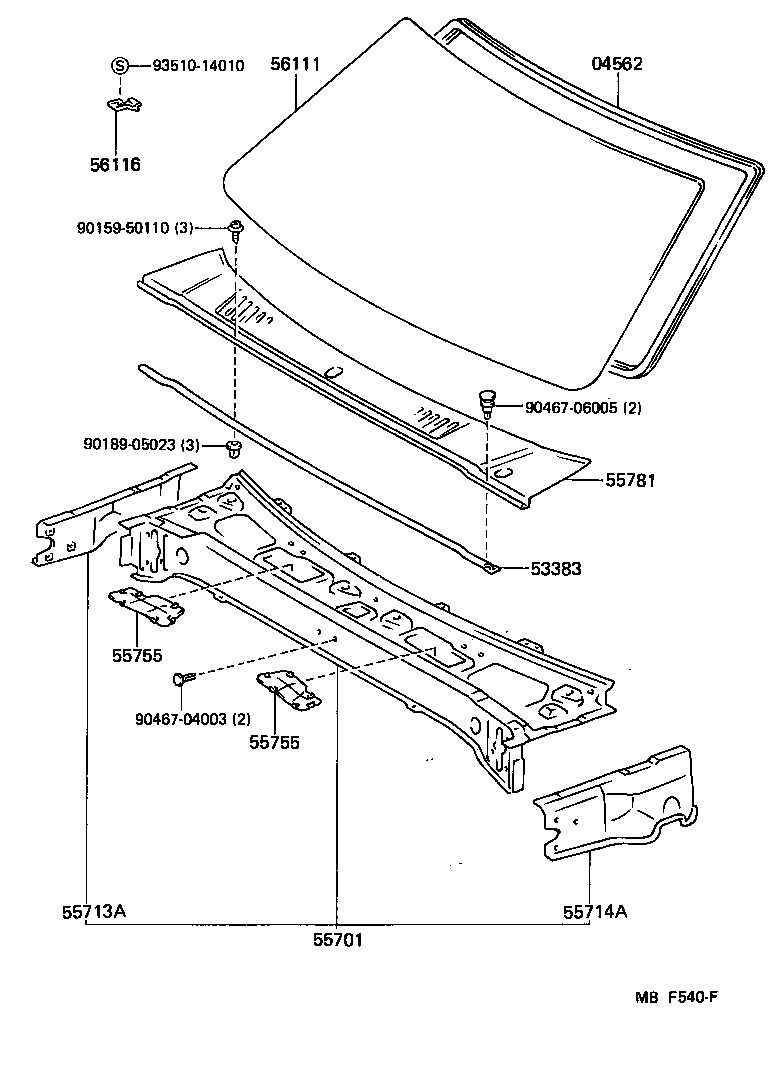

Click highlighted areas on diagram

diagram 04562 53383 55701 55713A 55714A 55755 55755 55781 56111 56116 9015950110 9018905023 9046704003 9046706005 9351014010
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-89101

LN5#,6#,RN5#,6#,7#,VZN6#

 1
53383 - SEAL, HOOD TO COWL TOP
53383-89105

LN5#,6#,RN5#,6#,7#,VZN6#

 1
55701 - PANEL SUB-ASSY, COWL
55700-89111

RN5#,6#..CBR

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-89104

LN5#,6#,RN5#,6#,7#,VZN6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-89105

LN5#,6#,RN5#,6#,7#,VZN6#

 1
55755 - SCREEN, HEATER AIR DUCT
55756-89104

LN56..USA..DSL;LN51,65,RN5#,6#..USA

COLD SPEC,RH

 1
55756-89105

LN56..USA..DSL;LN51,65,RN5#,6#..USA

COLD SPEC,LH

 1
55755 - SCREEN, HEATER AIR DUCT
55756-89104

LN56..USA..DSL;LN51,65,RN5#,6#..USA

COLD SPEC,RH

 1
55756-89105

LN56..USA..DSL;LN51,65,RN5#,6#..USA

COLD SPEC,LH

 1
55781 - LOUVER, COWL VENTILATOR
55781-89101

LN5#,6#,RN5#,6#,7#,VZN6#

 1
56111 - GLASS, WINDSHIELD
56111-89135

LN56,6#,RN5#,6#,7#,VZN6#..DLX,SDT,SR5,SRT

*TL,T=5.3,*TL,T=5.3,W/TOP SHADE

 1
56116 - SPACER, WINDSHIELD GLASS
56116-89101

LN5#,6#,RN5#,6#,7#,VZN6#

 2
Common parts
90159-50110
90189-05023
90467-04003
90467-06005
93510-14010
