RN60L-MSA (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8608)

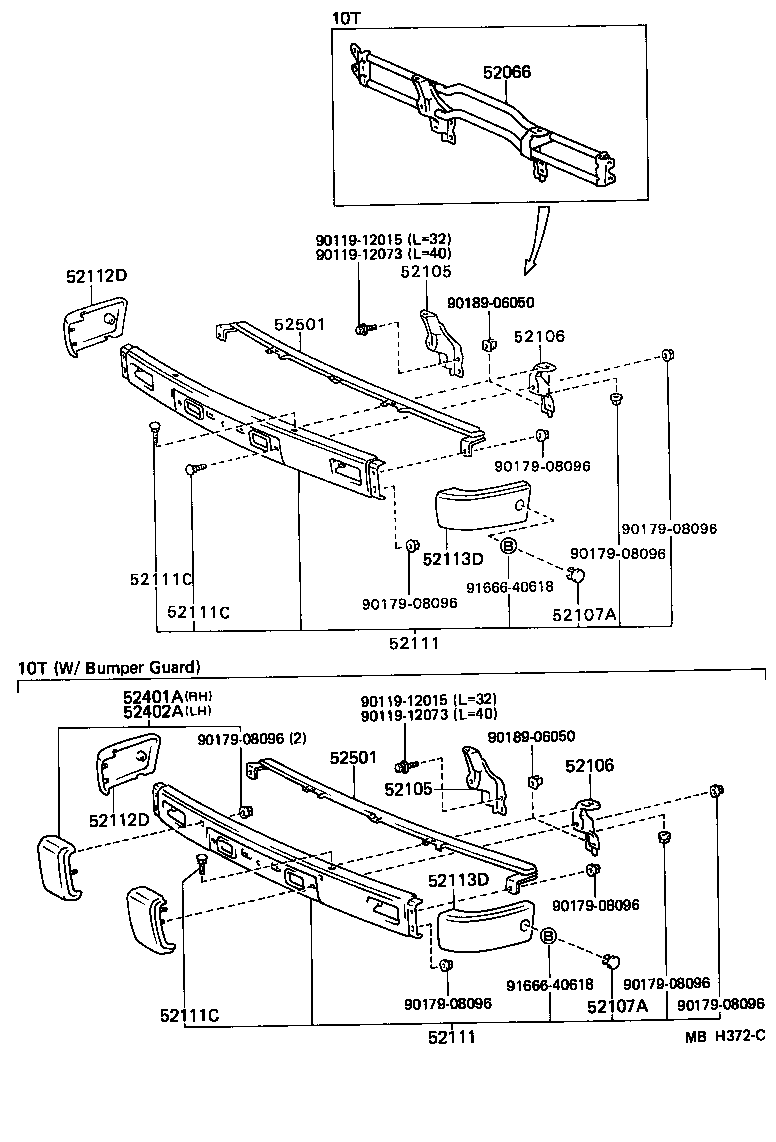

Click highlighted areas on diagram

diagram 52066 52105 52105 52106 52106 52107A 52107A 52111 52111 52111C 52111C 52111C 52112D 52112D 52113D 52113D 52401A 52402A 52501 52501 9011912015 9011912015 9011912073 9011912073 9017908096 9017908096 9017908096 9017908096 9017908096 9017908096 9017908096 9017908096 9017908096 9018906050 9018906050 9166640618 9166640618
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-89105

LN5#,65,RN5#,6#

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-89105

LN5#,65,RN5#,6#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-89105

LN5#,65,RN5#,6#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-89105

LN5#,65,RN5#,6#

 1
52107A - COVER, FRONT BUMPER ARM HOLE
52127-89101

LN5#,6#,RN5#,6#,7#

 2
52107A - COVER, FRONT BUMPER ARM HOLE
52127-89101

LN5#,6#,RN5#,6#,7#

 2
52111 - BUMPER ASSY, FRONT
52111-39545

LN65,RN6#..DLX,SR5

CHROME PLATED

 1
52111-39525

RN6#..SR5,SRT

 1
52111 - BUMPER ASSY, FRONT
52111-39545

LN65,RN6#..DLX,SR5

CHROME PLATED

 1
52111-39525

RN6#..SR5,SRT

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08050

LN6#,RN6#

 4
90112-08035

LN56,65,RN5#,6#..DLX,SR5,SRT

CHROME PLATED

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08050

LN6#,RN6#

 4
90112-08035

LN56,65,RN5#,6#..DLX,SR5,SRT

CHROME PLATED

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08050

LN6#,RN6#

 4
90112-08035

LN56,65,RN5#,6#..DLX,SR5,SRT

CHROME PLATED

 4
52112D - EXTENSION, FRONT BUMPER, RH
52102-89106

LN6#,RN6#,VZN6#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-89106

LN6#,RN6#,VZN6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-89106

LN6#,RN6#,VZN6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-89106

LN6#,RN6#,VZN6#

 1
52501 - FILLER SUB-ASSY, FRONT BUMPER
52501-89102

LN5#,65,RN5#,6#

 1
52501 - FILLER SUB-ASSY, FRONT BUMPER
52501-89102

LN5#,65,RN5#,6#

 1
Common parts
90119-12015
90119-12073
90179-08096
90189-06050
91666-40618
