RN60L-MSA (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)22R#

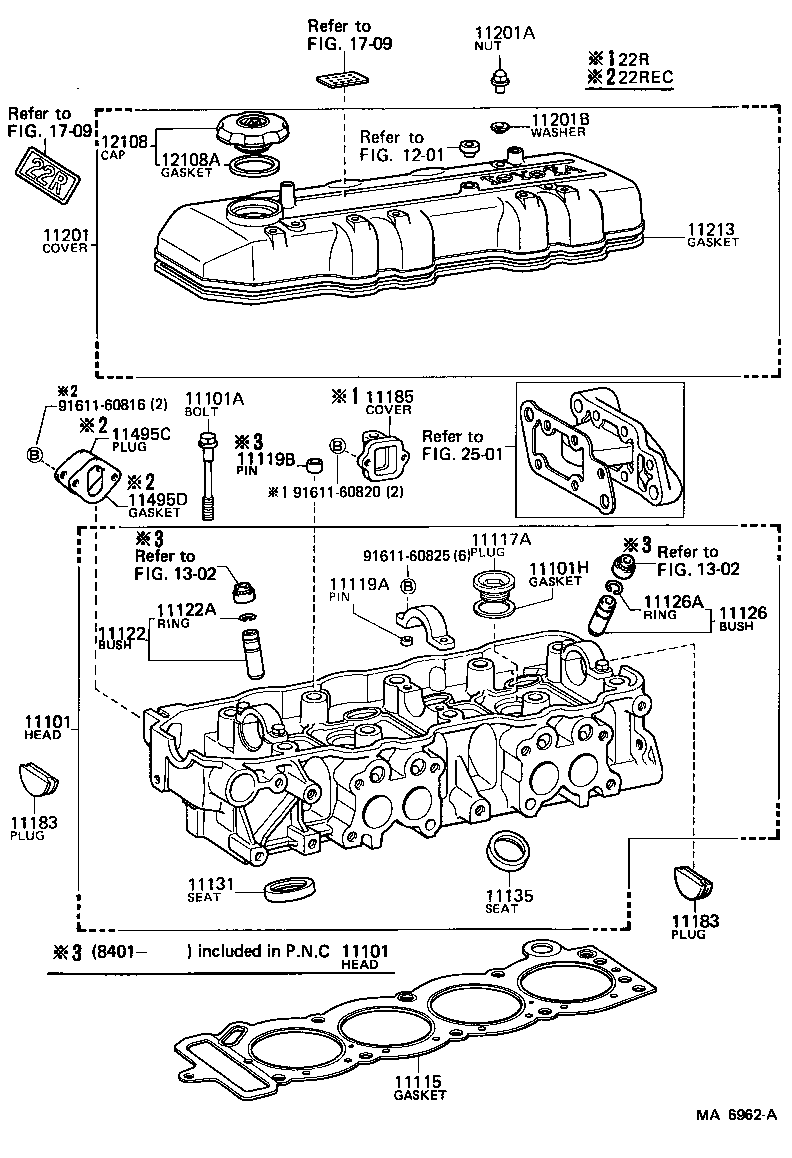

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11183 11183 11185 11201 11201A 11201B 11213 11495C 11495D 1201 12108 12108A 1302 1302 1709 1709 2501 9161160816 9161160820 9161160825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-35030

22R#..RN5#,6#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

22R#..RN5#,6#

*12-1.25PX166.5-21

 10
11115 - GASKET, CYLINDER HEAD
11115-35010

22R#..RN5#,6#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

22R#..RN5#,6#,7#

OD=32

 2
11119A - PIN, STRAIGHT, NO.1
90253-11021

22R#..RN5#,6#,7#

L=8,OD=11,L=8,OD=11

 6
11119B - PIN, STRAIGHT, NO.2
90253-16020

22R#..RN5#,6#,7#

L=16,OD=15.5,L=16,OD=15.5

 5
11122 - BUSH, INTAKE VALVE GUIDE
11122-38021

22R#..RN5#,6#

STD,STD

 4
11123-38021

22R#..RN5#,6#

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

22R#..RN5#,6#,7#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11123-38021

22R#..RN5#,6#,7#

O/S 0.05,O/S 0.05

 4
11122-38021

22R#..RN5#,6#,7#

STD,STD

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

22R#..RN5#,6#,7#

 4
11131 - SEAT, INTAKE VALVE
11132-35010

22R#..RN5#,6#,7#

O/S 0.03,O/S 0.03

 4
11131-35010

22R#..RN5#,6#,7#

STD,STD

 4
11135 - SEAT, EXHAUST VALVE
11135-35010

22R#..RN5#,6#,7#

STD,STD

 4
11136-35010

22R#..RN5#,6#,7#

O/S 0.03,O/S 0.03

 4
11183 - PLUG, SEMICIRCULAR
11183-38010

22R#..RN5#,6#,7#

 2
11183 - PLUG, SEMICIRCULAR
11183-38010

22R#..RN5#,6#,7#

 2
11185 - COVER, CYLINDER HEAD SIDE
11184-35010

22R..RN5#,6#,70

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39235

22R#..RN5#,6#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

22R#..RN5#,6#,7#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08002

22R#..RN5#,6#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-35010

22R#..RN5#,6#,7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

22R#..RN5#,6#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

22R#..RN5#,6#,7#

 1
Common parts
91611-60816
91611-60820
91611-60825
Linked diagrams
1201
1302
1709
2501
