RN60L-MSA (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1984
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

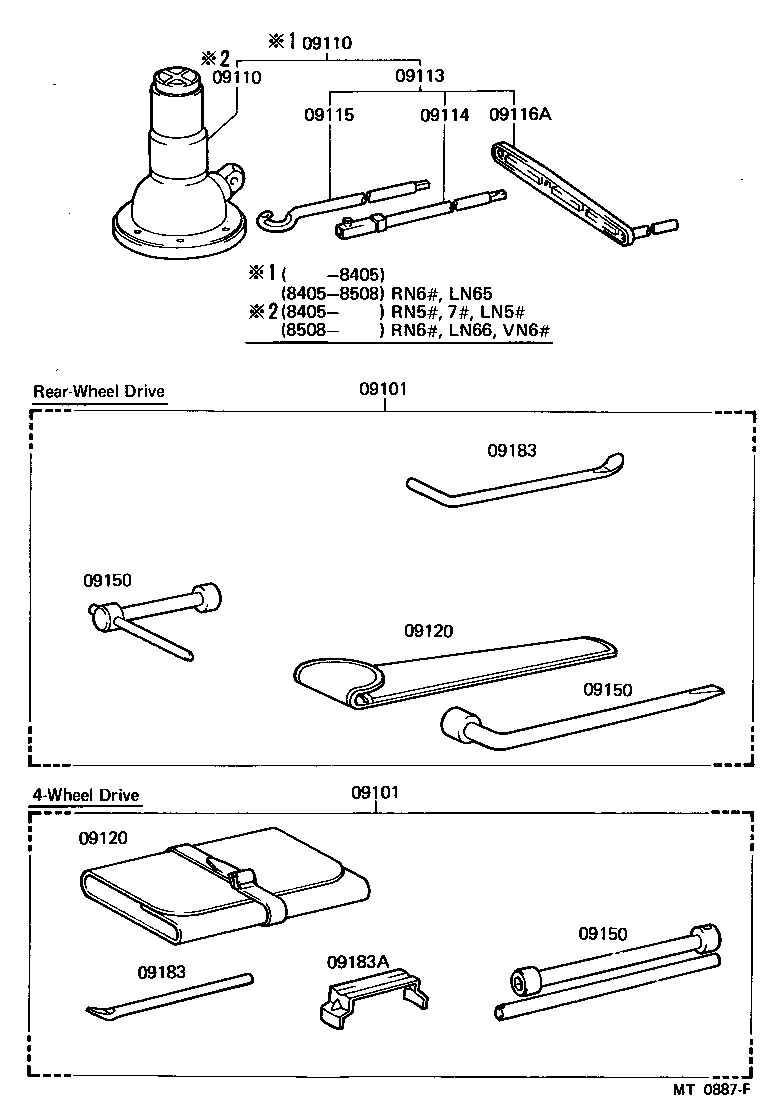

Click highlighted areas on diagram

diagram 09101 09101 09110 09110 09113 09114 09115 09116A 09120 09120 09150 09150 09150 09183 09183 09183A
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-35271

RN6#..SR5..HLF

 1
09101 - TOOL SET, STANDARD W/O JACK
09101-35271

RN6#..SR5..HLF

 1
09110 - JACK ASSY
09110-35121

LN65,RN6#

 1
09110 - JACK ASSY
09110-35121

LN65,RN6#

 1
09113 - HANDLE, JACK
09113-35110

LN65,RN6#

 1
09120 - BAG, TOOL
09120-35040

LN65,RN6#..HLF

 1
09120 - BAG, TOOL
09120-35040

LN65,RN6#..HLF

 1
09150 - WRENCH, HUB NUT BOX
09150-60010

LN6#,RN6#,VZN6#

 1
09150 - WRENCH, HUB NUT BOX
09150-60010

LN6#,RN6#,VZN6#

 1
09150 - WRENCH, HUB NUT BOX
09150-60010

LN6#,RN6#,VZN6#

 1
09183 - WRENCH, WHEEL CAP
09183-00030

LN6#,RN6#

 1
09183 - WRENCH, WHEEL CAP
09183-00030

LN6#,RN6#

 1
09183A - REPLACER, WHEEL CAP
09183-60010

RN6#..SR5

 1
