RN60L-MRA3 (1983)

Toyota 4-Runner Truck

Production Aug 1983 - Aug 1985
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

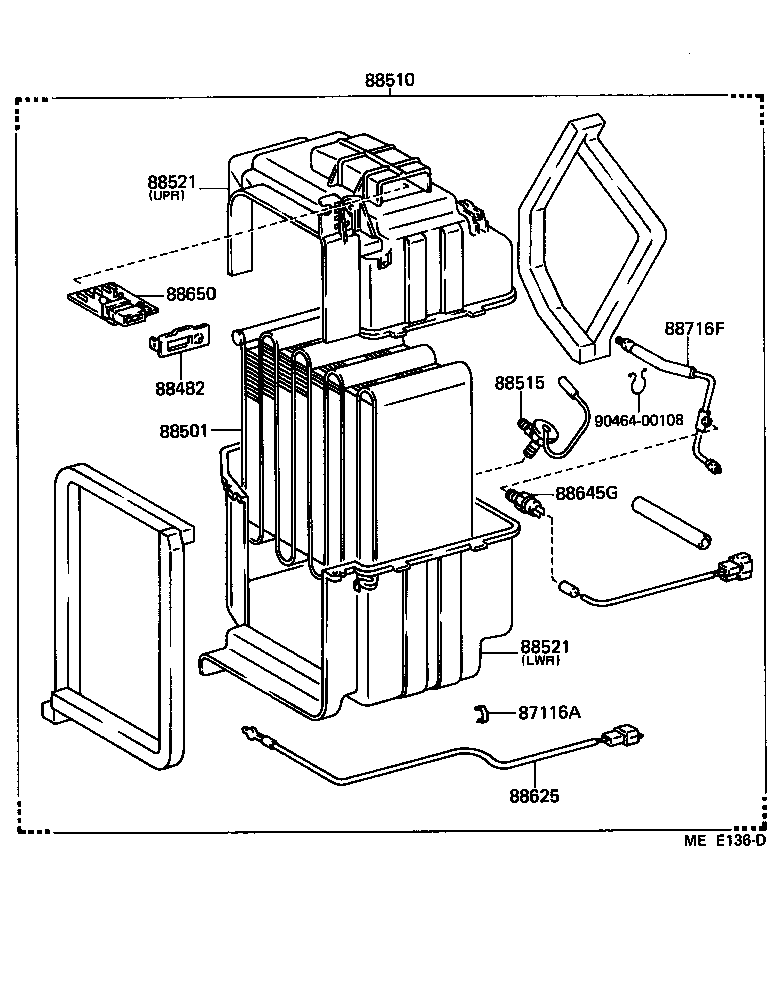

diagram 87116A 88482 88501 88510 88515 88521 88521 88625 88645G 88650 88716F 9046400108
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

LN56,6#,RN5#,6#,7#

 4
88482 - CAP, COOLER
88482-60010

LN56,6#,RN5#,6#,7#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-89106

LN56,6#,RN5#,6#,7#

 1
88510 - UNIT ASSY, COOLER
88510-89115

LN56,65,RN5#,6#

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

LN56,6#,RN5#,6#,7#

 1
88521 - CASE, COOLER UNIT
88521-89103

LN56,6#,RN5#,6#,7#

LOWER

 1
88521-89102

LN56,6#,RN5#,6#,7#

UPPER

 1
88521 - CASE, COOLER UNIT
88521-89103

LN56,6#,RN5#,6#,7#

LOWER

 1
88521-89102

LN56,6#,RN5#,6#,7#

UPPER

 1
88625 - THERMISTOR, COOLER, NO.1
88625-89101

LN56,6#,RN5#,6#,7#,VZN6#

 1
88645G - SWITCH, PRESSURE
88645-12020

LN56,6#,RN5#,6#,7#,VZN6#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20100

LN56,65,RN5#,6#

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-89146

LN56,6#,RN5#,6#,7#,VZN6#

 1
Common parts
90464-00108

(8308- )

Click highlighted areas on diagram

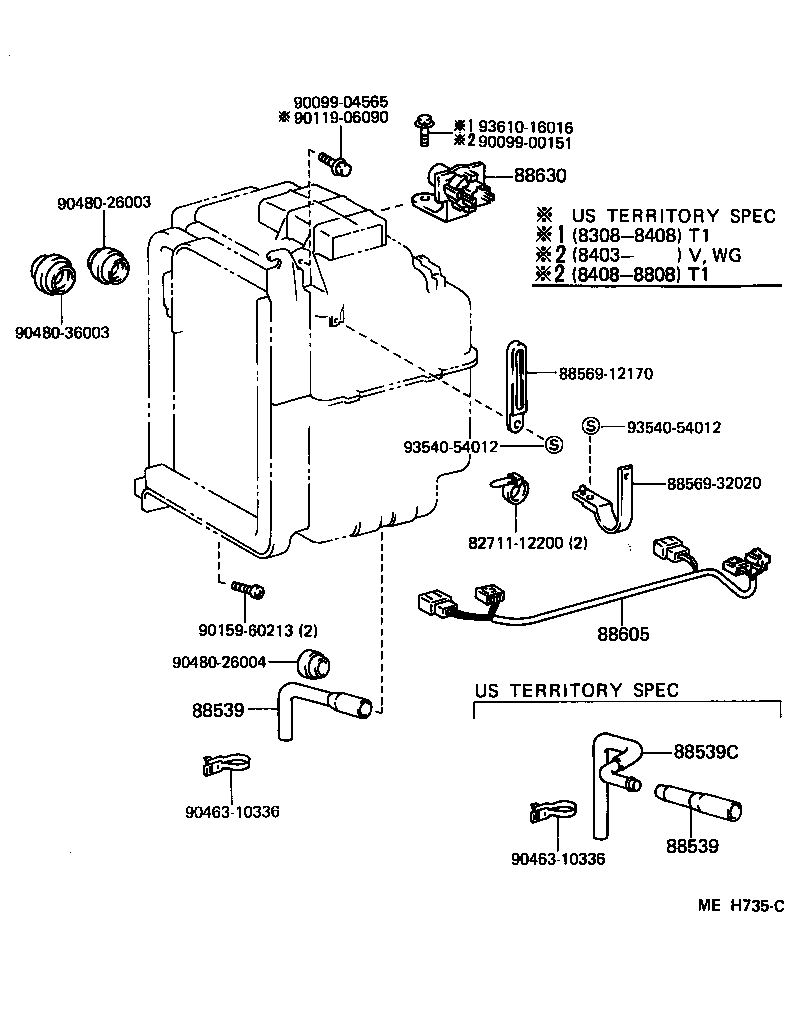

diagram 8271112200 88539 88539 88539C 8856912170 8856932020 88605 88630 9009900151 9009904565 9011906090 9015960213 9046310336 9046310336 9048026003 9048026004 9048036003 9354054012 9354054012 9361016016
Part # Description Qty Price
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89104

RN5#,6#

 1
88539-89106

LN56,6#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89104

RN5#,6#

 1
88539-89106

LN56,6#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-89112

RN5#,6#..T1..CBR

W/HEATER

 1
88605-89132

RN60..V,WG

 1
88630 - RELAY ASSY, COOLER
88630-60020

RN6#

 1
Common parts
82711-12200
88569-12170
88569-32020
90099-00151
90099-04565
90119-06090
90159-60213
90463-10336
90480-26003
90480-26004
90480-36003
93540-54012
93610-16016
